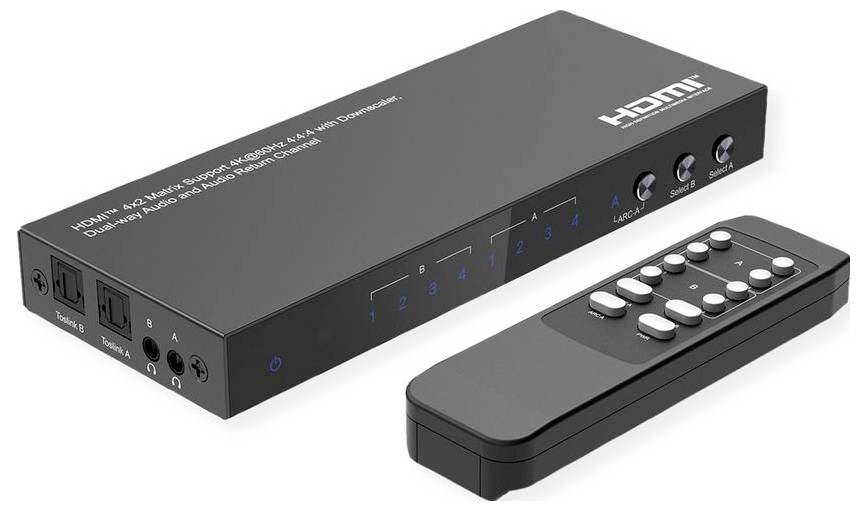

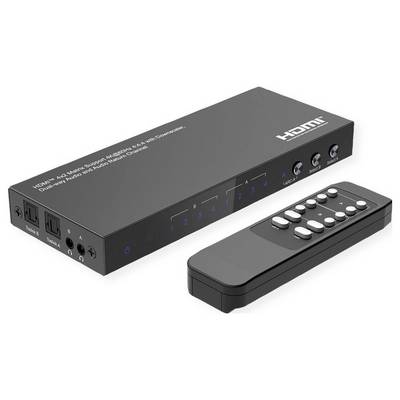

Value 4 x 2 ports HDMI matrix switcher + remote control
EAN:
Part number:
Item no:
VALUE 14.99.3591 matrix switch AV-matrix switch
Highlights & Details
- AV-Matrix switch, black
- Maximum resolution 3840 x 2160 pixel
- HDCP
- Number of HDMI input interfaces: 4 Number of HDMI output interfaces: 2
Technical specifications
- Product type: AV matrix switch
- Optical cable connector Toslink
- Product type
HDMI matrix switcher
- Supported monitors
2
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
Toslink
Audio stereo (3.5 mm jack)
- No. of inputs
4 x
- No. of outputs
2 x
- Switch function
Key
Remote control
- Distributor/switch features
+ remote control
- Factory colour
Black
- Width
171 mm
- Height
20 mm
- Depth
61 mm
- Weight
245 g
- Resolutions (max.)
UHD 4K @ 60 Hz
- Port
4 x 2 ports
- Cable design
Round
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- Cable use
C13/C14 appliances
- HDCP
Yes
- Power supply (details)
5 V
- UKCA
yes
- Operating temperature (T-T)
0 - 70 °C
- Remote control included
yes
- Extended display identification data (EDID)
yes
- HDMI input ports quantity
4
- HDMI output ports quantity
2
- Manual
yes
- Package weight
650 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629561 Value 4 x 2 ports HDMI matrix switcher + remote control
Description
With this VALUE MATRIX, video content from four connected HDMI sources can be output as desired on two different displays (monitors, projectors, etc.) with a resolution of up to 4K60Hz. The matrix has an LED-lamp on the front for a simple status monitoring and a wireless IR-control for a comfortable control from a distance. Ideal for connecting and switching multiple sources in data centers, help desks, video transmission facilities, and digital signage applications in retail environments.
