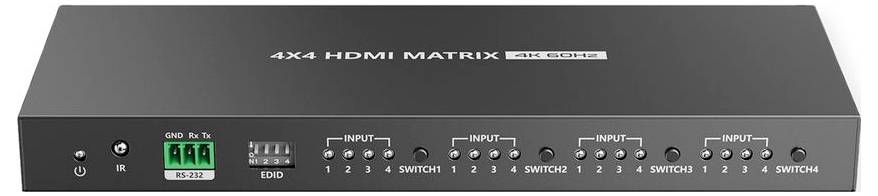

Value 4 x 4 ports HDMI matrix switcher + remote control
EAN:
Part number:
Item no:
VALUE 14.99.3593 matrix switch AV-matrix switch
Highlights & Details
- AV matrix switch 18 Gbit/s black
- Maximum resolution 4096 x 2160 pixel
- HDCP
- Number of HDMI input interfaces: 4 Number of HDMI output interfaces: 4
Technical specifications
- Product type: AV matrix switch
- Data transfer rate 18 Gbps
- Product type
HDMI matrix switcher
- Supported monitors
4
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
4 x
- No. of outputs
4 x
- Switch function
Remote control
- Distributor/switch features
+ remote control
- Factory colour
Black
- Width
210 mm
- Height
21 mm
- Depth
80 mm
- Weight
375 g
- Resolutions (max.)
UHD 4K @ 60 Hz
- Port
4 x 4 ports
- Cable design
Round
- Version
Cable
- Display resolution
4096 x 2160 Pixel
- Playback of
LPCM
- Cable use
C13/C14 appliances
- HDCP
Yes
- Power supply (details)
5 V
- UKCA
yes
- Operating temperature (T-T)
-20 - 60 °C
- Remote control included
yes
- Extended display identification data (EDID)
yes
- RS-232 ports
1
- HDMI input ports quantity
4
- HDMI output ports quantity
4
- Manual
yes
- Storage temperature (T-T)
-30 - 70 °C
- Package weight
700 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629563 Value 4 x 4 ports HDMI matrix switcher + remote control
Description
With this HDMI matrix with 4 inputs and 4 outputs, input signals can be output from up to 4 HDMI sources to up to 4 HDMI displays (monitor, projector, etc.) with a resolution of up to 4096 x 2160@60Hz. Any two of the four HDMI outputs support automatic down scaling. This matrix can be used in the areas of security surveillance, education, training, exhibitions, fairs, broadcasting, command central and many other applications can be used.
