Value KVM extender CAT 5 (RJ45) 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Value KVM extender
Highlights & Details
- A remote console can be connected to a PC or KVM switch
- Supports HDMI with HiRes resolution up to 1920x1080 (Full HD)
- Supports EDID pass-through
- An HDMI monitor can be connected to the transmitter (TX) unit
- On the receiving side (RX unit), a 3.5 mm port offers connection possibility for e.g. Speakers
- Sturdy metal housing
Technical specifications
- Product type
KVM extender
- No. of switchable PCs
1 pc(s)
- Video via
CAT 5 (RJ45)
- Video resolution
1920 x 1080 Pixel
- Audio headphones
Yes
- Audio microphone
No
- Ethernet ports
2
- Distributor/switch features
Steel casing
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
247.3
- Length
75 mm
- Width
85 mm
- Height
19 mm
- Dim
(L x W x H) 75 x 85 x 19 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2887999 Value KVM extender CAT 5 (RJ45) 1920 x 1080 Pixel
Description
KVM extension via a Cat. 6/6A cable for controlling a computer system up to 70 meters from the remote console (HDMI monitor, USB keyboard and USB mouse).
This text is machine translated.
This text is machine translated.
Features
- Max. Resolution (nominal): 1920 x 1080 @ 60Hz
- Dimensions: Each 19 x 85 x 75 mm
- Power supplies: 5VDC each, 2A

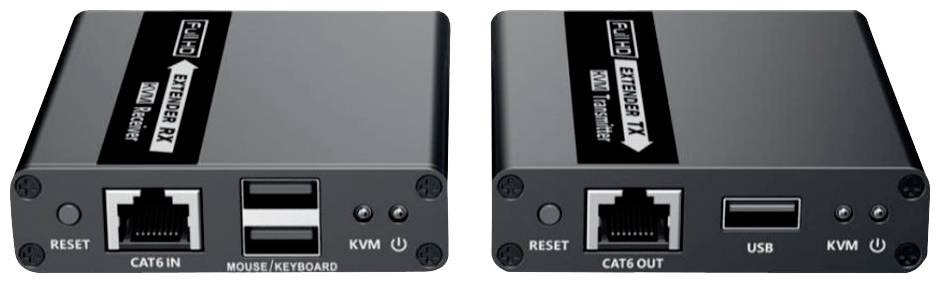

- Connections of the RX receiver unit (1x RJ-45 socket, 1x HDMI socket, 2x USB type A socket, 1x 3.5 mm audio socket)
- Connections of the TX transmitter unit (1x RJ-45 socket, 2x HDMI socket, 1x USB type A socket)
Scope of delivery
- Local unit, remote unit, 2 plug-in power supplies, manual
