Value KVM extender CAT 5 (RJ45), HDMI Keyboard 3840 x 2160 Pixel
EAN:
Part number:
Item no:

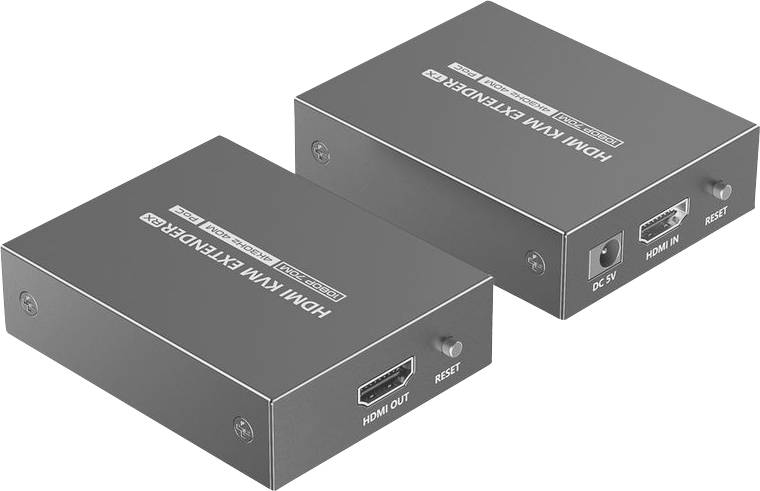

Value KVM extender
Highlights & Details
- Transmitter and Receiver
- Wired Maximum possible transmission distance: 70 m.
- Resolution (maximum, digital) 3840 x 2160 pixels
- Material: Metallic
- Transmitter video connection type: HDMI transmitter local keyboard/mouse connection type: USB
- Receiver local video connection type: HDMI receiver local keyboard/mouse connection type: USB
Technical specifications
- Product type
KVM extender
- No. of switchable PCs
1
- Video via
CAT 5 (RJ45)
HDMI
- Video resolution
3840 x 2160 Pixel
- Controller
Keyboard
- No. of USB 2.0 ports
2 x
- Distributor/switch features
Steel casing
- Power supply (LOV)
Power over Ethernet (PoE)
- Factory colour
Black
- Weight
0.5
- Length
75 mm
- Width
60 mm
- Height
20 mm
- Dim
(L x W x H) 75 x 60 x 20 mm
- Cable design
Round
- Version
Cable
- Frame rate
60 Hz
- Cable use
C13/C14 appliances
- Material
Metal
- Type
Transmitter and Receiver
- Supported monitors
1
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
-20 - 60 °C
- AC adapter included
yes
- RJ-45 ports quantity (receiver)
1
- RJ-45 ports quantity (transmitter)
1
- Mounting bracket(s) included
yes
- RS-232 ports
1
- Manual
yes
- Receiver depth
7.5 cm
- Receiver height
7.5 cm
- Receiver width
6 cm
- Transmitter depth
7.5 cm
- Transmitter height
7.5 cm
- Transmitter width
6 cm
- Receiver USB Type-A ports quantity
1
- Receiver weight
123 g
- Maximum digital resolution
3840 x 2160 p
- Storage temperature (T-T)
-30 - 70 °C
- Package weight
500 g
- Plug and Play
yes
- Transmitter weight
123 g
- Maximum transfer distance
70 m
- AC adapter output current
2 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629542 Value KVM extender CAT 5 (RJ45), HDMI Keyboard 3840 x 2160 Pixel
Description
KVM extension via a Cat. 6/6A/7 cable to up to 40 meters from the remote console (HDMI monitor, USB keyboard and USB mouse) with HDMI 4K@30 Hz (up to 70 m at 1080p at 60Hz). Ideal for advertising, surveillance systems, conferences, as well as home entertainment and much more.
