Value Network media converter 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:

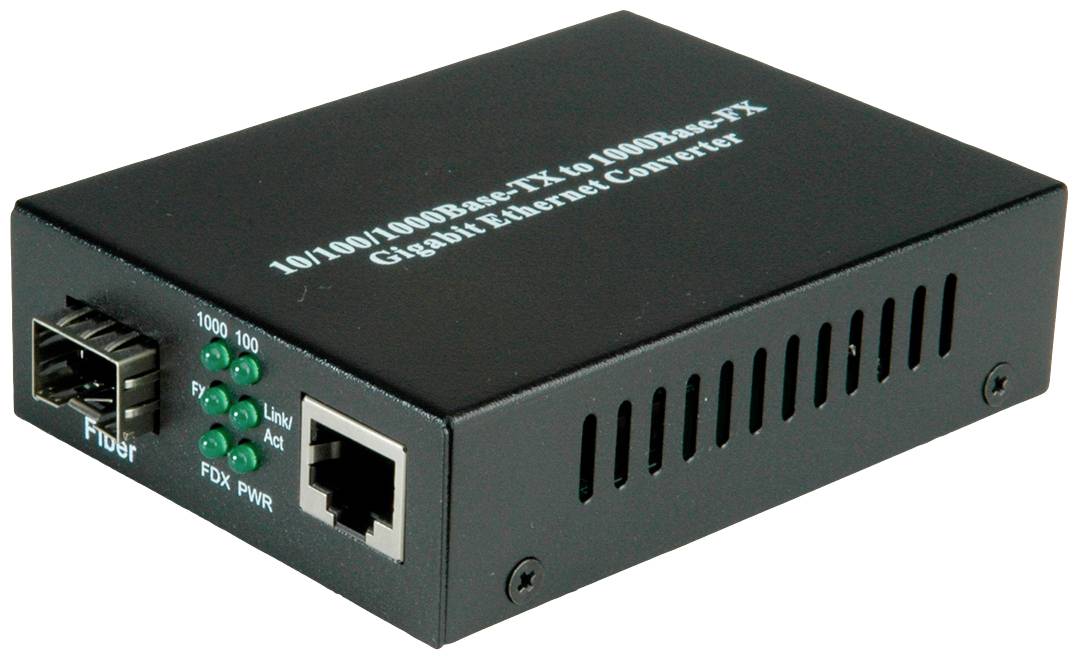

VALUE Gigabit Ethernet converter, RJ-45 - SFP
Highlights & Details
- Connection TP-side: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3z 1000Base-TX: Shielded RJ-45 socket
- Supports Auto MDI/MDI-X detection, auto negotiation for speed as well as automatic duplex detection for 10/100Mbit/s (full or half-duplex)
- Connection FO side: SFP slot for recording a miniGBIC for 1000Base-FX
- LEDs for TP data rates, fiber optic data rate, FX and TX link/activity, Power status
- Ambient: Operating temperature 0 - 65° C; 5 - 90% non-condensing
- Dimensions (WxDxH) 71 x 94 x 26 mm
- The power is supplied via an external power supply unit (5V DC) included in the delivery; power consumption below 3W
Technical specifications
- Product type
Network media converter
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
71 mm
- Height
26 mm
- Depth
94 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
0.32
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017775 Value Network media converter 10 / 100 / 1000 MBit/s
Description
Converter for converting a 10/100/1000 Mbit/s TP-port to gigabit Ethernet glass fiber - single mode or multi-mode, depending upon the SFP used.
This text is machine translated.
This text is machine translated.
Features
- Manufacturer: VALUE
- Product group: Network converter
- Product type: Network Media Converter
- Colour, black
- Scope of delivery: Converter, manual, power supply unit (5 VDC)
- RJ-45 port (Mbps) 10/100/1000
- Fiber Port (Mbps): 1000
- Number of ports RJ-45: 1
- Number of ports Fiber LC: 1
- Converted from/to: RJ-45/LC
- Min. Operating temperature 0 °C
- Max. operating temperature: 65 °C
- Height: 26 mm
- Width 71 mm
- Depth: 94 mm
- Weight 160 g
- Packaging height 90 mm
- Package width 80 mm
- Packaging depth 120 mm
- Package weight: 0.32 kg
Scope of delivery
- Converter, manual, mains adaptor (5 VDC)
