Value PC Adapter [1x USB-C® plug - 10x DisplayPort socket, VGA socket, HDMI socket, RJ45 socket, SD Card slot, Jack sock
EAN:
Part number:
Item no:

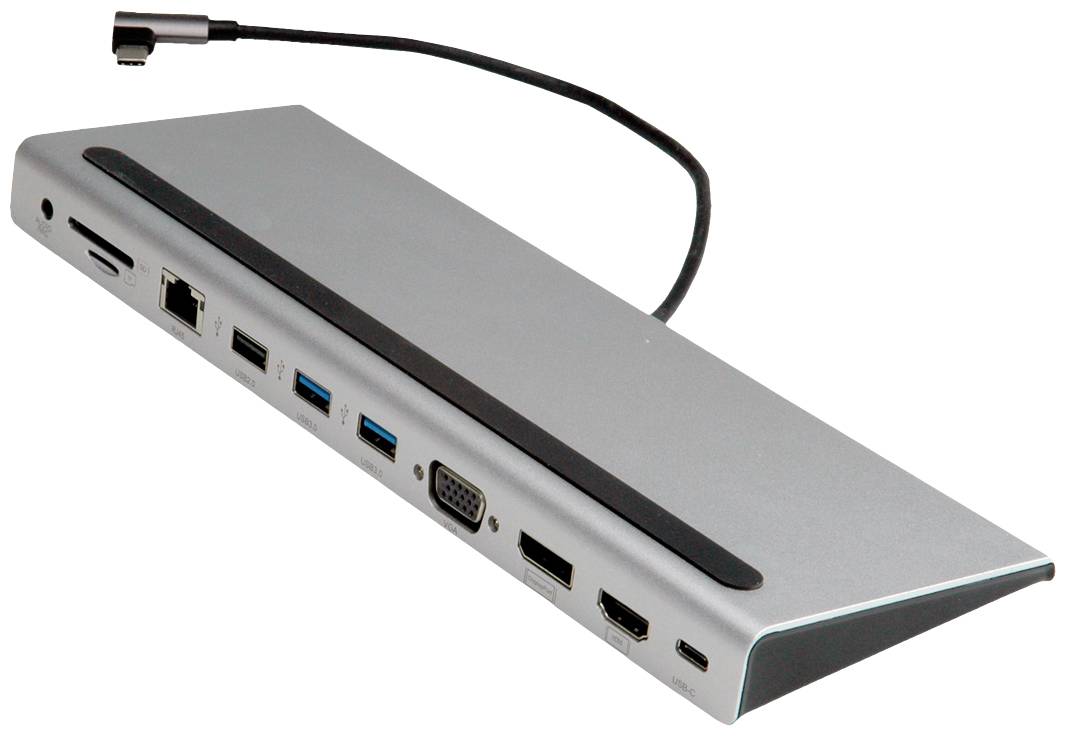

VALUE USB 3.2 Gen 2 Type C Multiport Docking Station, 4K HDMI/DP, VGA, USB, Card
Technical specifications
- Material: Aluminium
- Product type
PC Adapter
- Connection type
USB-C®
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
10 x
- Type B
DisplayPort socket
VGA socket
HDMI socket
RJ45 socket
SD Card slot
Jack socket 3.5 mm
USB 3.2 1st Gen port A (USB 3.0)
USB-C® socket (Power Delivery)
- Cable length
0 mm
- Factory colour
Grey
- Connector version
90-degree
- Cable use
PC
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Transfer rate (max.)
5 GBit/s
- Video transmission possible
Yes
- Compatible with Apple devices
MacBook
- Weight
0.2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2558358 Value PC Adapter [1x USB-C® plug - 10x DisplayPort socket, VGA socket, HDMI socket, RJ45 socket, SD Card slot, Jack sock
Description
The USB-type-C docking station with three video connections provides your MacBook, Ultrabook, notebook or laptop with a 4K-enabled HDMI/Mini DisplayPort connection each, as well as a VGA connection, 3x USB 3.0 / USB 3.2 Gen 1, 1x SD/MicroSD card reader, 1x USB-type-C PD (power delivery), 1x Gigabit Ethernet and a 3.5 mm audio port! Plug & Play aluminum casing in Space-Gray with removable, right-angled USB-C cable, which fits perfectly in the USB-C connection of your laptop. Multi-port docking station for maximum connectivity, enables the extension of a display or the mirroring on up to two monitors, television or beamer simultaneously. Max. Resolution: 3840x2160 at 30Hz compact and slim design - Notebooks can be positioned diagonally on the docking station to make typing easier and healthier. Anti-slip surface on both sides to protect your device System requirements: Windows 7/8/10 or MacOS X10.2 and higher Connection to the mobile device: 1x USB 3.1 / USB 3.2 Gen 2 Type C ST Connections for peripherals: 1x HDMI 4K Video output: Mirror or extend your screen to a TV, monitor or projector. 1x DP BU 1x VGA BU 2x USB 3.0 / USB 3.2 Gen 1 type A ports (data transfer rate up to 5Gbit/s) / 1x USB2.0 type A (max. 480Mbit/s), for connection of keyboard/mouse, USB HDD/SSD, etc. 1x card reader for SD/MicroSD 1x type C PD (power delivery) 1x RJ45 BU for Gigabit Ethernet 1x 3.5mm audio connection Note: Support of "Alternate Mode" provided Note: According to the current specifications of the USB.org we have adapted the technical data of our USB 3 products. The new labeling for the USB specifications already known to you has been changed to USB 3.2 Gen 1 (formerly USB 3.0 or USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 or USB 3.1 Gen 2).
