Value Server PSU 500 W 80 PLUS
EAN:
Part number:
Item no:

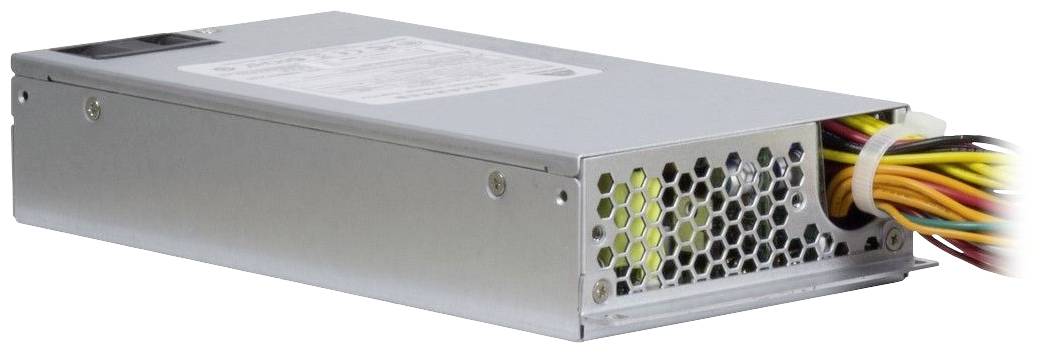

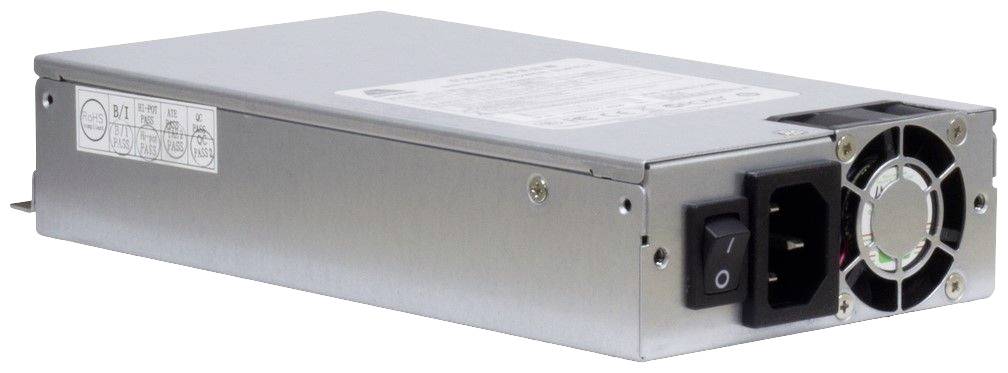

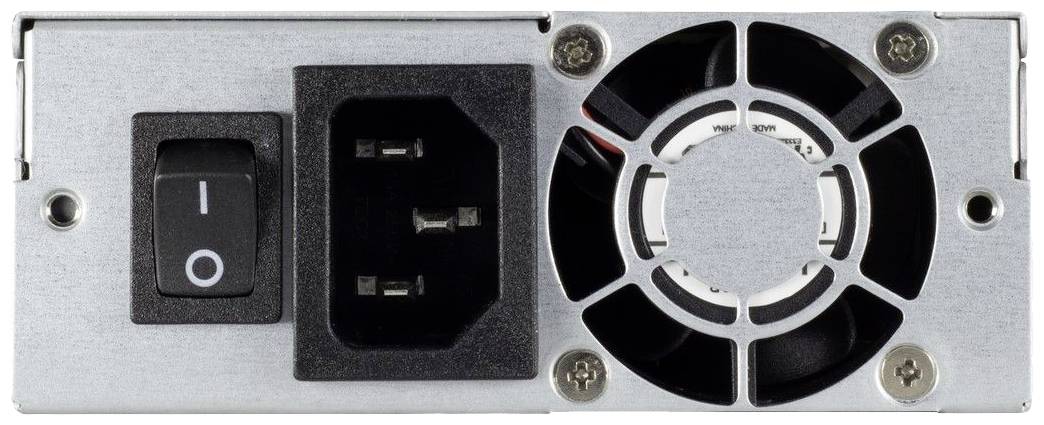

Inter-Tech APOWER U1A-C20500-D power supply 500 W 20+4 pin ATX stainless steel
Highlights & Details
- PSU output 500 W
- PCI Express (6+2-pin) x
- Cable management 80 PLUS
Technical specifications
- Power rating
0 - 500 W
- PSU output power
500 W
- Product type
Server PSU
- 3.3V DC
25 A
- 5 V DC
25 A
- +12 V/DC (1)
40 A
- Certification
80 PLUS
- -12V / DC
1 A
- -5V DC
0.3 A
- +5V / DC SB
3 A
- 20+4-pin.
4
- 4-pin floppy
1
- 4-pin Molex
4
- 5-pin SATA
2
- Dim
(W x H x D) 100 x 40 x 205 mm
- Weight
1.33 kg
- 24-pin
1
- 8-pin 12 V
1
- Output rating > 500 W
500 W
- Width
100 mm
- Height
40 mm
- Depth
205 mm
- Factory colour
Stainless steel
- Design height
40 mm
- Fan size
40 mm
- Power supply (details)
115 - 230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2895959 Value Server PSU 500 W 80 PLUS
Description
High quality, 500 watts strong, server power supply with up to 92% efficiency.
This text is machine translated.
This text is machine translated.
Features
- Total power 500 W.
- AC input voltage 115 - 230 V
- Efficiency: 92%. Motherboard connector plug 20+4 pin ATX Purpose: Server
- Average operating time between failures (MTBF): 100000 h. Product color: Stainless steel
- Fan diameter 4 cm
- Number of fans: 1 fans. Width 100 mm
- Depth: 205 mm
- Height: 40 mm
