Value USB-C® docking station Compatible with (brand): Universal Built-in card reader, USB-C® powered
EAN:
Part number:
Item no:

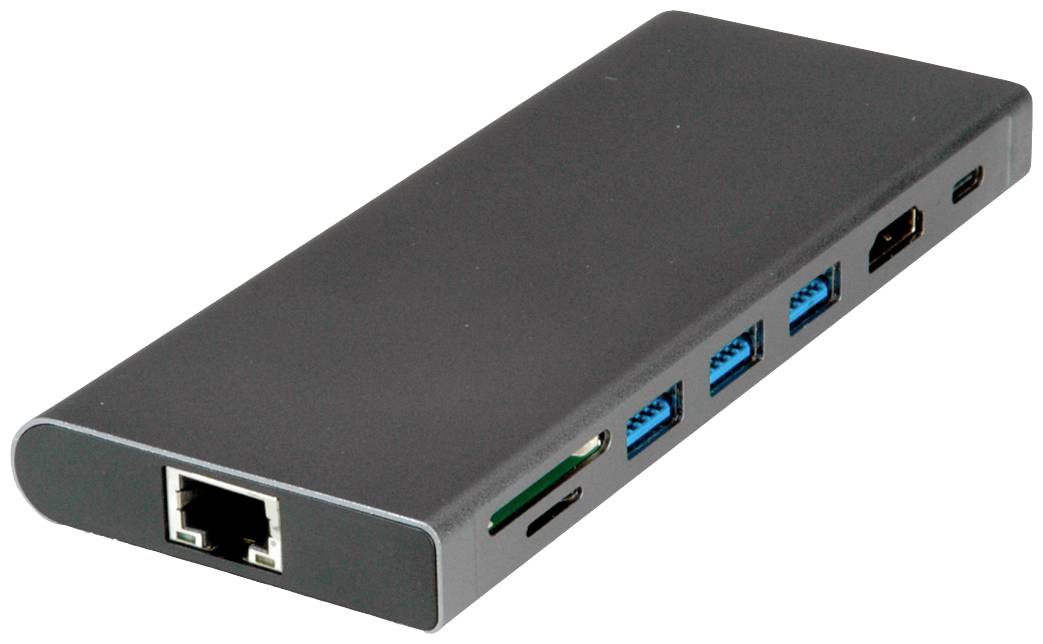

Value 12.99.1138 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): HDMI®, USB-C®, USB 3.2 1st Gen (USB 3.0), USB-C® socket (Power Delivery), SD, TF memory card slot, RJ45, Audio, stereo (3.5 mm jack)
- No. of supported monitors: 1
- Maximum resolution: 3840 x 2160 p
- Key features: Built-in card reader, USB-C® powered
Technical specifications
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
HDMI®
USB-C®
USB 3.2 1st Gen (USB 3.0)
USB-C® socket (Power Delivery)
SD
TF memory card slot
RJ45
Audio, stereo (3.5 mm jack)
- Suitable for
Notebook
- Supported monitors
1
- Resolution (max.)
3840 x 2160 p
- Cable length
0.10 m
- Factory colour
Multicolour
- Features
Built-in card reader
USB-C® powered
- Width
60 mm
- Height
14 mm
- Depth
142 mm
- Weight
118 g
- Dim
(W x H x D) 60 x 14 x 142 mm
- Compatible with (brand)
Universal
- Cable design
Round
- Version
Cable
- Cable use
PC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017764 Value USB-C® docking station Compatible with (brand): Universal Built-in card reader, USB-C® powered
Description
Connect your MacBook, Ultrabook, Notebook/Laptop via USB type C to a local network as well as with permanently installed devices - a HDMI-monitor like - and via the different USB-ports with e.g. a keyboard or external hard disks, while you charge your device simultaneously via the USB type C PD port. Apart from this, you can read SD or TF-cards.
This text is machine translated.
This text is machine translated.
Features
- USB 3.2 Gen 2 type C docking station for MacBook, Ultrabook, Notebook/Laptop or PC, for example
- Mirror or extend your display to an HDMI-enabled television or monitor, connect your device to a network and at the same time connect input or peripheral devices via USB
- Maximum resolution: 3840 x 2160 @60Hz
- Portable, compact design
- USB Type C PD: Power delivery function for charging devices using the additional Type C connector
- Connections: USB type C plug; HDMI socket, 1x US3.2Gen1 C + 3x USB3.2Gen1 A, 1x type C PD, 1x SD/TF, 1x RJ45, 1x 3.5mm audio
- No power supply needed
- Card reader for SD and TF integrated
- Cable length approx. 10 cm
Hints
Note: Requires support for Alternate Mode (DisplayPort Alt Mode)
