Value VALUE Field mountable RJ-45 connector Cat. 8 (Class I) 21.99.1804 RJ45 plug enclosure No. of pins (RJ) 8 Silver (m
EAN:
Part number:
Item no:
Connector type
RJ45 plug enclosure
No. of pins
8
Specification
CAT 8.1
Connector standard
RJ45
Type
21.99.1804

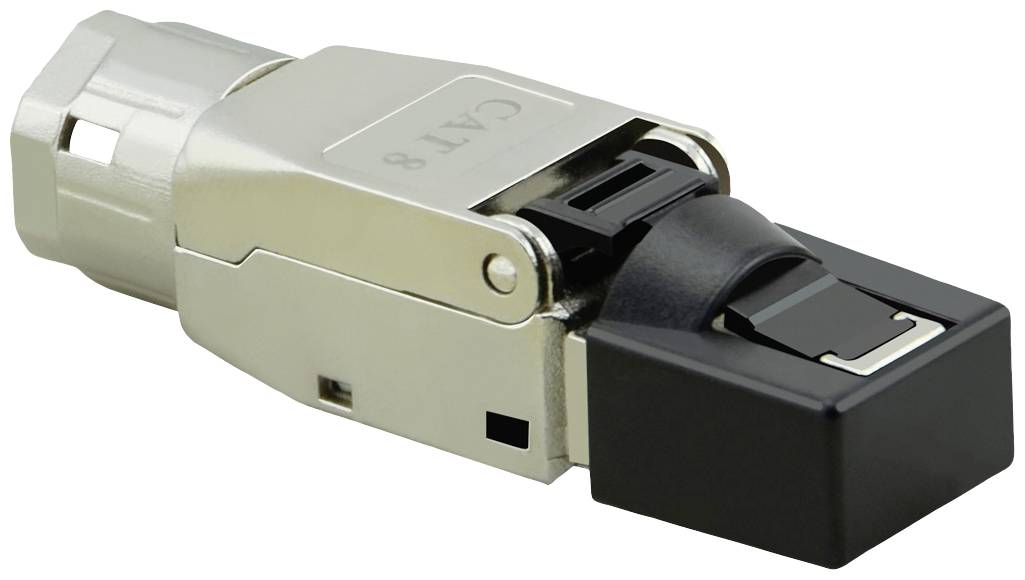

VALUE Field mountable RJ-45 connector Cat. 8 (Class I)
Highlights & Details
- 8-wire field assemblyRJ45 plug for AWG 22 - 26
- Cat.8.1, suitable for 10 to 40 GBit/s.
- Simple, fast and reliable assembly - without connecting special tools, simple to activate strain relief
- Robust zinc die-cast housing, nickel-plated
- Fully shielded, 360° shield contact
- For cable diameters of 5.0 to 8.5 mm
Technical specifications
- Type
21.99.1804
- Connector type
RJ45 plug enclosure
- No. of pins
8
CAT 8.1
- Connector standard
RJ45
- AWG max.
26
- AWG (min.)
22
- Connection
RJ45
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- No. of ports
1 x
- Weight
19 g
- Factory colour
Silver (metallic)
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Width
14 mm
- Height
13 mm
- Length
48 mm
- RoHS-compliant
Yes
- Features
Industrial-grade (w/o tools)
- Max. temperature
60 °C
- Min. temperature
-10 °C
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017780 Value VALUE Field mountable RJ-45 connector Cat. 8 (Class I) 21.99.1804 RJ45 plug enclosure No. of pins (RJ) 8 Silver (m
Description
8-wire RJ45 connectors for easy, fast and reliable assembly without the need for special tools
This text is machine translated.
This text is machine translated.
Features
- Manufacturer: VALUE
- Product group: Connection technology TP
- Product type: Connector RJ-45
- Colour: Silver
- Shielding type: Shielded
- Transmission quality Cat8.1 / Class I
- Shield contact: Yes
- Separate strain relief: Yes
- Min. Operating temperature -10 °C
- Max. operating temperature: 60 °C
- Height: 13 mm
- Width: 14 mm
- Depth: 48 mm
- Weight: 19 g
- Packing height. 10 mm
- Package width 30 mm
- Packaging depth 20 mm
- Package weight: 0,025 kg
