Varta Mempac 3/V150H Button cell (rechargeable) Mempec NiMH 150 mAh 3.6 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

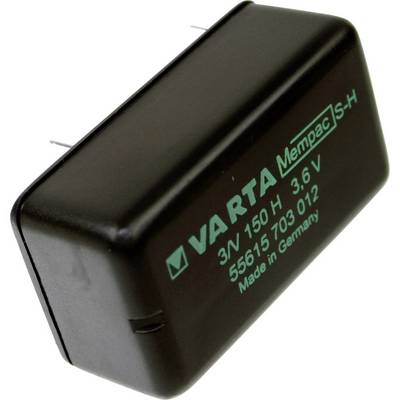

Button cell battery Mempac 3/V150H
- High reliability and long service life.
- Excellent charging and discharging characteristics
- UL approval.
Technical specifications
- Temperature range: -20 to +65 °C
- Discharge current max. 280 mA
- Product type
Button cell (rechargeable)
- Size
Mempec
- Dim
(L x W x H) 40 x 22 x 16 mm
- Connector
Contact retainers
- Voltage
3.6 V
- Capacity (mAh, Ah)
150 mAh
- Technology
NiMH
- Length
40 mm
- Width
22 mm
- Height
16 mm
- Weight
21 g
- Content
1 pc(s)
- Rechargeable
Yes
Documents & Downloads
Datasheet
Datasheet 1841304 Varta Mempac 3/V150H Button cell (rechargeable) Mempec NiMH 150 mAh 3.6 V 1 pc(s)
Description
More reliable and more durable button cell battery for standard, back up to high-tech applications. For example, for cordless phones, Notebook Bridging functions, Memory Backup, real-time clocks in PCS/notebooks, dosing systems, tracking or smart key but also as a main battery for toys, sensor technology, remote controls, rechargeable torches, wireless headphones, emergency lighting, timer, home and car alarm systems, medical devices and many other applications.
It can be tested components of the highest quality are installed in order to achieve an excellent charge and discharge characteristics.
This text is machine translated.
It can be tested components of the highest quality are installed in order to achieve an excellent charge and discharge characteristics.
This text is machine translated.
Features
- Long operating life
- Patented GCE-electrode
- High energy density
- UL approval.
- High-quality components
- No memory effect
- 0% 0% lead, mercury, 0% cadmium
- Low self discharge
- High reliability
- Excellent charging and discharging characteristics
- Compatible with Nicd button cells without modification of the charging technology
- Meets IEC 61951-2
