Varta V3/CP300H-SLF ++/- Button cell (rechargeable) CP300H NiMH 300 mAh 3.6 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

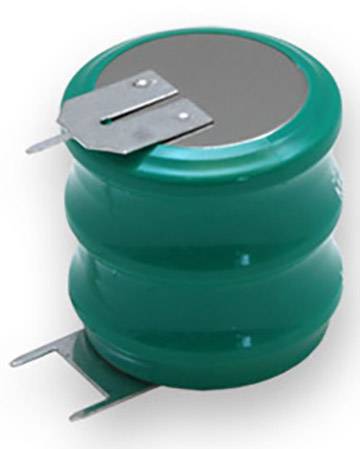

Button cell battery V3/CP300H-SLF ++/-
- High reliability and long service life.
- Excellent charging and discharging characteristics
- UL approval.
Technical specifications
- Temperature range: -20 to +65 °C
- Discharge current max. 560 mA
- Product type
Button cell (rechargeable)
- Size
CP300H
- Dim
(Ø x H) 25.1 mm x 26.9 mm
- Connector
Contact retainers
- Voltage
3.6 V
- Capacity (mAh, Ah)
300 mAh
- Technology
NiMH
- (Ø)
25.1 mm
- Height
26.9 mm
- Weight
33 g
- Content
1 pc(s)
- Rechargeable
Yes
- Pin spacing
10 mm
Documents & Downloads
Datasheet
Datasheet 1841340 Varta V3/CP300H-SLF ++/- Button cell (rechargeable) CP300H NiMH 300 mAh 3.6 V 1 pc(s)
Description
More reliable and more durable button cell battery for standard, back up to high-tech applications. For example, for cordless phones, Notebook Bridging functions, Memory Backup, real-time clocks in PCS/notebooks, dosing systems, tracking or smart key but also as a main battery for toys, sensor technology, remote controls, rechargeable torches, wireless headphones, emergency lighting, timer, home and car alarm systems, medical devices and many other applications.
It can be tested components of the highest quality are installed in order to achieve an excellent charge and discharge characteristics.
This text is machine translated.
It can be tested components of the highest quality are installed in order to achieve an excellent charge and discharge characteristics.
This text is machine translated.
Features
- Long operating life
- Patented GCE-electrode
- High energy density
- UL approval.
- High-quality components
- No memory effect
- 0% 0% lead, mercury, 0% cadmium
- Low self discharge
- High reliability
- Excellent charging and discharging characteristics
- Compatible with Nicd button cells without modification of the charging technology
- Meets IEC 61951-2
