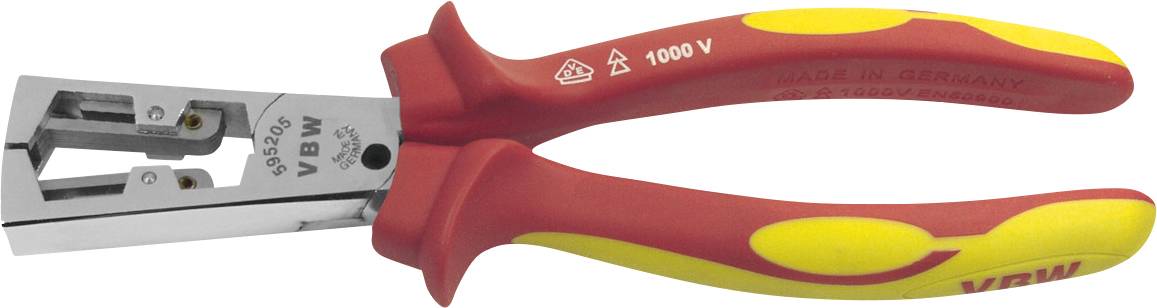

VBW 87595205 VDE Cable stripping pliers 0.5 up to 5 mm² 0.5 up to 5 mm
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
Highlights & Details
VDE wire stripper min. D.0.5mm² - max. D.5mm² L.160mm
- Width mm (b) 59 mm
- Diameter (mm) max. 5 mm
- Diameter max. (mm²) 5 mm²
- Min. Diameter (mm²) 0.5 mm²
- Grips multi-component sleeves
- Chrome-plated head
- Length (L) 160 mm
- Cutting power 10 mm²
- Weight (g) 212 g
Technical specifications
- Product type
Cable stripping pliers
- Suitable for
Leads
- Operating range (diameter)
0.5 up to 5 mm
- Working area diameter (min.)
0.5 mm
- Operating range (diameter) (max.)
5 mm
- Working area (cross section)
0.5 up to 5 mm²
- Working area cross section (min.)
0.5 mm²
- Operating range (cross section) (max.)
5 mm²
- Range of use
VDE
- Material
Steel
- Material properties
chrome plated
- Length
160 mm
- Width
59 mm
- Weight
212 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3457176 VBW 87595205 VDE Cable stripping pliers 0.5 up to 5 mm² 0.5 up to 5 mm
Description
- Suitable for automatic stripping of different cross sections
- With joint cutting hole for cutting cables and wires
- Self-adjusting for wires from 0.5 mm to 5.0 mm
- Individually tested at 10,000 V AC for 100% safety according to IEC
- 60 900, EN 60 900 and VDE 0682/Part 201
- Approved up to 1,000 V AC and 1,500 V DC
- Special electric steel
This text is machine translated.
- With joint cutting hole for cutting cables and wires
- Self-adjusting for wires from 0.5 mm to 5.0 mm
- Individually tested at 10,000 V AC for 100% safety according to IEC
- 60 900, EN 60 900 and VDE 0682/Part 201
- Approved up to 1,000 V AC and 1,500 V DC
- Special electric steel
