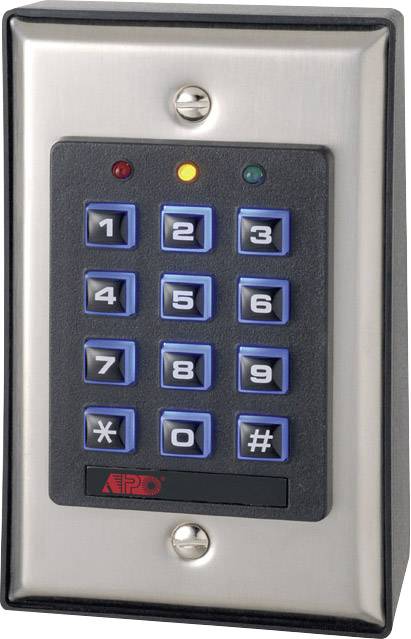

Velleman HAA85BLN Code lock Set 12 V + backlit keypad
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Technical specifications
- Product type
Code lock
- Operating voltage
12 V
- LEDs
3
- Weight
180 g
- Dim
(W x H x D) 72 x 117 x 42 mm
- Features
+ backlit keypad
- Width
72 mm
- Height
117 mm
- Depth
42 mm
- Operating voltage
12 V DC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 085373 Velleman HAA85BLN Code lock Set 12 V + backlit keypad
Description
Attention: This article is reserved for professionals. It can only be delivered if the order has been placed by a professional.
The electric door lock is compatible with almost all electronic locking systems and serves as a control element for safety systems and machines. It can accept more than 100 million user codes (in multi-user mode). The programd data is stored in a non-volatile data memory. Backlit keyboard: Weak in sleep mode, strong in 10 seconds after a key is pressed.
This text is machine translated.
The electric door lock is compatible with almost all electronic locking systems and serves as a control element for safety systems and machines. It can accept more than 100 million user codes (in multi-user mode). The programd data is stored in a non-volatile data memory. Backlit keyboard: Weak in sleep mode, strong in 10 seconds after a key is pressed.
This text is machine translated.
Features
- Outputs: Output 1: 5 A, NC and NO dry contacts, max. 30 V DC, output 2: 1 A, NC and NO dry contacts, max. 30 V DC, output 3: NPN transistor with open collector for further control options
- Access lock function
- Output 1 locking
- Alarm when door is open (locked)
- Automatic access or access with code
- Relay activation display
- Acoustic signals for on/off
- Keyboard output activated
- Automatic door lock
- Alarm output
- duress output
- Power supply: 12 V DC
- LEDs indicate the operating state of the keyboard
- duress output: NPN transistor with open collector, switches to (-) when activated, max. load capacity of 100 mA/25 V DC.
- Available codes: User codes 1 & 2, super user code, master code, duress code and short code.
Hints
Operating instructions not available in German.
This article is reserved for professionals. It can only be delivered if the order has been placed by a professional.
