Velleman LABPS6005SM Bench PSU (adjustable voltage) 0 - 60 0 - 5 A
EAN:
Part number:
Item no:
Highlights & Details

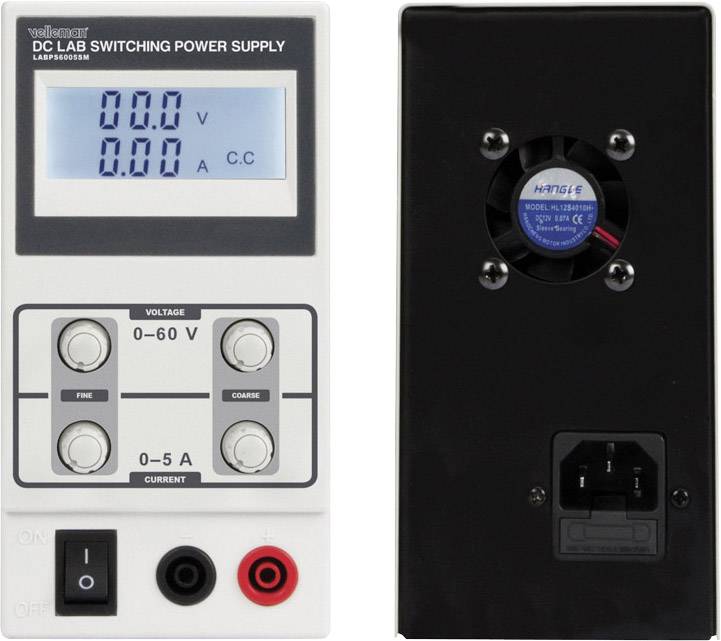

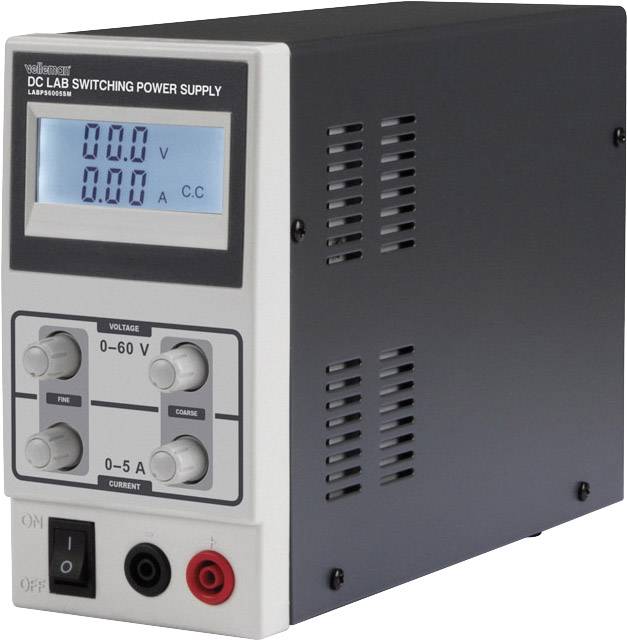

Lab switched-mode power supply with LED-display
- 0 - 60 / 0 - 5 A
Technical specifications
- Depth: 230 mm
- Ripple: 150 mV
- 5 A / 240 V fuse
- Max. Relative humidity<: 80 %
- Max. height 2000 m
- Operating temperature 5°C–40°C;
- Type
LABPS6005SM
- Product type
Bench PSU (adjustable voltage)
- Technology
SMPSU
- Dim
(W x H) 85 mm x 160 mm
Manufacturer's standards (no certificate)
- Input voltage
240 V AC
- Weight
1.6 kg
- Output voltage (max.)
60 V
- Output voltage (min.)
0 V
- Max. output current
5 A
- Output current (min.)
0 A
- Width
85 mm
- Height
160 mm
- Material
Metal
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 097310 Velleman LABPS6005SM Bench PSU (adjustable voltage) 0 - 60 0 - 5 A
Description
Features
- LED display for voltage and current
- Protection mode: Voltage and current limitation
- Pollution degree II.
- Protected by fuse.
- This text is machine translated.
