1/2

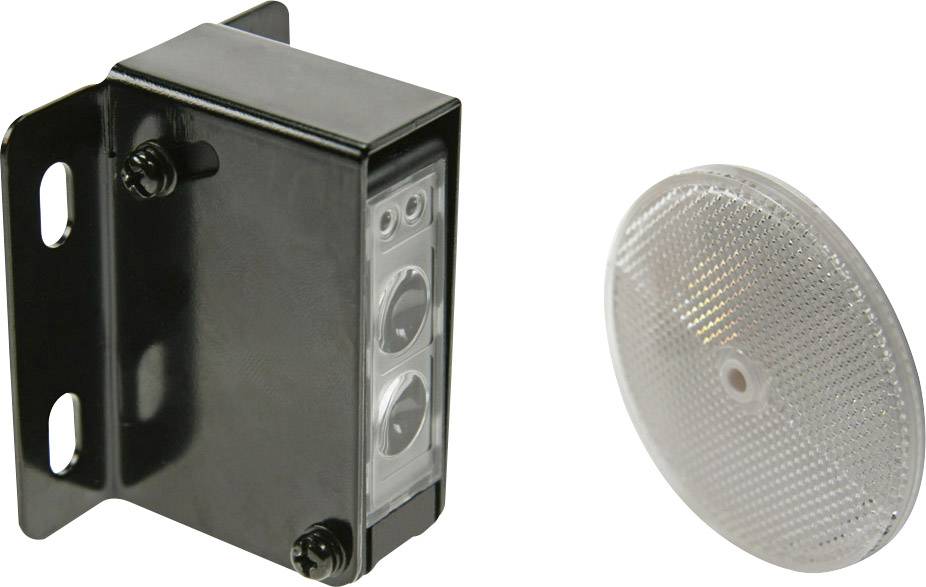

Velleman Retroreflective photo sensor PEM10D PEM10D Retroreflective 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Retroreflective
Type
PEM10D
Contact type
1 maker
Outputs
Relay
Velleman PEM10D light barrier
Highlights & Details
- Universal AC/DC input voltage
- N.O. output
- Cable from ± 1.8m
- Mounting bracket/screws included
Technical specifications
- Product type
Retroreflective photo sensor
- Type
PEM10D
- Functions
Retroreflective
- Contact type
1 maker
- Outputs
Relay
- Cable length
1.8 m
- Enclosure material
PC
- Material properties
Polycarbonate
- Transmitter type
LED IR
10 m
- Features
LED indicator
IP44
- Min. temperature
-10 °C
- Max. temperature
+55 °C
- Length
20 mm
- Width
39 mm
- Height
63 mm
- Depth
39 mm
- Dim
(L x W x H) 20 x 39 x 63 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Weight
347.0000
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2120169 Velleman Retroreflective photo sensor PEM10D PEM10D Retroreflective 1 pc(s)
Description
Velleman PEM10D. AC input voltage: 12-240 V. Width: 20 mm, Depth: 39 mm, Height: 63 mm
This text is machine translated.
This text is machine translated.
Features
- Detection: Reflection
- Range: 10 m
- INPUT VOLTAGE: AC/DC 12-250 V ± 10%
- Response time 5 - 100 ms
- Light source: IR-LED
- Power indicator: Yellow LED (lights up when the beam is interrupted)
- Dimensions 20 x 39 x 63 mm
- Power consumption: ±< 10 mA
- Output: Relay output
- Contact current 1 A/250 VAC
- Illuminance: Lamp light< 10000 lux, sunlight< 30000 lux
- Connection: With multi-core cable (brown/blue/white/black/gray)
- Noise resistance: 1500 Vpp/1µs
- Material: PC, lens: PC
- Operating temperature: -10° to +55°C.
- IP protection class IP44
Hints
For more information on this PEM10D, please refer to its datasheet under 'downloadable documents'
