Technical specifications
- Conductor material: Copper
- Conductor class: Fine strands
- Conductor surface: Plain
- Wire color: Black
- Working temperature 5 - 70 °C
- Oil resistant according to EN 60811-404: No.
- Cold resistant according to EN 60811-504+505+506: No.
- Smoke arm according to IEC 61034-2: No.

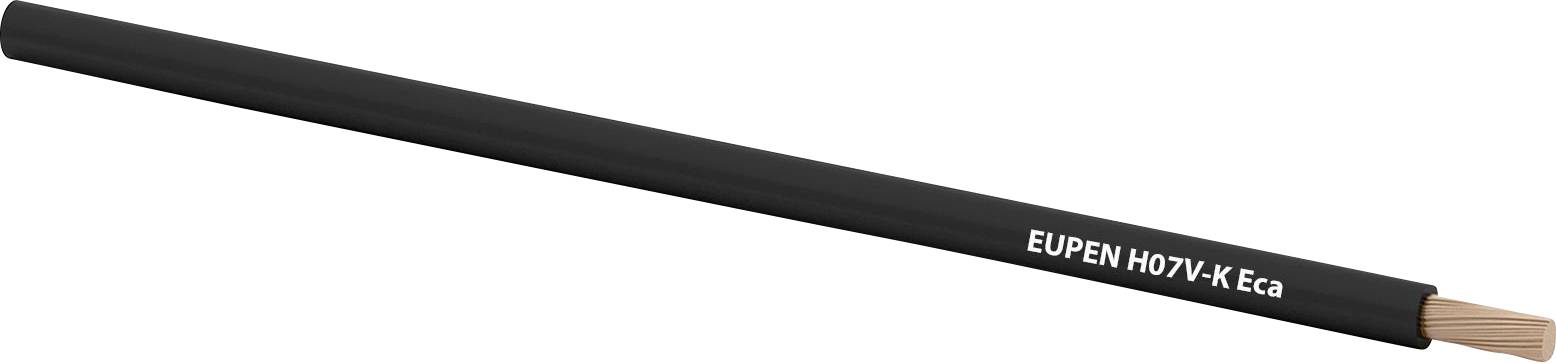

- Product type
Wire core
- Cable type
H07V-K
- No. of leads
1 x
- Cross section (each core)
16 mm²
- No. of leads (part 2)
1 x
- Cross section (each core) (part 2)
16 mm²
- Cross section
1 x 16 mm² + 1 x 16 mm²
- Cable features
Flat
Flexible
- Outside Ø
7.20 mm
- Factory colour
Black
- Content
50 m
- Nominal voltage
750 V
- Nominal voltage U0
450 V
- Packaged
Yes
- Manufacturer part #
VER EUP H07V-K 16 sw Ri. 50
- Insulation material
Polyvinyl chloride
- Max. length sold by the metre
50 m
- Type
VER EUP H07V-K 16 sw Ri. 50
Documents & Downloads
Datasheet
Datasheet 3337502 VER EUP H07V-K 16 sw Ri. 50 Wire core H07V-K 1 x 16 mm² Black 50 m
User & Safety Instructions
User & Safety Instructions 3337502 VER EUP H07V-K 16 sw Ri. 50 Wire core H07V-K 1 x 16 mm² Black 50 m
Description
According to EN 50525-2-31. Installation in electrical installation pipes on or under plaster or in similar closed systems. Suitable for protected fixed installation, in or on lighting systems or switching and control devices for voltages up to 1 000 V AC or up to 750 V DC against earth.
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
