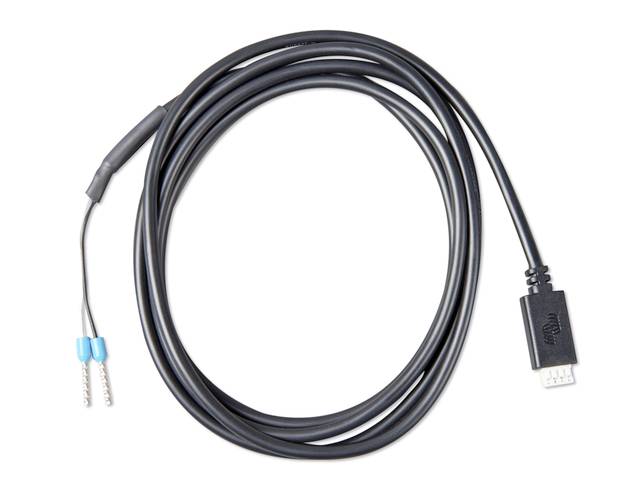

Victron Energy ASS030550500 Direct TX digital output Data cable
EAN:
Part number:
Item no:
Technical specifications
- Product type
Data cable
- Weight
0.04 kg
- Factory colour
Black
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3059025 Victron Energy ASS030550500 Direct TX digital output Data cable
Description
The VE.Direct TX digital output cable can be used in combination with the BlueSolar and SmartSolar MPPT chargers.
It supports lighting applications in solar energy systems. Energy consumption can be reduced significantly by dimming the light when needed. Low power costs reduce the total cost of the system. Moreover, more lighting is available, even if the battery is only partially charged with little sunlight. The cable connects the TX output of the VE.Direct plug of an MPPT charger with the PWM dimmer input of the LED driver.
The cable is also designed to provide a load output for larger MPPT chargers (MPPT 100/30 and larger) that do not have a load output. The cable connects the TX output of the VE.Direct plug of an MPPT-charger to a BatteryProtect or a Solid State relay, in order to switch a load on or off.
This text is machine translated.
It supports lighting applications in solar energy systems. Energy consumption can be reduced significantly by dimming the light when needed. Low power costs reduce the total cost of the system. Moreover, more lighting is available, even if the battery is only partially charged with little sunlight. The cable connects the TX output of the VE.Direct plug of an MPPT charger with the PWM dimmer input of the LED driver.
The cable is also designed to provide a load output for larger MPPT chargers (MPPT 100/30 and larger) that do not have a load output. The cable connects the TX output of the VE.Direct plug of an MPPT-charger to a BatteryProtect or a Solid State relay, in order to switch a load on or off.
This text is machine translated.
Scope of delivery
- Cable
