Victron Energy Battery monitor
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Battery Protect
- 12/24 V automatic detection of voltage range
- Easy programming
- A special setting for lithium-ion batteries
Technical specifications
- Operating voltage
6 - 35 V
- Product type
Battery monitor
- Dim
(W x H) 160 mm x 80 mm
- Width
160 mm
- Height
80 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924473 Victron Energy Battery monitor
User & Safety Instructions
User & Safety Instructions 1924473 Victron Energy Battery monitor
Description

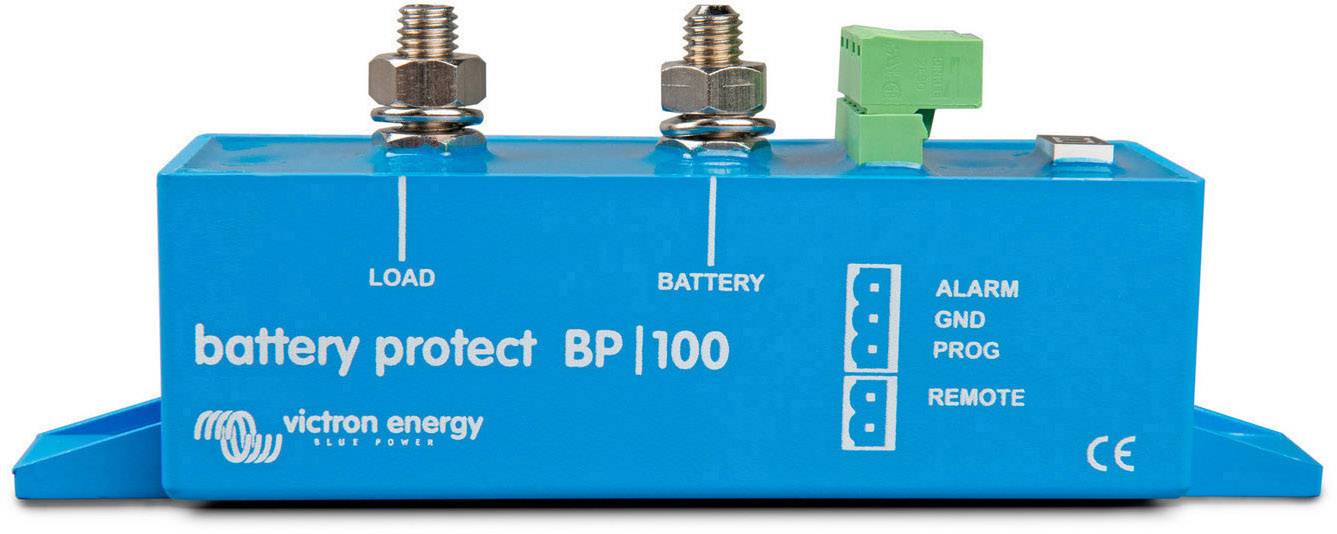

The battery protect disconnects the battery from the less important consumers, before you fully discharged (whereby it has been damaged) or before you no longer have enough energy to start the engine.
12/24 V automatic detection of voltage range
The battery protect detects the system voltage automatically.
Easy programming
The battery protect can be set in such a way that in several different voltages turns on or off. The seven segment display shows then which setting has been selected.
A special setting for lithium-ion batteries
In this mode, the battery protect through the VE. Bus BMS control.
Note: The battery protect can also be used as a ladungsbrechers between a battery charger and a Li-ion battery can be used. See connection diagram in the manual.
Extremely low power consumption.
This is important in the case of lithium-ion batteries, especially after the switch-off due to a low voltage levels. Please also observe our data sheet via lithium-ion batteries and the user manual of the VE. Bus BMS for more information.
Overvoltage protection
So that sensitive consumers, not through a surge may be damaged, the load is switched off when the DC voltage of 16 V or 32 V exceeds the value.
Explosion protection
No relay but MOSFET-switch and thus no sparks.
Output for delayed alarm
The alarm output is activated when the battery voltage more than 12 seconds under the preset value to turn off. The turning on of the motor is activated the alarm is not. The alarm output is a short circuit protected open collector output which is connected to the negative (negative) rail. Max. current 50 mA The alarm output is usually used to an acoustic signal, an LED or a relay to activate.
Load cut-off and re-connection delay
The load is 90 seconds after activation of the alarm is switched off. Increases the battery voltage within this period (for example, after the engine is started) again until the threshold to connect to, the load is not switched off. The load is 30 seconds after the battery voltage has exceeded the set voltage value to reconnect, re-connected.
This text is machine translated.
12/24 V automatic detection of voltage range
The battery protect detects the system voltage automatically.
Easy programming
The battery protect can be set in such a way that in several different voltages turns on or off. The seven segment display shows then which setting has been selected.
A special setting for lithium-ion batteries
In this mode, the battery protect through the VE. Bus BMS control.
Note: The battery protect can also be used as a ladungsbrechers between a battery charger and a Li-ion battery can be used. See connection diagram in the manual.
Extremely low power consumption.
This is important in the case of lithium-ion batteries, especially after the switch-off due to a low voltage levels. Please also observe our data sheet via lithium-ion batteries and the user manual of the VE. Bus BMS for more information.
Overvoltage protection
So that sensitive consumers, not through a surge may be damaged, the load is switched off when the DC voltage of 16 V or 32 V exceeds the value.
Explosion protection
No relay but MOSFET-switch and thus no sparks.
Output for delayed alarm
The alarm output is activated when the battery voltage more than 12 seconds under the preset value to turn off. The turning on of the motor is activated the alarm is not. The alarm output is a short circuit protected open collector output which is connected to the negative (negative) rail. Max. current 50 mA The alarm output is usually used to an acoustic signal, an LED or a relay to activate.
Load cut-off and re-connection delay
The load is 90 seconds after activation of the alarm is switched off. Increases the battery voltage within this period (for example, after the engine is started) again until the threshold to connect to, the load is not switched off. The load is 30 seconds after the battery voltage has exceeded the set voltage value to reconnect, re-connected.
This text is machine translated.
Scope of delivery
- 1 x battery protect
