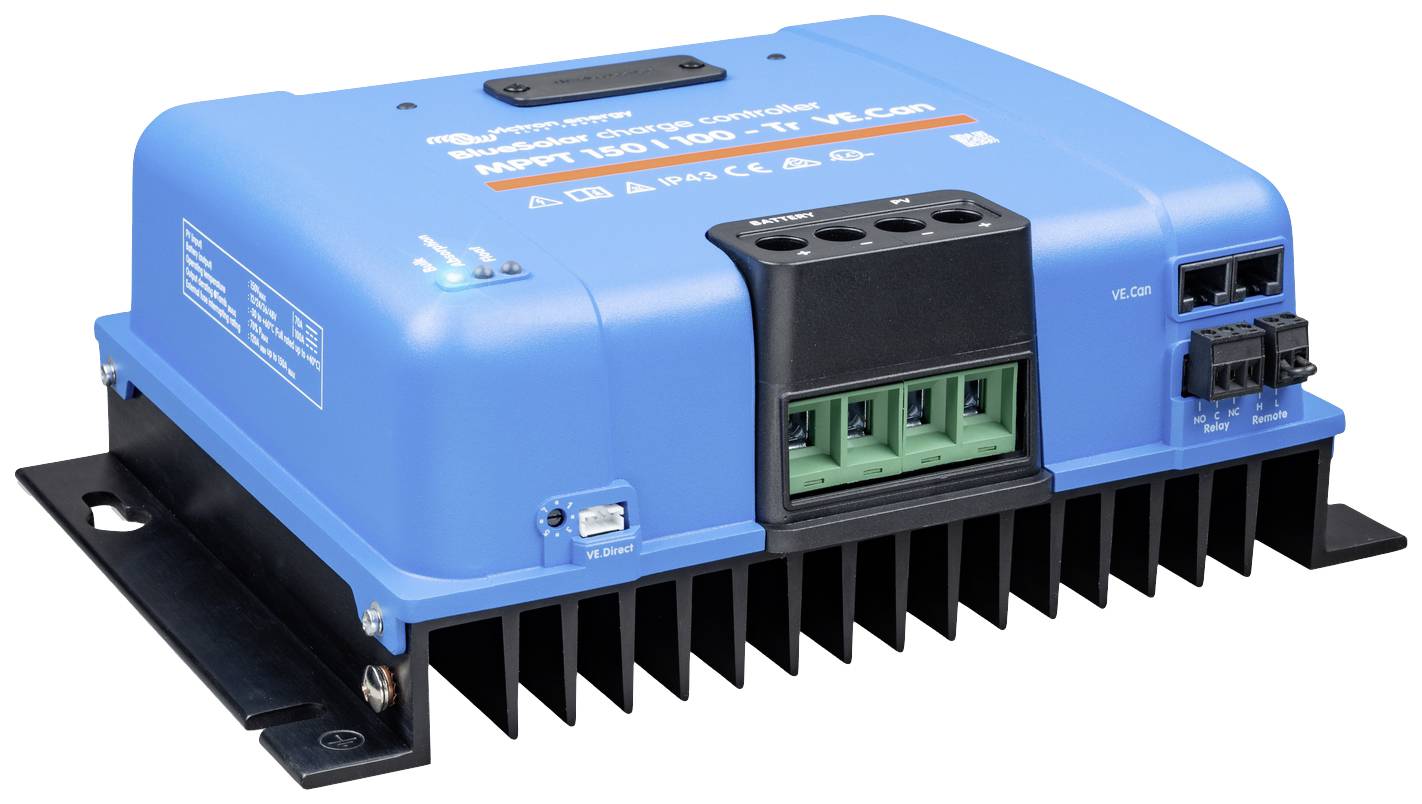

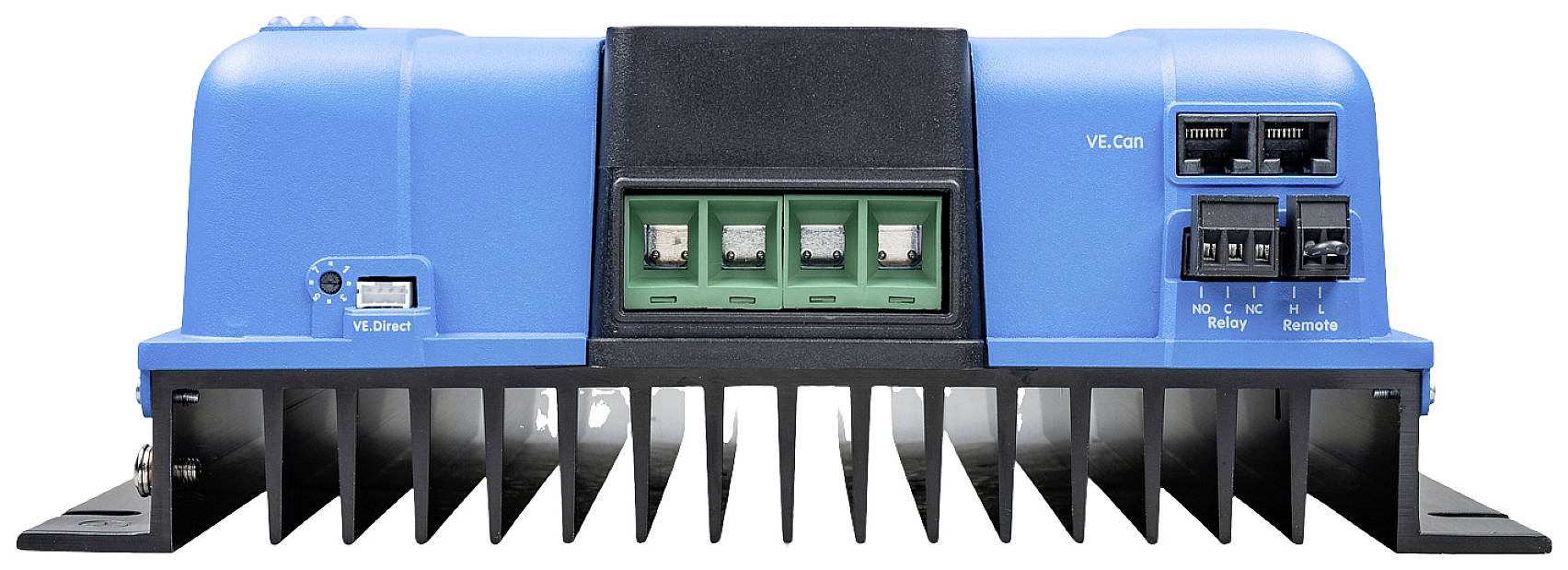

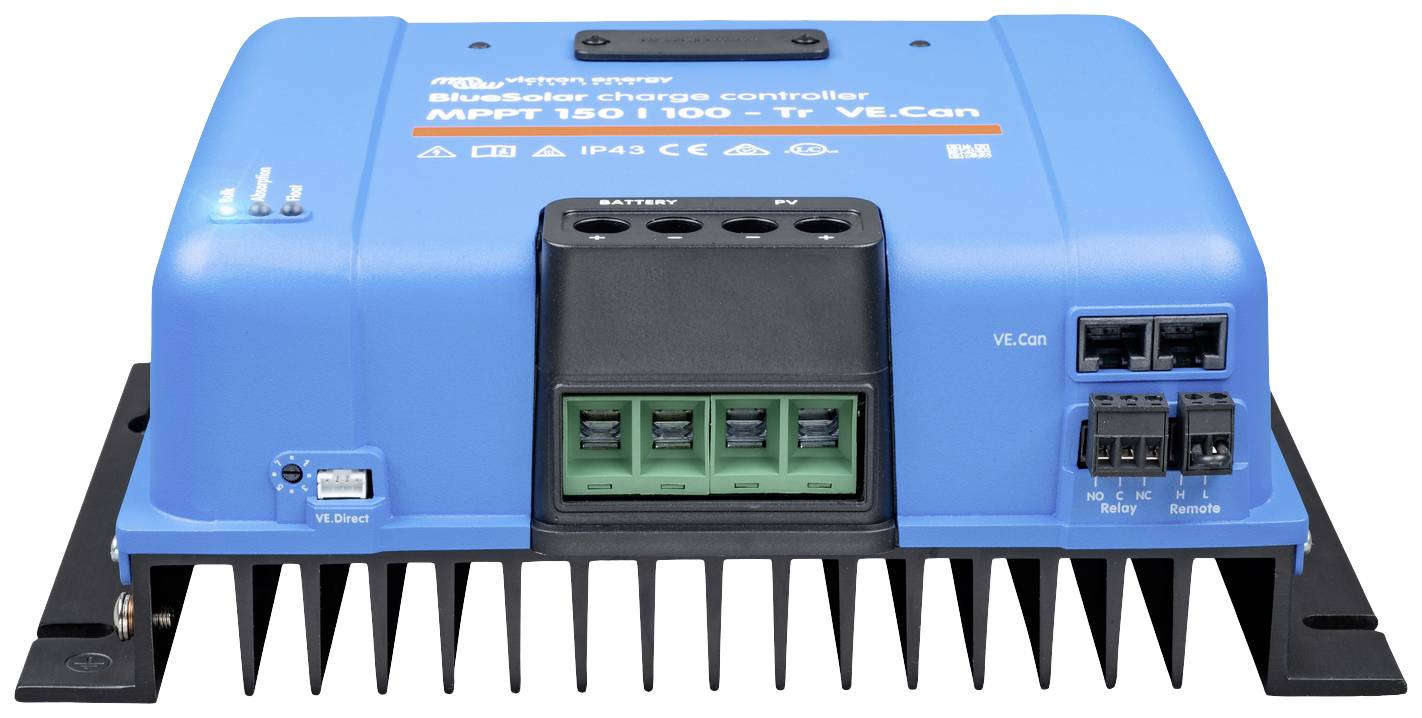

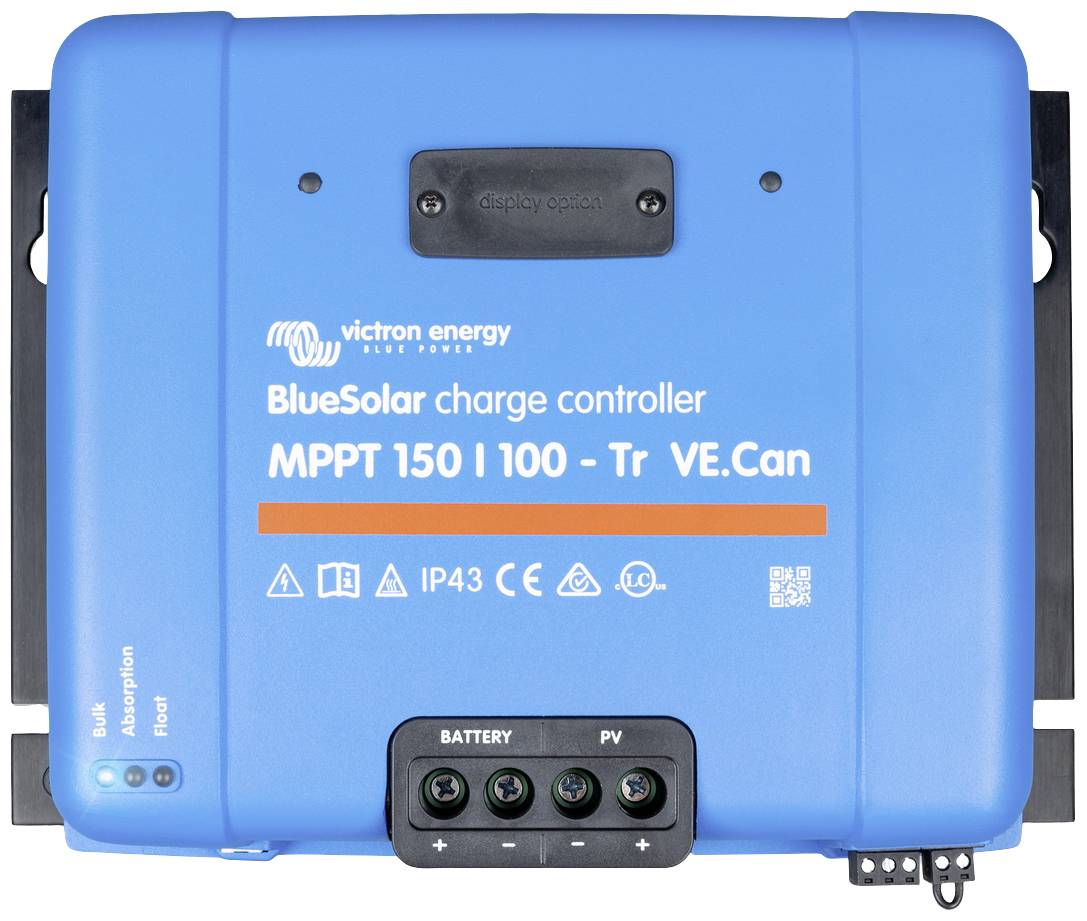

Victron Energy BlueSolar 150/100-Tr VE.Can Charge controller MPPT 12 V, 24 V, 48 V 100 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Charging regulator BlueSolar MPPT
- Automatic load cut-off
- Multi-stage charging algorithms
- Interface VE.direct
- Advanced maximum Power Point detection with partial shading
- Excellent efficiency
- Comprehensive electronic protection
Technical specifications
- Protection class: IP22
- Screw terminal 35 mm²
- Interface VE.direct
- Product type
Charge controller
- Nominal voltage
12 V
24 V
48 V
- Module power (max.)
5800 W
- Temperature range
-30 °C - +60 °C
- Charging current (max.)
100 A
- Own power consumption
20 mA
- Control type
MPPT
- Dim
(L x W x H) 10.3 x 295 x 216 mm
- Weight
4500 g
- Module load (max.)
70 A
- Width
295 mm
- Height
216 mm
- Length
10.3 mm
- Depth
103 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2497276 Victron Energy BlueSolar 150/100-Tr VE.Can Charge controller MPPT 12 V, 24 V, 48 V 100 A
User & Safety Instructions
User & Safety Instructions 2497276 Victron Energy BlueSolar 150/100-Tr VE.Can Charge controller MPPT 12 V, 24 V, 48 V 100 A
Description
Ultra-fast maximum Power Point Tracking (MPPT)
Especially when the sky is covered, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charging controllers and by up to 10% compared to slower MPPT controllers.
Advanced maximum Power Point detection with partial shading
In the case of partial shading, there may be two or more MPPs on the current voltage curve. Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize the energy yield by adjusting to the optimal MPP.
Excellent efficiency
No cooling fan. Maximum efficiency at over 99%.
Flexible charging algorithms
Fully programmable loading algorithm (also see the software page on our website) and eight pre-programd algorithms that can be selected using a rotary knob (see our manual for details).
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against PV short circuit and PV polarity reversal. PV reverse current protection.
Internal temperature sensor
Balances constant and charge retention voltage according to temperature.
Optional external battery voltage, temperature and current measurement via Bluetooth
With a smart battery sense or a BMV-712 smart battery monitor, the voltage and temperature of the battery (and current, in the case of a BMV-712 or a SmartShunt) can be transmitted to one or more BlueSolar charge controllers. (Requires VE.Direct Bluetooth smart dongle)
VE.CAN: The solution with several controllers
With VE.CAN up to 25 devices can be synchronized
VE.Direct or VE.CAN
For a wired data connection with a Color Control GX, other GX products, a PC or other devices
Remote-controlled on/off switching
For example, for connection to a VE.BUS BMS
Programmable relay
Can be programd to trigger an alarm or other events.
This text is machine translated.
Scope of delivery
- Solar charging regulator BlueSolar
- User manual.
