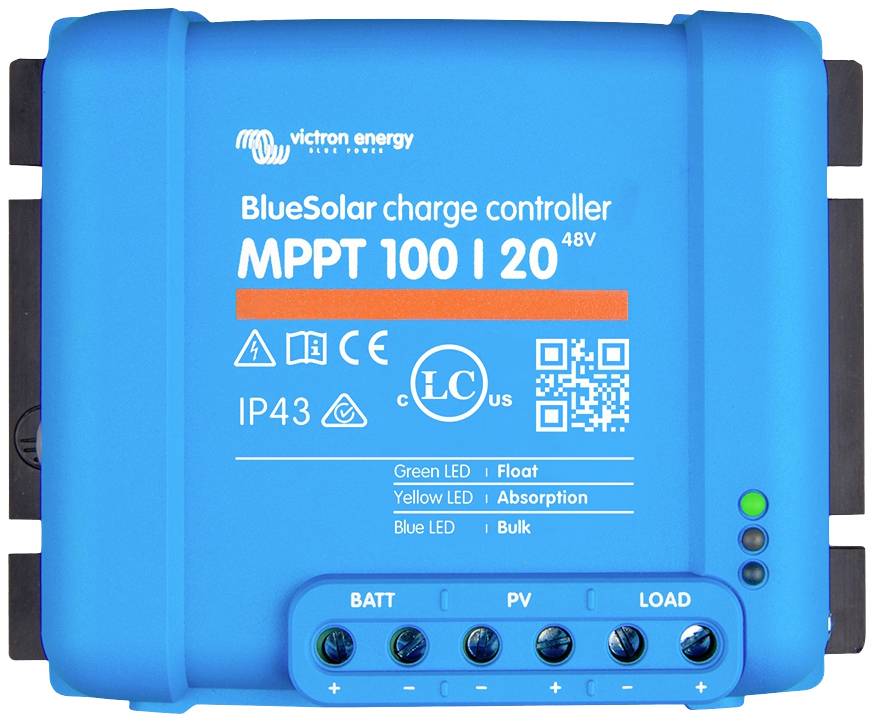

Victron Energy BlueSolar Charge controller MPPT 12 V, 24 V, 48 V 20 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charging regulator MPPT Victron BlueSolar MPPT 100/20 to 48V
- Ultra-fast maximum Power Point Tracking (MPPT)
- Advanced maximum Power Point detection with partial shading
- Excellent efficiency
Technical specifications
- Protection class: IP22
- Screw terminal 6 mm²
- Interface VE.direct
- Product type
Charge controller
- Nominal voltage
12 V
24 V
48 V
- Module power (max.)
1160 Wp
- Temperature range
-30 °C to +60 °C
- Charging current (max.)
20 A
- Own power consumption
20 mA
- Control type
MPPT
- Dim
(W x H x D) 113 x 100 x 60 mm
- Weight
650 g
- Width
113 mm
- Height
100 mm
- Depth
60 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2497261 Victron Energy BlueSolar Charge controller MPPT 12 V, 24 V, 48 V 20 A
User & Safety Instructions
User & Safety Instructions 2497261 Victron Energy BlueSolar Charge controller MPPT 12 V, 24 V, 48 V 20 A
Description
Ultra-fast maximum Power Point Tracking (MPPT)
Especially when the sky is covered, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charging controllers and by up to 10% compared to slower MPPT controllers.
Advanced maximum Power Point detection with partial shading
In the case of partial shading, two or more points can be found on the current voltage curve
Maximum power (MPP). Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize the energy yield by adjusting to the optimal MPP.
Excellent efficiency
No cooling fan. Maximum efficiency at over 98%.
Flexible charging algorithms
Fully programmable loading algorithm and eight pre-programd algorithms that can be selected via a rotary knob.
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against PV short circuit and PV polarity reversal. PV reverse current protection.
Internal temperature sensor
Balances constant and charge retention voltages according to temperature.
This text is machine translated.
