Victron Energy Charge controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

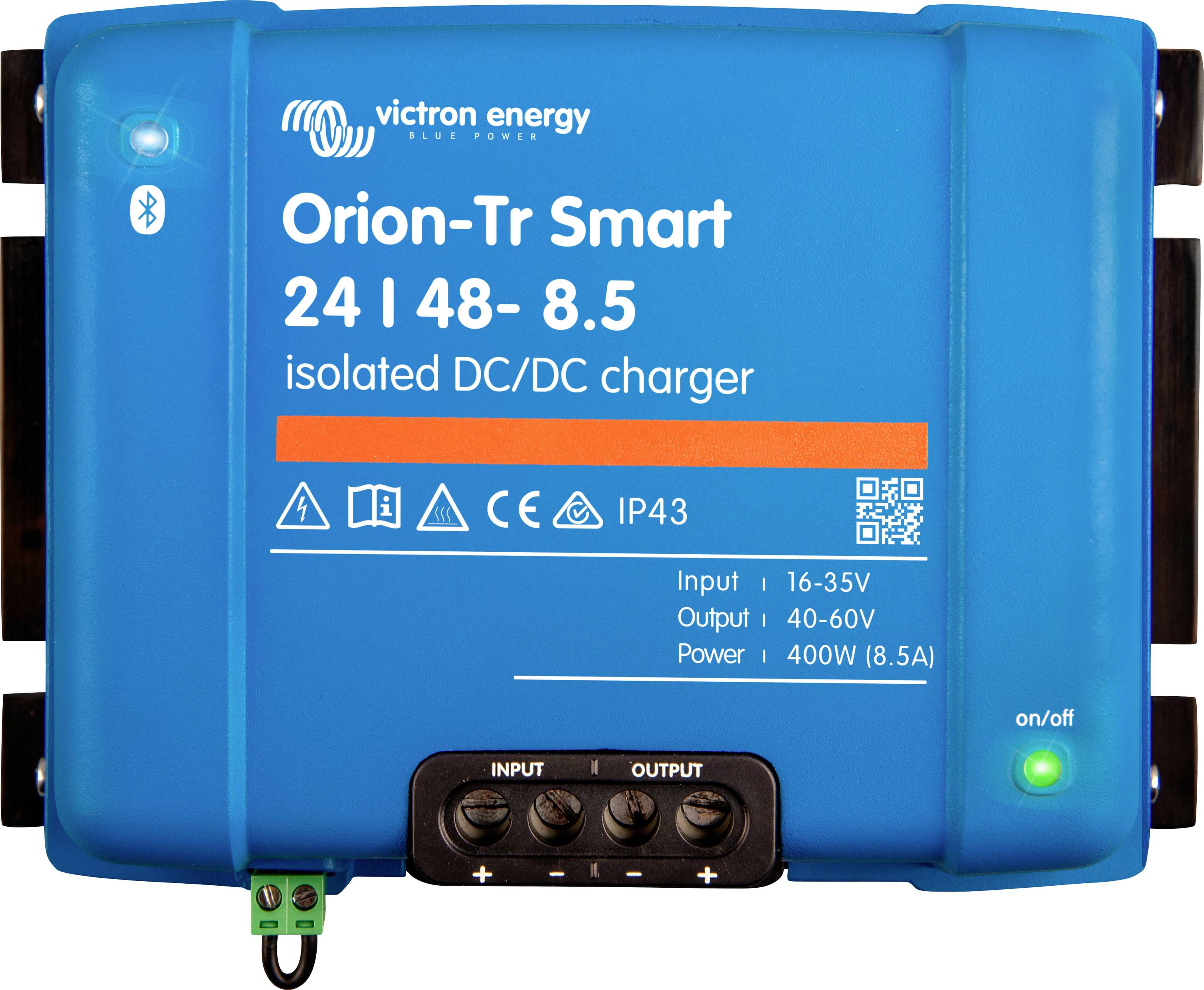

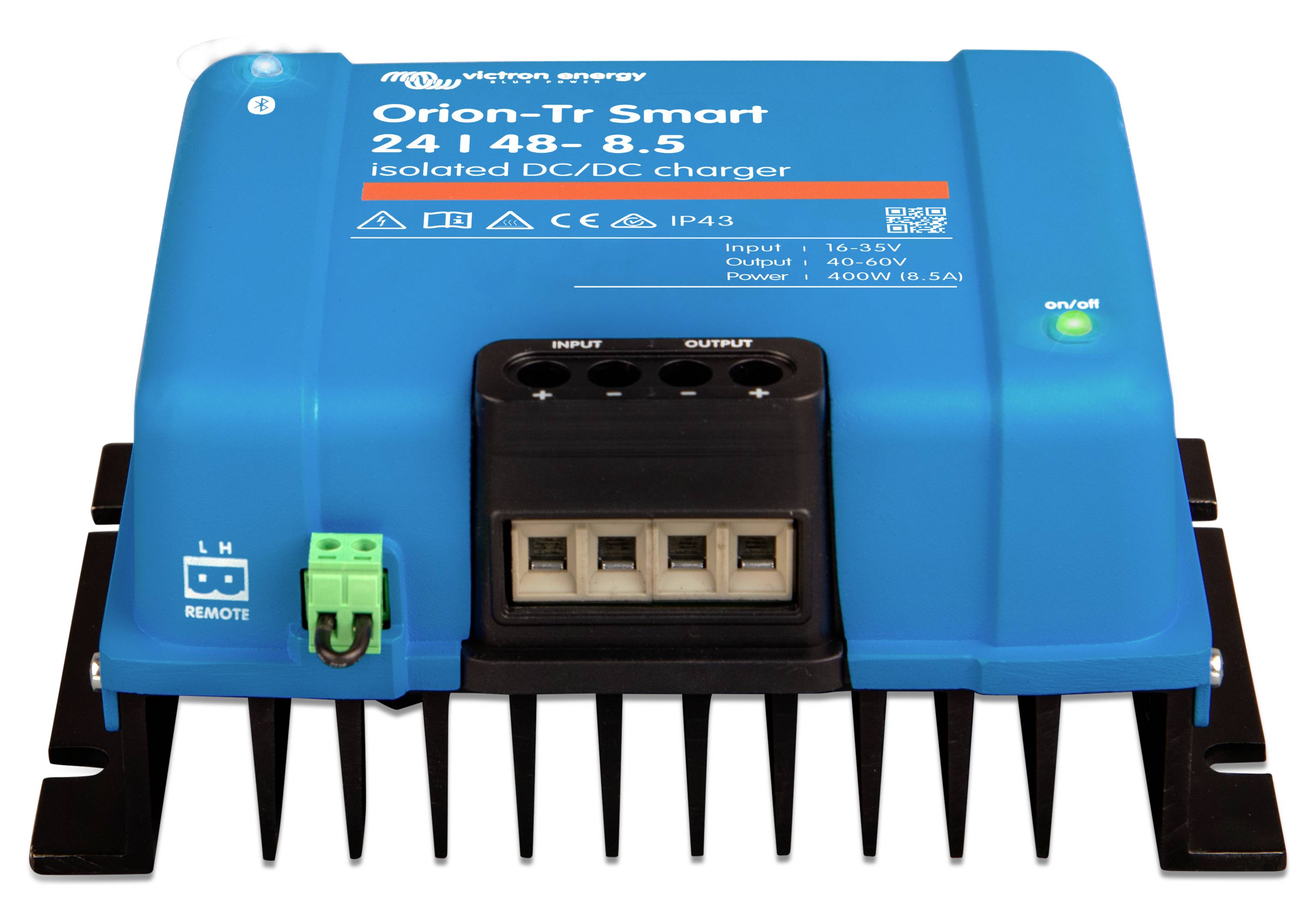

DC/DC charger Victron Orion-Tr Smart 24/48-8.5 ISO
- Bluetooth for easy control and updates
- Fully programmable battery charging algorithm
- 3-phase charging: Constant current, constant voltage, conserved
- Flexible, thanks to remote-controlled on/off switch
- Overheating protection and IP43 for safe operation
- Easy installation without special tools
Technical specifications
- Product type
Charge controller
- Temperature range
-20 to +55 °C, with a reduction of 3% per °C over 40 °C
- Own power consumption
No load input load current < 120 mA
Quiescent current: < 1 mA
- Dim
(W x H x D) 186 x 130 x 70 mm
- Weight
1.3 kg
- Width
186 mm
- Height
130 mm
- Depth
70 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3454125 Victron Energy Charge controller
User & Safety Instructions
User & Safety Instructions 3454125 Victron Energy Charge controller
Conformity certificate
Conformity certificate 3454125 Victron Energy Charge controller
Description
Orion-Tr Smart DC-DC-charger – Intelligent charging technology for maximum performance!
The Orion-Tr Smart is more than just a DC-DC battery charger – it's a powerful and intelligent power source for your vehicle, boat or caravan. Specially developed for vehicles with an intelligent generator (Euro 5 & Euro 6), it ensures optimum charging of the service battery even when the charging voltage fluctuates or long cables cause voltage loss.
Bluetooth Smart & VictoronConnect APP – adjust settings and retrieve status via smartphone
Fully programmable – configurable charging algorithm or fixed output
Adaptive 3-stage charging – protects lead-acid batteries & optimizes lithium charging processes
Intelligent engine running detection – protects the starter battery against discharge
Parallel connection possible - for even more power
• Short-circuit-proof & over-temperature protected
• Remote & easy installation
• Robust with protection class IP43
Maximise the life & performance of your battery with the Orion-Tr Smart DC-DC charger – the smart solution for mobile power management
