Victron Energy Charge controller MPPT 12 V, 24 V 10 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

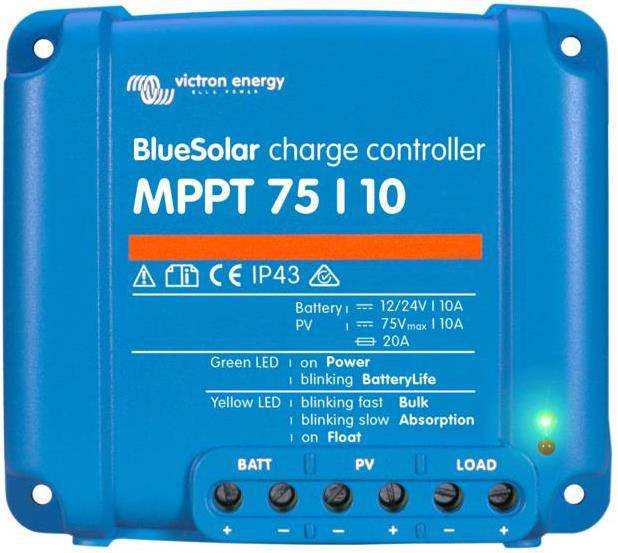

Solar charge controller MPPT solar 75/10 Victron Blue
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading
- High efficiency
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
270 Wp
- Temperature range
-30 °C to +60 °C
- Charging current (max.)
10 A
- Control type
MPPT
- Dim
(L x W x H) 0.4 x 113 x 100 mm
- Weight
0.5 kg
- Width
113 mm
- Height
100 mm
- Length
0.4 mm
- Depth
40 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924537 Victron Energy Charge controller MPPT 12 V, 24 V 10 A
User & Safety Instructions
User & Safety Instructions 1924537 Victron Energy Charge controller MPPT 12 V, 24 V 10 A
Description
Ultra-fast Maximum Power Point Tracking (MPPT)
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Load output
An overcharging of the battery can be prevented by all loads at the load output can be connected. The load output separates the loads when the battery up to a specified voltage value is discharged. Alternatively, you can also be an algorithm for intelligent battery management options: See battery life. The load output is short-circuit proof. Some loads (especially the inverter) can best connect directly to the battery. The inverter remote control can be best with the load output. You may see a special interface cable is required.
Battery life: Intelligent battery management
Is the solar charge controller is not in a position, the battery within one day up to their full capacity to charge, changes the status of the battery is constantly between "partially loaded" and "at the end of the discharge" back and forth. This operation mode (no regular full charging a lead-acid battery) is damaged within a few weeks or months. The battery life algorithm monitors the charging state of the battery and, if necessary, the expander day after day the threshold value for cutting off the load to (i.e., the load is disconnected earlier), until the energy is sufficient to charge the batteries to almost 100%. From this point on, the threshold value for switching off the load modulated so that the charge should be almost 100% about once a week.
Options for displaying data in real-time
- Apple and Android smartphones, tablets and other devices: please refer to the energy-saving VE. Direct to Bluetooth dongle
Color Control Panel
This text is machine translated.
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Load output
An overcharging of the battery can be prevented by all loads at the load output can be connected. The load output separates the loads when the battery up to a specified voltage value is discharged. Alternatively, you can also be an algorithm for intelligent battery management options: See battery life. The load output is short-circuit proof. Some loads (especially the inverter) can best connect directly to the battery. The inverter remote control can be best with the load output. You may see a special interface cable is required.
Battery life: Intelligent battery management
Is the solar charge controller is not in a position, the battery within one day up to their full capacity to charge, changes the status of the battery is constantly between "partially loaded" and "at the end of the discharge" back and forth. This operation mode (no regular full charging a lead-acid battery) is damaged within a few weeks or months. The battery life algorithm monitors the charging state of the battery and, if necessary, the expander day after day the threshold value for cutting off the load to (i.e., the load is disconnected earlier), until the energy is sufficient to charge the batteries to almost 100%. From this point on, the threshold value for switching off the load modulated so that the charge should be almost 100% about once a week.
Options for displaying data in real-time
- Apple and Android smartphones, tablets and other devices: please refer to the energy-saving VE. Direct to Bluetooth dongle
Color Control Panel
This text is machine translated.
Features
- Day/Night Time control and light insulation option, options for displaying data in real time
