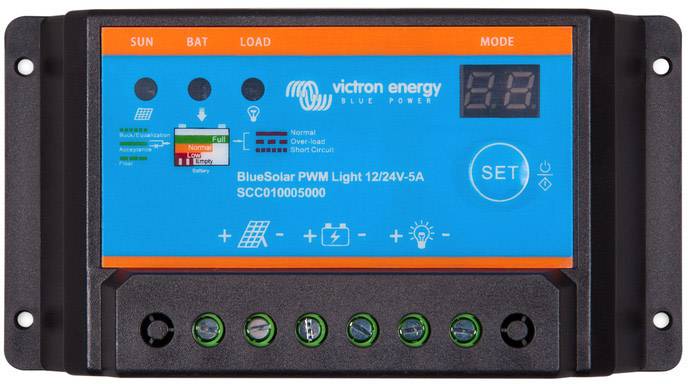

Victron Energy Charge controller PWM 12 V, 24 V 5 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller 12/24 V-5A victron blue solar PWM-Light
- Two-digit 7-segment display
- Secured load output
- Reverse polarity protection for solar system or battery
Technical specifications
- Protection class: IP20.
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Charging current (max.)
5 A
- Control type
PWM
- Dim
(W x H x D) 133 x 70 x 33.5 mm
- Weight
0.15 kg
- Features
Power cut-off
- Module load (max.)
5 A
- Width
133 mm
- Height
70 mm
- Depth
33.5 mm
Documents & Downloads
Datasheet
Datasheet 1972424 Victron Energy Charge controller PWM 12 V, 24 V 5 A
User & Safety Instructions
User & Safety Instructions 1972424 Victron Energy Charge controller PWM 12 V, 24 V 5 A
Description
Functions
Load output with function to separate in low battery voltage
Light-controlled, only a timer.
- Two-digit 7-segment display for quick and easy setting the load output function, including timer setting.
- Charging the battery in three stages (constant current, constant voltage, trickle charging), not programmable.
- Load output against overload and short circuits.
Polarity protection for solar system and/or battery.
Options for day and night settings.
This text is machine translated.
Load output with function to separate in low battery voltage
Light-controlled, only a timer.
- Two-digit 7-segment display for quick and easy setting the load output function, including timer setting.
- Charging the battery in three stages (constant current, constant voltage, trickle charging), not programmable.
- Load output against overload and short circuits.
Polarity protection for solar system and/or battery.
Options for day and night settings.
This text is machine translated.
