Buy Victron Energy Converter EasyPlus C 12/1600/70-16 1600 W 12 V - 230 V AC UPS function

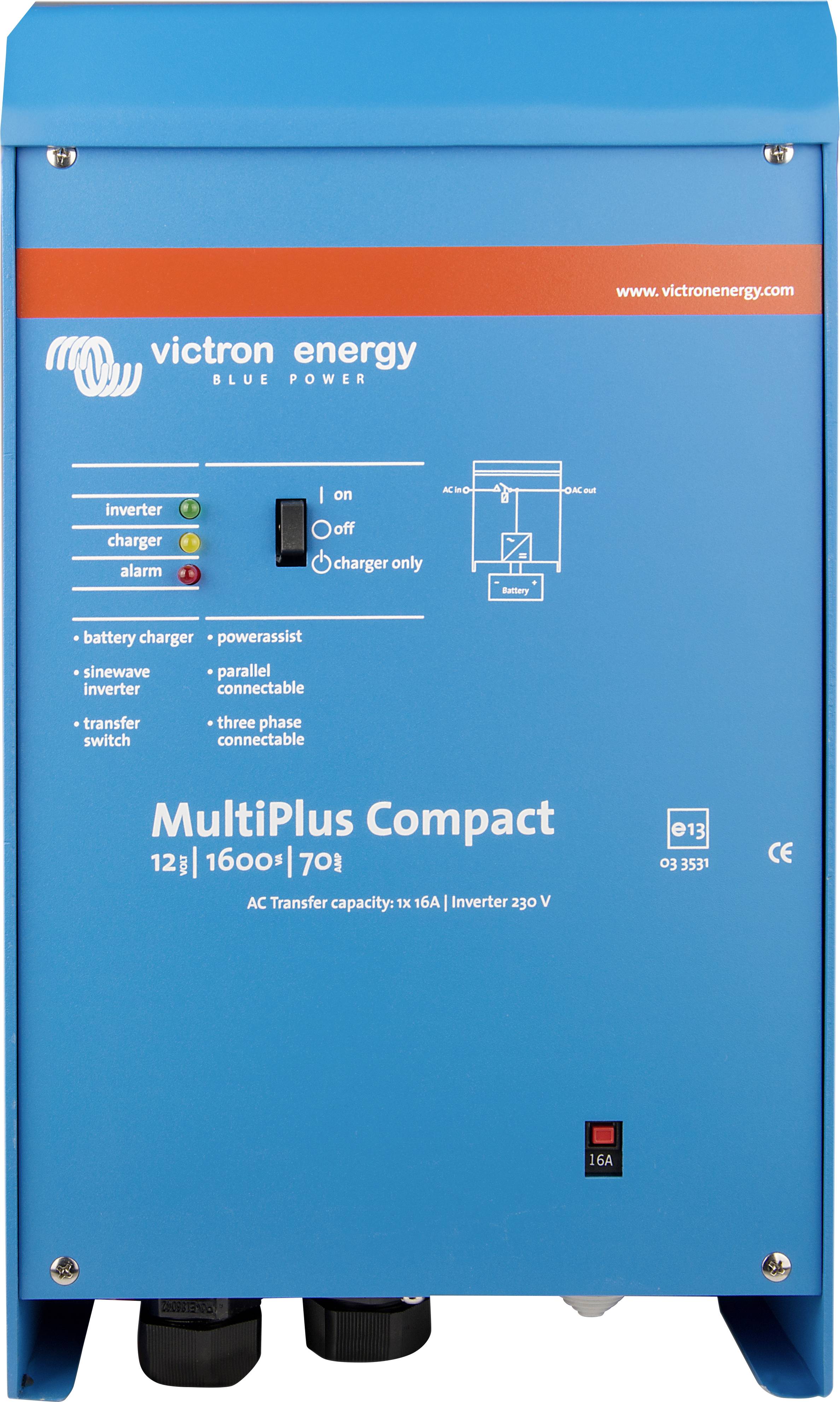

Blue inverter from Victron Energy, MultiPlus Compact model. Indicators for 'On', 'Off', 'Charger' and 'Alarm'. Capacity: 1600 VA.

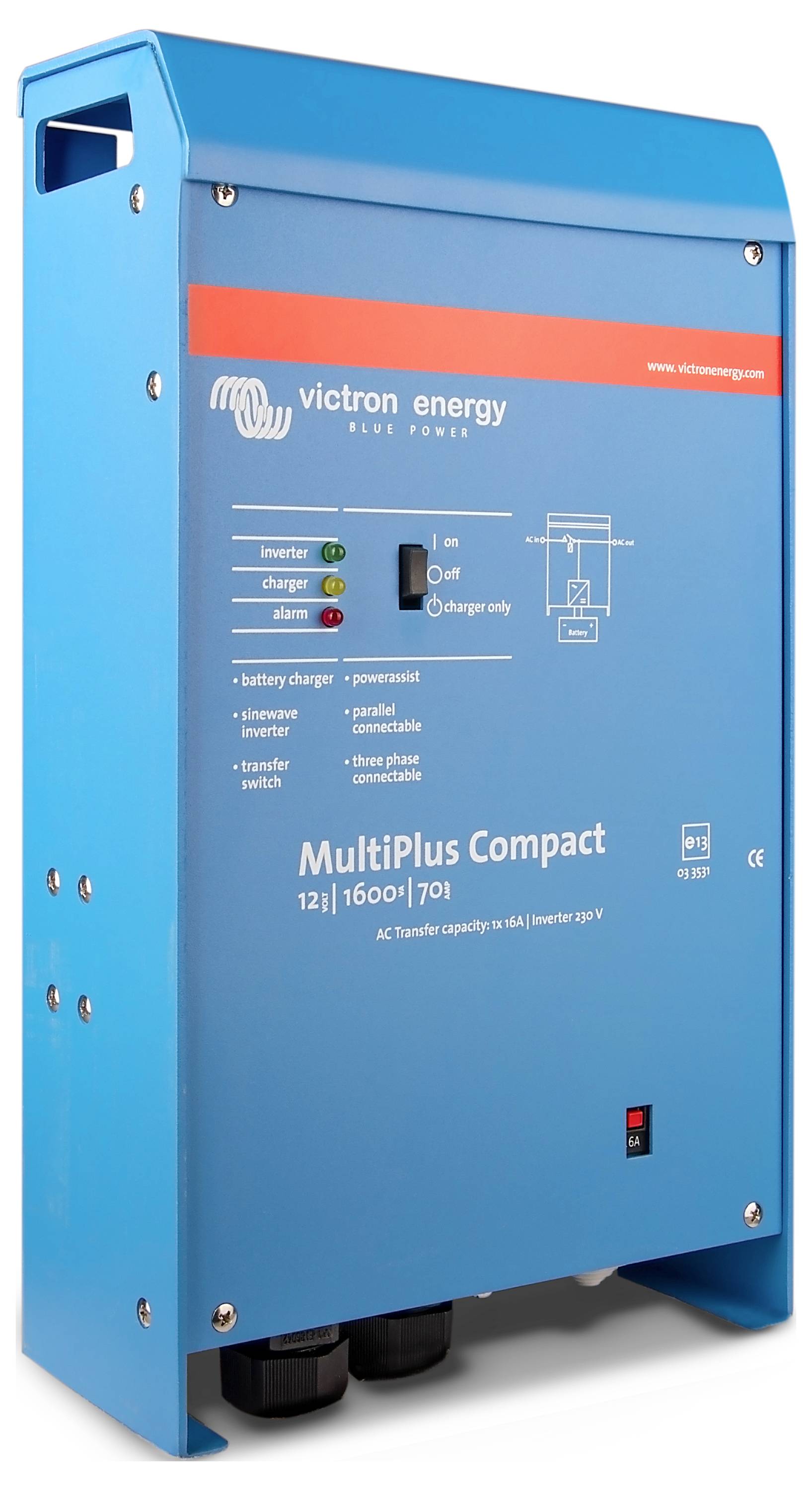

A blue Victron Energy inverter with the label 'MultiPlus Compact', battery display and settings for charger and inverter.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Inverter / Charger Victron EasyPlus C 12/1600/70-16

Device combination of inverter with transfer switch and 70A battery charger
VE.Bus communication sport for networking, system integration and configurations
Supports the three-phase operation in parallel connection
Surveillance on site or by remote monitoring with the APP
Two AC outputs
PowerControl mechanism
Power Assist
Programmable relay
Wide range of uses
For mains-independent and mains-coupled PV-systems

Technical specifications

Product type: Converter

Signal output type: Sine wave

Output voltage: 230 V AC

: 1600 W

Input voltage: 12 V

Inputs: Screw terminals

Output: Screw terminal

Outlets: 4

Remote control: Yes

Weight: 11.7 kg

Width: 214 mm

Height: 510 mm

Depth: 110 mm

Peak output power: 3000 W

Type: EasyPlus C 12/1600/70-16

Features: UPS function

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3402727 Victron Energy Converter EasyPlus C 12/1600/70-16 1600 W 12 V - 230 V AC UPS function

User & Safety Instructions

User & Safety Instructions 3402727 Victron Energy Converter EasyPlus C 12/1600/70-16 1600 W 12 V - 230 V AC UPS function

Description

The Victron MultiPlus C 12/1600/70-16 (MPN: CMP122160000) is a powerful combination of devices for your power supply system. It combines a 12V 1300W sine inverter and an efficient battery charger. This gives you an impressive 70A, so even large batteries can be charged quickly, if there is land or power supply. The inverter converts the battery current into 230 V alternating current, providing optimum power quality for sensitive electronic devices. In addition, the MultiPlus has a lightning-fast 16A transfer switch, which makes it Ideal for camper vans, boats, yachts and mains-connected UPS systems. In self-consumption systems, it ensures that power is drawn from the mains only when the battery power is insufficient. In case of power failure it ensures an uninterruptible power supply.

This text is machine translated.

Features

12 Volt 1600 VA inverter with sine wave (3000 Watt peak power)
70 A charger including 4 A maintenance charging for the starter battery
Unique PowerAssist® technology protects the land or generator power source from overload by adding inverter power when needed
4-stage, adaptive charging technology for a fast and accurate charging of the battery
The AC distribution consists of a fault current circuit breaker (30 mA/16 A) and four AC outputs, which are protected by two 10 A and two 16 A fuses
A 16 A output is controlled by the AC input: It only switches on when AC power is available
Ground fault circuit breaker (30 mA/16 A) at the AC output
Non-disruptive system: Seamless switching between land/generator and inverter current
With battery protection mode
High efficiency
Programmable relay
Alarm function
Ups function
Reliability and long-lasting quality
On/off switching possible
Bulk backup
Circuit breaker
Temperature control
Overload protection
Reverse polarity protection
Robust aluminum housing
