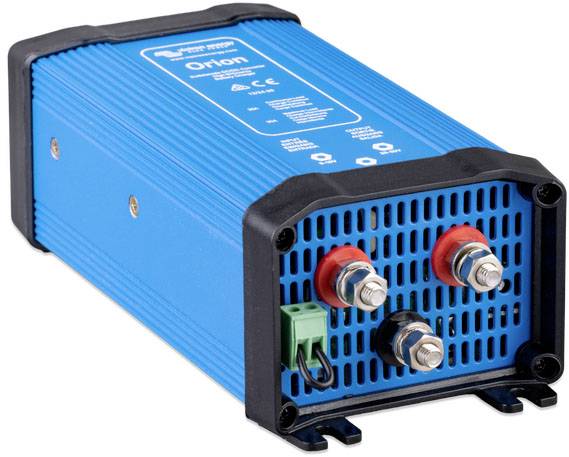

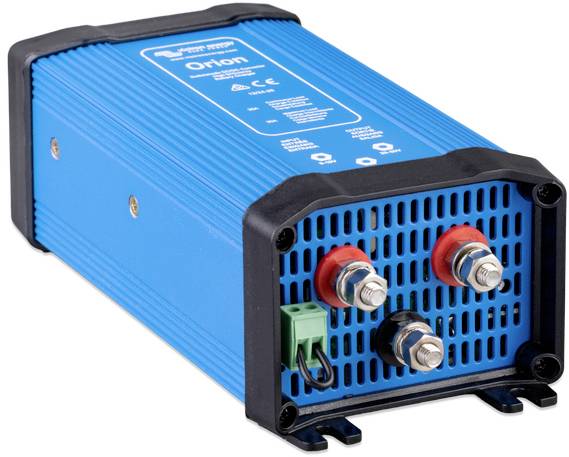

Victron Energy Converter Orion 12/24-20 - 26.4 V Remote operation
EAN:
Part number:
Item no:
Highlights & Details
DC/DC Converters
- With adjustable output
- Remote-controlled on/off connection
- Easy to set up
Technical specifications
- Input voltage
9 - 18 V
- Product type
Converter
- Output voltage
26.4 V
- Nominal load efficiency
93 %
- Remote control
Yes
- Weight
900 g
- Width
88 mm
- Height
65 mm
- Length
195 mm
- Type
Orion 12/24-20
- Features
Remote operation
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2497163 Victron Energy Converter Orion 12/24-20 - 26.4 V Remote operation
Description
The remote-controlled on/off connection means that no high-current switch is required in the input cabling. The remote-controlled on/off connection can be controlled with a power-saving switch or by the run/stop switch of the motor.
All models with an adjustable output can also be used as battery charger. For example, to charge a 12 volt starter or additional battery in an otherwise 24V system. All models with adjustable output can be switched in parallel to increase the output current. Up to five devices can be connected in parallel.
This text is machine translated.
All models with an adjustable output can also be used as battery charger. For example, to charge a 12 volt starter or additional battery in an otherwise 24V system. All models with adjustable output can be switched in parallel to increase the output current. Up to five devices can be connected in parallel.
This text is machine translated.
Scope of delivery
- Orion
- 4 insulated blade terminals with 6.3 mm crimp socket
- Instructions
