Buy Victron Energy Converter Orion IP67 12/24-50 1200 W 12 V DC - 24 V

Blue voltage converter with connection terminals and red indicator light, labelled with 'INPUT', 'GND' and 'OUTPUT'.

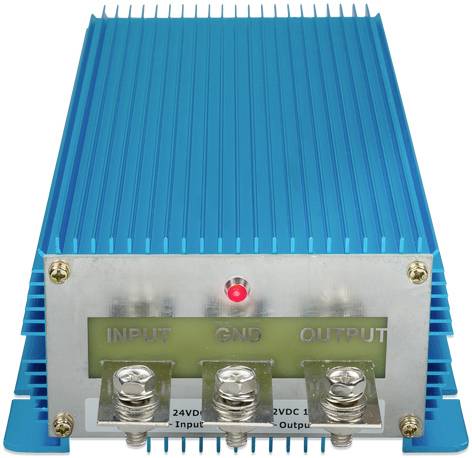

Blue voltage converter with "INPUT", "GND" and "OUTPUT" terminals, LED indicator glowing red. Device for electrical current conversion.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

DC/DC Converters

Waterproof, shock-proof and fire-retardant
Hiccup mode
Wide input voltage range

Technical specifications

Protection class IP67
Temperature range -40 to +70 °C

Input voltage: 10 - 15 V DC

Product type: Converter

Output voltage: 24 V

: 1200 W

Input voltage: 12 V DC

Inputs: Cable

Output: open ends

Nominal load efficiency: 96 %

Permanent current: 50 A

Weight: 3000 g

Width: 127 mm

Height: 340 mm

Depth: 63 mm

Type: Orion IP67 12/24-50

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2497184 Victron Energy Converter Orion IP67 12/24-50 1200 W 12 V DC - 24 V

User & Safety Instructions

User & Safety Instructions 2497184 Victron Energy Converter Orion IP67 12/24-50 1200 W 12 V DC - 24 V

Description

Fully covered: Waterproof, shock-proof and fire-retardant
Water, oil or dirt cannot damage the Orion IP67 DC-DC converter. The housing is made of cast aluminum and the electronics are covered with resin.

Extra-long input and output cable
Thanks to the 1.8 m long cable, no additional extension cables are needed in most cases. This supports safe operation in an area where protection class IP67 is required.

Wide input voltage range
With an input voltage range of 15 to 40 volts, a stable output is ensured during voltage surges or undervoltage caused by other devices connected to the same battery.

Overheating protection
Can be used in a hot environment like a machine room.
