Name: Victron Energy Converter Orion-Tr 24/24-17A 400 W 24 V - 24.2 V Remote operation
Brand: Victron Energy
SKU: 2497170

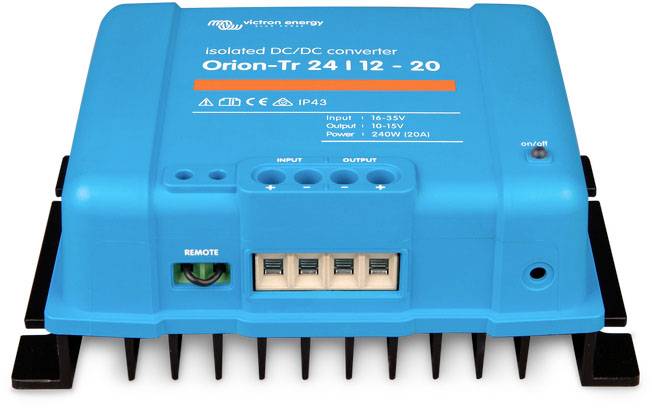

Blue Victron Energy DC/DC Converter 'Orion-Tr 24 | 12 - 20'. Shows input and output connections, suitable for remote operation.

Blue DC/DC converter with the inscription 'Orion-Tr 24 | 12 - 20'. Shows inputs, outputs and technical specifications on the front.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DC/DC Converters

Remote-controlled on/off switching
Adjustable output voltage
Short-circuit-proof and can be connected in parallel

Technical specifications

Adjustable output voltage range 20 - 35 V.
Temperature range -20 to +55 °C
Cable cross-section 16 mm² AWG6

Input voltage: 20 - 35 V

Product type: Converter

Output voltage: 24.2 V

: 400 W

Input voltage: 24 V

Inputs: Screw terminals

Output: Screw terminal

Nominal load efficiency: 89 %

Permanent current: 17 A

Remote control: Yes

Weight: 1600 g

Width: 186 mm

Height: 130 mm

Length: 70 mm

Depth: 70 mm

Type: Orion-Tr 24/24-17A

Features: Remote operation

Efficiency (max.): 89 %

Input voltage (max.): 35 V

Min. input voltage: 20 V

Operating temperature (min.): -20 °C

Max. output current: 25 A

Output current (min.): 17 A

Output voltages: 24.2 V

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Input voltage

Nominal load efficiency

Output voltage

Victron Energy Converter Orion-Tr 24/24-17A 400 W 24 V - 24.2 V Remote operation

Item no:2497170

Unavailable

Conrad Electronic

This article

400 W

20 - 35 V

24 V

89 %

24.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Victron Energy Converter Orion-Tr 24/12-9A 110 W 12 V - 12.2 V Remote operation

Item no:2497174

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

110 W

8 - 17 V

12 V

87 %

12.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Victron Energy Converter Orion-Tr 48/24-5A 120 W 48 V - 24.2 V Remote operation

Item no:2497164

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

120 W

32 - 70 V

48 V

86 %

24.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Victron Energy Converter Orion-Tr 48/48-2,5A 120 W 48 V - 48.2 V Remote operation

Item no:2497173

Dispatches on Thu 19 Nov

Conrad Electronic

120 W

32 - 70 V

48 V

89 %

48.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Victron Energy Converter Orion-Tr 12/12-18A 220 W 12 V - 12.2 V Remote operation

Item no:2497181

Unavailable

Conrad Electronic

220 W

8 - 17 V

12 V

87 %

12.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Victron Energy Converter Orion-Tr 12/12-30A 360 W 12 V - 12.2 V Remote operation

Item no:2497172

Unavailable

Conrad Electronic

360 W

10 - 17 V

12 V

87 %

12.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Victron Energy Converter Orion-Tr 12/24-15A 360 W 12 V - 24.2 V Remote operation

Item no:2497156

Unavailable

Conrad Electronic

360 W

10 - 17 V

12 V

88 %

24.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Victron Energy Converter Orion-Tr 12/24-5A 120 W 12 V - 24.2 V Remote operation

Item no:1924570

Unavailable

Conrad Electronic

120 W

8-17 V

12 V

88 %

24.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Victron Energy Converter Orion-Tr 24/12-20A 240 W 24 V - 12.2 V Remote operation

Item no:1924494

Unavailable

Conrad Electronic

240 W

18-35 V

24 V

88 %

12.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Victron Energy Converter Orion-Tr 24/48-8,5A 400 W 24 V - 48.2 V Remote operation

Item no:2497171

Unavailable

Conrad Electronic

400 W

20 - 35 V

24 V

89 %

48.2 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2497170 Victron Energy Converter Orion-Tr 24/24-17A 400 W 24 V - 24.2 V Remote operation

User & Safety Instructions

User & Safety Instructions 2497170 Victron Energy Converter Orion-Tr 24/24-17A 400 W 24 V - 24.2 V Remote operation

Description

Remote-controlled on/off switching
The remote-controlled on/off switching makes a high-current switch at the input cabling superfluous. The remote-controlled on/off connection can be controlled with a power-saving switch or by the motor's run/stop switch (see manual).

Adjustable output voltage
Can also be used as a battery charger, for example for charging a 12 volt starter or additional battery in an otherwise 24 V system.
All models are short circuit proof and can be connected in parallel to increase the output current. An unlimited number of devices can be connected in parallel.

IP43 protective
If the device is installed with the screw terminals facing downwards.
