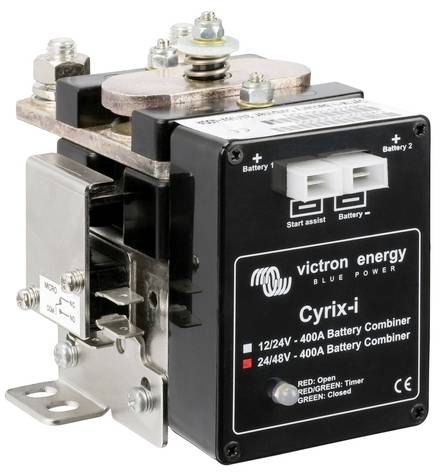

Victron Energy Cyrix-i 12/24V 400A Relay Nominal voltage: 12 V, 24 V Switching current (max.): 400 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Nominal voltage
12 V
24 V
Switching voltage (max.)
36 V DC
Switching current (max.)
400 A
Type
Cyrix-i 12/24V 400A
Datasheet (PDF)
Highlights & Details
Victron Energy Cyrix-i 12/24V 400A Relay Nominal voltage: 12 V, 24 V Switching current (max.): 400 A 1 pc(s)
- Continuous current at 12V or 24V 400A
- Intelligent battery monitoring
- Long bolts so that more than one power cable can be connected
Technical specifications
- Product type
Relay
- Type
Cyrix-i 12/24V 400A
- Connection
Bolt fixings
- Factory colour
Black
- Min. pick-up voltage
12 V DC
- Max. pick-up voltage
24 V DC
- Nominal voltage
12 V
24 V
- Switching voltage (max.)
36 V DC
- Switching current (max.)
400 A
- Features
+ LED
- Length
102 mm
- Width
110 mm
- Height
78 mm
- Dim
(L x W x H) 102 x 110 x 78 mm
- Content
1 pc(s)
- Weight
900 g
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059033 Victron Energy Cyrix-i 12/24V 400A Relay Nominal voltage: 12 V, 24 V Switching current (max.): 400 A 1 pc(s)
Datasheet 3059033 Victron Energy Cyrix-i 12/24V 400A Relay Nominal voltage: 12 V, 24 V Switching current (max.): 400 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3059033 Victron Energy Cyrix-i 12/24V 400A Relay Nominal voltage: 12 V, 24 V Switching current (max.): 400 A 1 pc(s)
Description
The Cyrix battery coupler is a high-performance microprocessor-controlled relay that automatically switches batteries in parallel when one of them has reached a specified voltage (indicating that the battery is being charged) and that disconnects the batteries if the voltage drops below the maintenance voltage value (indicating that: one or both batteries are being discharged). Cyrix battery couplers are excellently suited for replacing separator diodes. Its main feature is that there is virtually no loss of voltage so that the output voltage of the AC generators or battery chargers does not need to be increased.
This text is machine translated.
This text is machine translated.
Features
- Protection against overheating
- 12/24 V automatic detection of the voltage range
- Voltage sensing in both directions and power supply of both the batteries
Scope of delivery
- Battery relay
