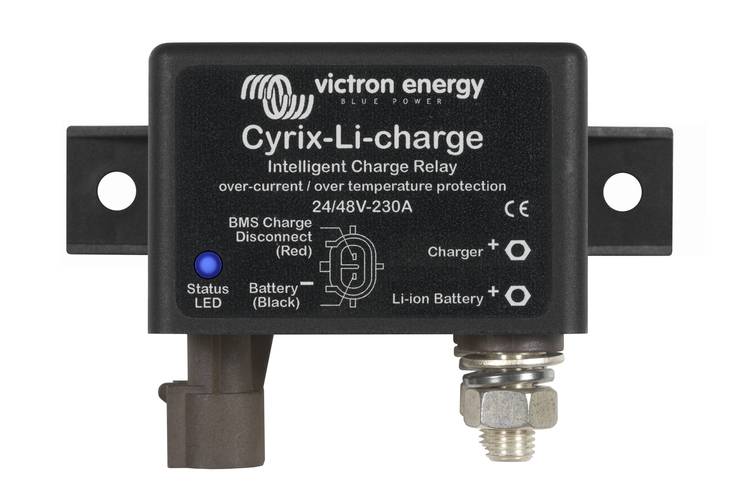

Victron Energy Cyrix-Li-Charge 24/48V-23 CYR020230430 Chip-controlled relay
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Relay Victron Cyrix Li-Charge 24/48V-230A
- Continuous current and switching capacity at 24V or 48V: 230A
- Cyrix-Li-load
- Cyrix-Li-Charge
- Cyrix-Li-ct
- LED status indicator
Technical specifications
- Product type
Chip-controlled relay
- Length
100 mm
- Width
60 mm
- Height
50 mm
- Dim
(L x W x H) 100 x 60 x 50 mm
- Factory colour
Black
- Weight
0.3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059060 Victron Energy Cyrix-Li-Charge 24/48V-23 CYR020230430 Chip-controlled relay
Datasheet 3059060 Victron Energy Cyrix-Li-Charge 24/48V-23 CYR020230430 Chip-controlled relay
User & Safety Instructions
User & Safety Instructions 3059060 Victron Energy Cyrix-Li-Charge 24/48V-23 CYR020230430 Chip-controlled relay
Description
The Cyrix battery coupler is a high-performance microprocessor-controlled relay that automatically switches batteries in parallel when one of them has reached a specified voltage (indicating that the battery is being charged) and that disconnects the batteries if the voltage drops below the maintenance voltage value (indicating that: one or both batteries are being discharged). Cyrix battery couplers are excellently suited for replacing separator diodes. Its main feature is that there is virtually no loss of voltage so that the output voltage of the AC generators or battery chargers does not need to be increased.
This text is machine translated.
This text is machine translated.
Features
- Continuous current and switching capacity at 24V or 48V: 230A
- Cyrix-Li-load
- Cyrix-Li-Charge
- Cyrix-Li-ct
- LED status indicator
Scope of delivery
- Relays
