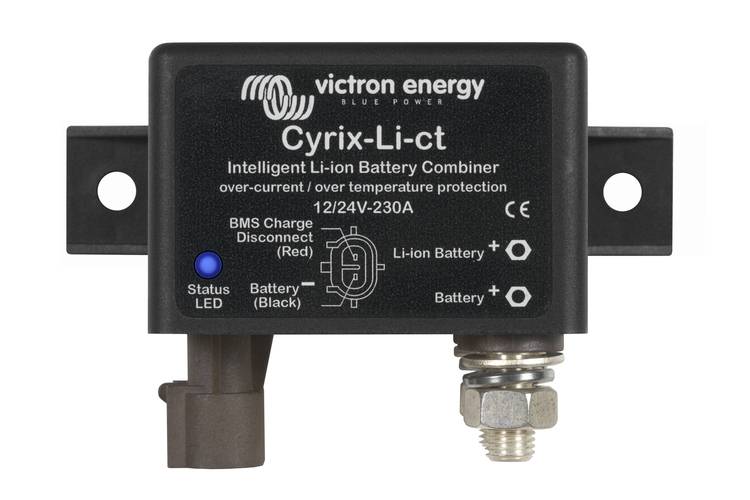

Victron Energy Cyrix-Li-ct 12/24V 230A CYR010230412 Battery coupler
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Battery coupler Victron Cyrix-Li-CT 12/24V 230A
- Intelligent battery monitoring
- LED status indicator
- 12/24 V automatic detection of the voltage range
Technical specifications
- Product type
Battery coupler
- Length
65 mm
- Width
100 mm
- Height
50 mm
- Material
Plastic
- Dim
(L x W x H) 65 x 100 x 50 mm
- Factory colour
Black
- Weight
0.3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3058973 Victron Energy Cyrix-Li-ct 12/24V 230A CYR010230412 Battery coupler
Datasheet 3058973 Victron Energy Cyrix-Li-ct 12/24V 230A CYR010230412 Battery coupler
User & Safety Instructions
User & Safety Instructions 3058973 Victron Energy Cyrix-Li-ct 12/24V 230A CYR010230412 Battery coupler
Description
The Cyrix battery coupler is a high-performance microprocessor-controlled relay that automatically switches batteries in parallel when one of them has reached a specified voltage (indicating that the battery is being charged) and that disconnects the batteries if the voltage drops below the maintenance voltage value (indicating that: one or both batteries are being discharged). Cyrix battery couplers are excellently suited for replacing separator diodes. Its main feature is that there is virtually no loss of voltage so that the output voltage of the AC generators or battery chargers does not need to be increased.
This text is machine translated.
This text is machine translated.
Features
- Intelligent battery monitoring
- Protection against overheating
- LED status indicator
- 12/24 V automatic detection of the voltage range
- Parallel connection for emergency (Start Assist)
- Voltage sensing in both directions and power supply of both the batteries
- The starter battery takes precedence
Scope of delivery
- Battery coupler
