Victron Energy EV Charging Station Victron NS - Blue eMobility charging port Type 2 32 A 22 kW App
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

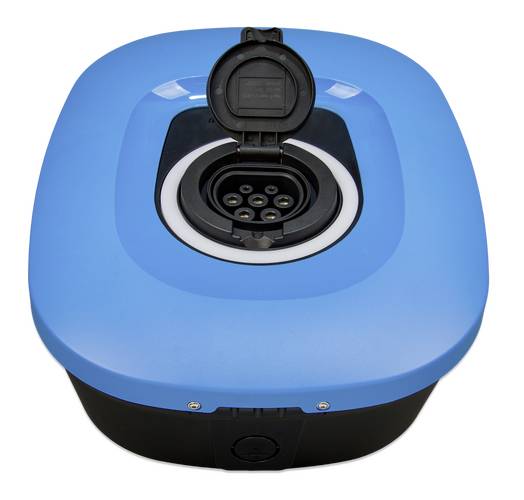

EV Charging Station Victron NS - Blue
- Charging output 22 kW
- 3x 230 VAC / 50 Hz
- Charging current 3x 32A
- Own consumption 15 mA
Technical specifications
- Product type
eMobility charging port
- Authorisation
App
- Charger connectors
Type 2
- Charging current
32 A
- Charging capacity
22 kW
- No. of phases
1- & 3-phase
- Nominal voltage
230 V
IP44
- Factory colour
Blue
- Width
292 mm
- Height
372 mm
- Depth
122 mm
- Weight
3 kg
- Nominal current
32 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2973227 Victron Energy EV Charging Station Victron NS - Blue eMobility charging port Type 2 32 A 22 kW App
User & Safety Instructions
User & Safety Instructions 2973227 Victron Energy EV Charging Station Victron NS - Blue eMobility charging port Type 2 32 A 22 kW App
Description
The charging station of Victron Energy can be used in 3-phase as well as 1-phase. It provides a maximum of 22kW AC in 3-phase mode or 7.3kW in 1-phase mode. The internal WLAN module can be configured for both initial setup and monitoring in Access Point mode or Station mode. For protection, an external residual current circuit breaker is needed (not included in the delivery). A cable cross-section of 6-10 mm² is recommended for the installation. A qualified electrician should be consulted for connection.
Powerful E-vehicle charging station
The EV Charging Station NS (Electric Vehicle Charging Station NS) can be operated both three-phase and single-phase. It provides maximum
22 kW AC in three-phase operation and 7.3 kW in one-phase operation It is equipped with a blue front. Alternatively, a
Black or white front separately.
WLAN communication
802.11 b/g/n for configuration, monitoring and control. The internal WLAN module can be used for initial setup as well as for
Monitoring is configured in Access Point mode or Station mode.
Easy operation and control via Bluetooth and the VictoronConnect APP
At a glance, you have full control and overview of all operational parameters and session statistics.
Ring light for quick display of device status
The charging station has a fully programmable RGB light ring around the charging connection with which the device status itself
quickly. It can be programmed via the integrated web interface so that it depends on the current status (disconnected,
Charged, charged, etc.) different light effects displayed.
This text is machine translated.
Powerful E-vehicle charging station
The EV Charging Station NS (Electric Vehicle Charging Station NS) can be operated both three-phase and single-phase. It provides maximum
22 kW AC in three-phase operation and 7.3 kW in one-phase operation It is equipped with a blue front. Alternatively, a
Black or white front separately.
WLAN communication
802.11 b/g/n for configuration, monitoring and control. The internal WLAN module can be used for initial setup as well as for
Monitoring is configured in Access Point mode or Station mode.
Easy operation and control via Bluetooth and the VictoronConnect APP
At a glance, you have full control and overview of all operational parameters and session statistics.
Ring light for quick display of device status
The charging station has a fully programmable RGB light ring around the charging connection with which the device status itself
quickly. It can be programmed via the integrated web interface so that it depends on the current status (disconnected,
Charged, charged, etc.) different light effects displayed.
This text is machine translated.
Features
- LED
- Programmable (Wi-Fi)
- Electronic safety function
- Option (VRM, GX Device)
- IP44
Scope of delivery
- Charger
Hints
This product may only be installed by qualified personnel (approved electrician).
Make sure that the AC input is protected by a fuse or a magnetic circuit breaker with a maximum rated current of 40 A. The cable cross-section must be dimensioned accordingly. If the AC input power supply is designed to be lower, the fuse or the magnetic circuit breaker should be dimensioned accordingly.
The manufacturer recommends the use of a power supply protected by an RCD Type B. Make sure that the residual current circuit breaker corresponds to the maximum power used, i.e. use a residual current circuit breaker type B with 40 A if you mainly charge at 22 kW, or a correspondingly lower if you charge with less power.
