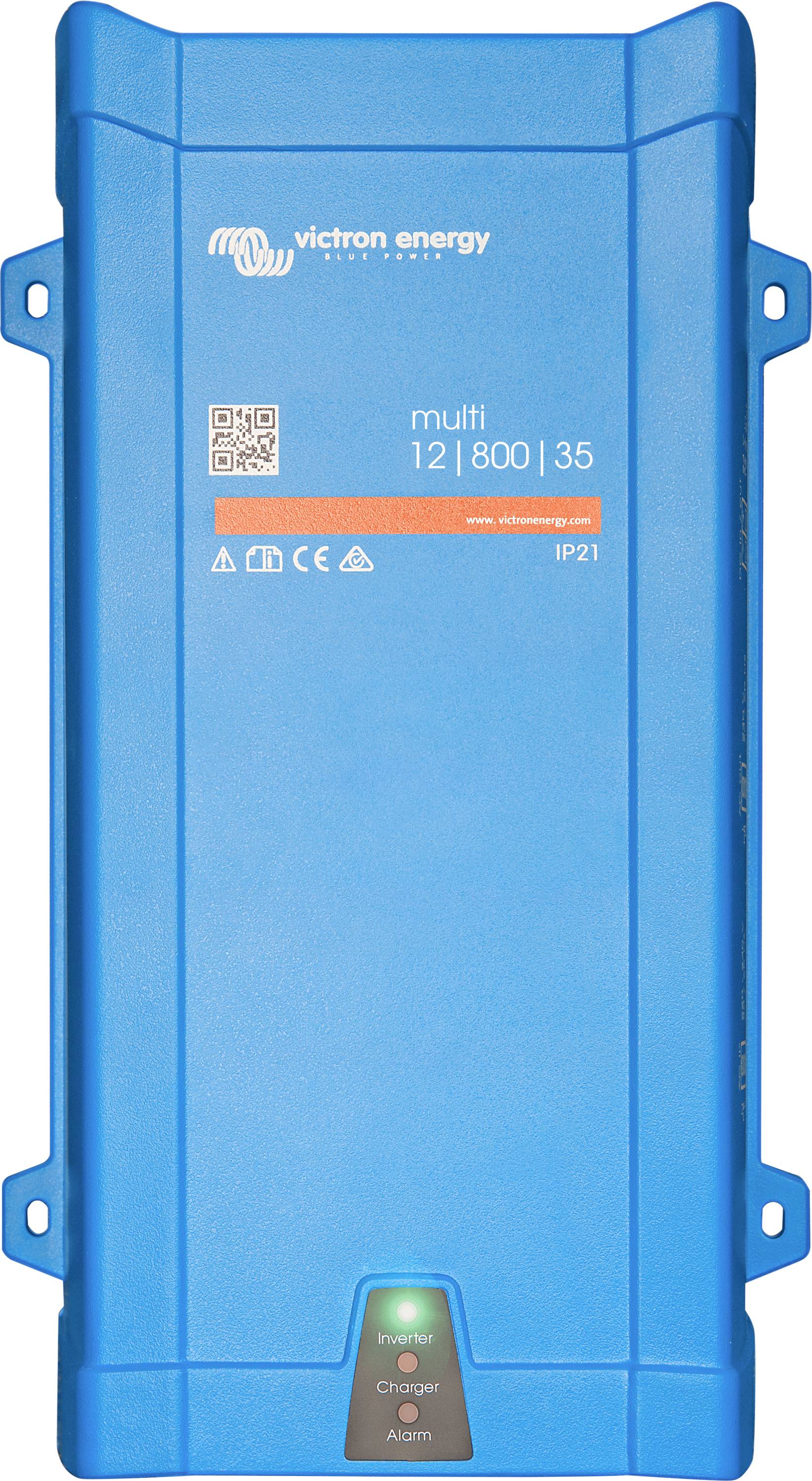

Victron Energy Grid-tie inverter Multiplus C 12/800/35-16 800 W - 230 V AC Built-in charge controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Inverter / charger Victron C 12/800/35-16
- Two AC outputs
- Virtually unlimited power thanks to parallel switching
- Three phase operation
- PowerControl - Operate with limited generator power, limited on-land or on-line power
- PowerAssist - "Power up" of generators and land connection support
- Solar current: AC power even in case of power failure
Technical specifications
- Transfer switch 16 A
- AC connection G-ST18i plug
- Charging current max. 35 A
- Temperature range -40 to +65 °C1
- Input frequency 45 - 65 Hz
- Input voltage
9.5 - 17 V
- Product type
Grid-tie inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
800 W
- Inputs
Cable
- Output
open ends
- Outlets
2
- Output frequency
50 Hz
- Remote control
Yes
- Weight
10 kg
- Cooling method
Fan
- Width
214 mm
- Height
375 mm
- Length
21.4 mm
- Depth
110 mm
- Peak output power
1600 W
- Type
Multiplus C 12/800/35-16
- Features
Built-in charge controller
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3364118 Victron Energy Grid-tie inverter Multiplus C 12/800/35-16 800 W - 230 V AC Built-in charge controller
User & Safety Instructions
User & Safety Instructions 3364118 Victron Energy Grid-tie inverter Multiplus C 12/800/35-16 800 W - 230 V AC Built-in charge controller
Description
The MultiPlus C 12/800/35 from Victron is a device combination of a 12V 700W sine inverter and battery charger. The firmly integrated battery charger has a remarkable 35 A, with which even large batteries can be quickly fully charged, if the land/power supply is available. The 12 V sine wave voltage transformer built into the MultiPlus converts your electricity from the battery into 230 V AC. The real sine wave means that the power quality is perfect for sensitive electronic devices.
Extensive and flexible use
Since it also has a lightning-fast 16 A transfer switch in addition to the inverter and charger, it is an ideal inverter for mobile home, boat or yacht and for the mains-coupled range of the uninterruptible power supply in case of power fluctuations or power failures. Also for use in grid-connected home-consumption systems that only draw electricity from the supplier when the battery power is no longer sufficient or as a UPS solution in which the MultiPlus enters if the power from the network operator suddenly fails and thus ensures an uninterrupted power supply.
This text is machine translated.
Extensive and flexible use
Since it also has a lightning-fast 16 A transfer switch in addition to the inverter and charger, it is an ideal inverter for mobile home, boat or yacht and for the mains-coupled range of the uninterruptible power supply in case of power fluctuations or power failures. Also for use in grid-connected home-consumption systems that only draw electricity from the supplier when the battery power is no longer sufficient or as a UPS solution in which the MultiPlus enters if the power from the network operator suddenly fails and thus ensures an uninterrupted power supply.
This text is machine translated.
Features
- 2 charger outputs
- Parallel connection
- Three-phase operation
- Reliable and durable quality
- Integrated charge regulator
- Adaptive 4-stage charging characteristic
- High efficiency
- Power Assist
- High startup power
- Programmable relay
- Remote on/off switching possible
- Short-circuit-proof
- Temperature control
- Overload protection
- Alarm function
- LED indicator
- Reverse polarity protection
- Remote monitoring and control
- Overcharge protection
- Battery save mode
- Two DC outputs
- Temperature compensation
- Bearing mode
- Robust aluminum housing
Scope of delivery
- Inverter
- Temperature sensor
- User manual.
