Victron Energy Inverter 650 W 12 V - 230 V AC Sine wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

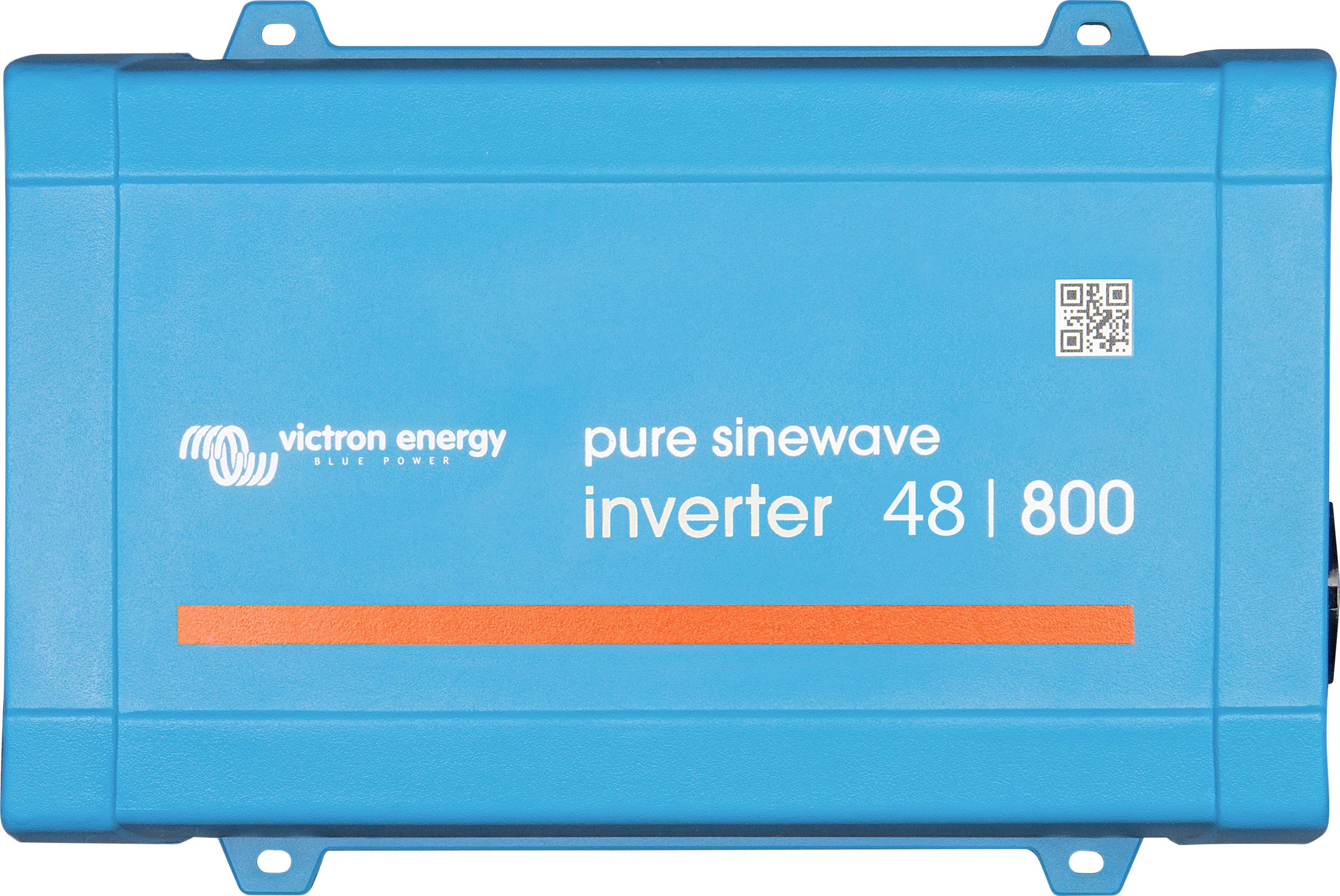

Victron Phoenix 48/800 VE.direct IEC inverter
- 650 watt continuous power at 230V 50Hz sinus voltage
- 800 Watt continuous output with non-linear load
- Full control of almost all system parameters
- Suitable for all standard 48V batteries
- 230V AC power with pure sine wave provides a perfect current quality
- Freely programmable switch on and off thresholds
- Freely adjustable output voltage in the range from 210 to 485V
Technical specifications
- Input voltage
Input voltage range 9,2-17 V DC
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
650 W
- Input voltage
12 V
- Output frequency
50 Hz or 60 Hz +/-0.1 %
- Permanent current
The continuous power at 25 °C is 300 W and at 40 °C 260 W
- Remote control
Yes
- Weight
2.4 kg
- Cooling method
Fan
- Width
165 mm
- Height
86 mm
- Depth
260 mm
- Peak output power
800 W
- Standby consumption
Null-Last-Leistung: 5,6/6,1/8,5 W
Null-Last-Leistung im ECO-Modus (Standard): 1/1,5/3,0 W (abhängig von 12V/24V/48V)
- Type
PIN481801100
- Features
Sine wave
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3454145 Victron Energy Inverter 650 W 12 V - 230 V AC Sine wave
User & Safety Instructions
User & Safety Instructions 3454145 Victron Energy Inverter 650 W 12 V - 230 V AC Sine wave
Conformity certificate
Conformity certificate 3454145 Victron Energy Inverter 650 W 12 V - 230 V AC Sine wave
Description
The Victron Phoenix 48/800VE. Direct (MPN PIN481800200) is a small sine wave inverter with 650W continuous output. The device converts 48V DC voltage from your battery into 230V AC current with a pure sine wave voltage and no-compromise power quality, which is also perfectly suited to sensitive electronic products.
Trend-setting efficiency and modern system communication
The efficiency of the Phoenix is excellent and thanks to the ECO-mode one of the highest in its class. The VE.Direct communication port allows you to connect the device to a computer or smartphone with optional accessories, and to program some system parameters such as the switch-off voltage and switch-on voltage when the battery is empty. Many other configuration options such as output frequency and output voltage as well as a 2-pole alarm contact are among the performance features of this voltage transformer.
The range of services offered by the Phoenix series VE.Direct 250-800 is unique on the market at the moment and goes far beyond the capabilities of other devices of the same performance classes.
Technical highlights of the Phoenix VE.Direct Series 250VA – 800VA
• VE.Direct connection allows the power transformer to be connected to a computer (VE.Direct to USB interface cable required) or your smartphone on which you can always check the status of your device with the free Victron APP (VE.Direct Bluetooth Smart dongle required).
• Fully programmable parameters: Threshold values for triggering and resetting alarms at low battery charge + Threshold for switching off and restarting at low battery voltage values + Output voltage 210 - 485V + Threshold for switching off and restarting at low battery voltage values + Frequency 50 Hz or 60 Hz + Threshold for ECO mode ON/OFF and ECO mode sensor
• ECO mode: In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode the inverter then switches on for a short period of time (adjustable default setting: Every 2.5 seconds). If the load exceeds a preset threshold value, the inverter remains switched on.
Proven reliability of the current converter: The complete bridging process with an additional ring transformer topology has been proven for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or the ambient temperature).
High starting power: This is needed for switching on loads such as voltage transformers for LED-lamps, halogen lamps or power tools.
Remote on/off switching possible: A remote controlled on/off switch can be connected with a two-pole plug or between the positive terminal of the battery and the left contact of the two-pole plug.
This text is machine translated.
