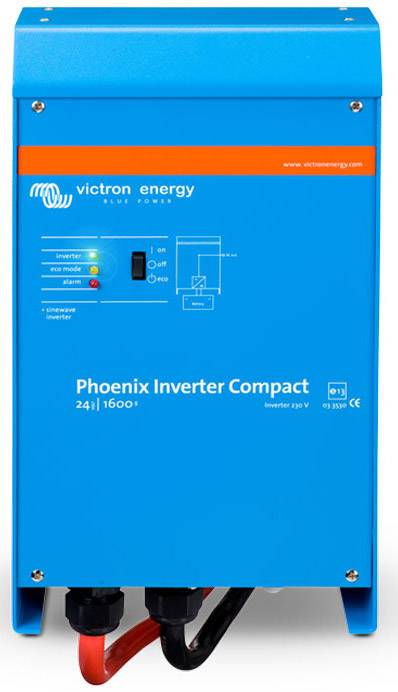

Victron Energy Inverter Compact 24/1600 1600 VA 24 V DC - 230 V AC Sine wave, Priority switch, Mains synchronisation
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Inverter Victron compact 24/1600 230V VE.bus
- SinusMax – top technology
- Highest start performance
- Virtually unlimited power thanks to parallel circuit and three-phase operation
Technical specifications
- Input voltage
19 – 33 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
1600 VA
- Input voltage
24 V DC
- Nominal load efficiency
93 %
- Output frequency
50 Hz
- Weight
10 kg
- Width
214 mm
- Height
375 mm
- Depth
110 mm
- Peak output power
3000 W
- Type
Compact 24/1600
- Features
Sine wave
Priority switch
Mains synchronisation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3436359 Victron Energy Inverter Compact 24/1600 1600 VA 24 V DC - 230 V AC Sine wave, Priority switch, Mains synchronisation
User & Safety Instructions
User & Safety Instructions 3436359 Victron Energy Inverter Compact 24/1600 1600 VA 24 V DC - 230 V AC Sine wave, Priority switch, Mains synchronisation
Description
SinusMax – top technology
The Phoenix inverter series was developed for commercial use and is suitable for a large number of applications. The development was uncompromisingly aimed at an inverter with clean
Sine output at Hohem efficiency By using the latest hybrid RF technology, it was possible to present a quality product with compact dimensions and low weight that would suit any desired product
Can deliver performance without any problems.
Highest start performance
An essential feature of the SinusMax technology is the especially high starting power. This is not possible with conventional HF-technology. Phoenix inverters are able to withstand the high starting currents of, for example
Cooling compressors, tool motors, and the like.
Virtually unlimited power thanks to parallel circuit and three-phase operation
Up to six inverter units can be connected in parallel for increased performance. Six 24/3000 units can, for example, deliver 15kW / 18kVA power. Three-phase operation is also possible.
Load switching to other AC sources: The automatic load change-over switch
For lower power ratings, we recommend the Filax automatic switch. Computers and other sensitive electronic devices can thus be operated practically interruption-free since the switching times are very short (less than 20 msec).
This text is machine translated.
The Phoenix inverter series was developed for commercial use and is suitable for a large number of applications. The development was uncompromisingly aimed at an inverter with clean
Sine output at Hohem efficiency By using the latest hybrid RF technology, it was possible to present a quality product with compact dimensions and low weight that would suit any desired product
Can deliver performance without any problems.
Highest start performance
An essential feature of the SinusMax technology is the especially high starting power. This is not possible with conventional HF-technology. Phoenix inverters are able to withstand the high starting currents of, for example
Cooling compressors, tool motors, and the like.
Virtually unlimited power thanks to parallel circuit and three-phase operation
Up to six inverter units can be connected in parallel for increased performance. Six 24/3000 units can, for example, deliver 15kW / 18kVA power. Three-phase operation is also possible.
Load switching to other AC sources: The automatic load change-over switch
For lower power ratings, we recommend the Filax automatic switch. Computers and other sensitive electronic devices can thus be operated practically interruption-free since the switching times are very short (less than 20 msec).
This text is machine translated.
