Victron Energy Inverter EasySolar ll 250/70 GX 3000 W - 230 V AC Built-in charge controller, Remote operation
EAN:
Part number:
Item no:
Highlights & Details
Inverter EasySolar ll 250/70 GX
- Integrated charge controller and 2 charging outputs
- Parallel connection and three-phase operation possible
- Adaptive 4-stage charging characteristics
- Reliability and long-lasting quality
Technical specifications
- Transfer switch 32 A
- Charging current max. 70 A
- Temperature range -40 to +65 °C
- Protection class IP21
- PV power max. 4000 W.
- AC: Input voltage range 187, 265 V/AC, 45, 65 Hz
- Input voltage
38, 66 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
3000 W
- Inputs
Cable
- Output
open ends
- Nominal load efficiency
95 %
- Output frequency
50 Hz
- Weight
26 kg
- Cooling method
Fan
- Width
275 mm
- Height
506 mm
- Depth
237 mm
- Peak output power
5500 W
- Standby consumption
20 mA
- Type
EasySolar ll 250/70 GX
- Features
Built-in charge controller
Remote operation
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203404 Victron Energy Inverter EasySolar ll 250/70 GX 3000 W - 230 V AC Built-in charge controller, Remote operation
Description

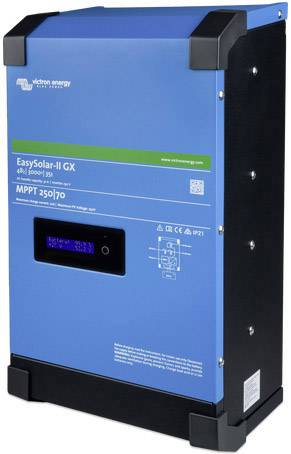

The EasySolar-II GX combines an MPPT solar charge controller, an inverter/charger and a control center in one housing. The product is easy to install and requires only a minimum amount of wiring.
EasySolar-II GX uses excess PV power to charge the batteries or feed power back into the grid, and discharges the battery or uses power from the grid to supplement a lack of PV power. If there is a power failure, EasySolar-II GX disconnects the mains connection and supplies the consumers. Loads that are to be switched off when no AC input is available can be connected to a second output (not displayed). These loads are taken into account by the PowerControland PowerAssist functions to limit the AC input to a safe value.
The complete solution for solar power
The Victron EasySolar-II GX integrates the following elements:
- a MultiPlus II inverter/charger
- a SmartSolar MPPT-TR solar charge controller
- a GX device with 2x 16 characters display
These elements are pre-wired and integrated into a single unit. This greatly simplifies most installations and saves time and money.
Display and WLAN
The display shows parameters for the battery, inverter and solar charging regulator. The parameters can be accessed using a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and change settings.
Solar Charge Controllers
The direct current output of the SmartSolar MPPT is connected in parallel to the direct current connection of the MultiPlus II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device

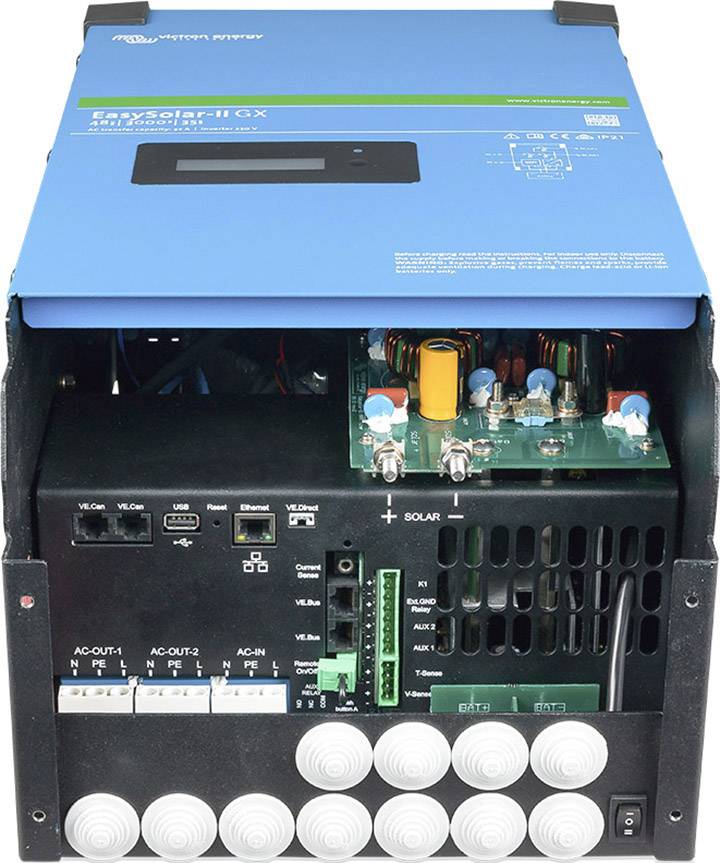

The integrated GX device includes:
- a VE.CAN interface. This can be used to connect Victron VE.CAN devices (e.g. VE.CAN MPPT). The connection can also be reconfigured via the remote console for use with a compatible CAN bus Li-Ion battery
- a USB port
- an Ethernet port
- a VE.Direct connection
The GX device controls the MultiPlus-II and the SmartSolar MPPT, each with a VE.Bus and a VE.Direct connection.
This text is machine translated.
EasySolar-II GX uses excess PV power to charge the batteries or feed power back into the grid, and discharges the battery or uses power from the grid to supplement a lack of PV power. If there is a power failure, EasySolar-II GX disconnects the mains connection and supplies the consumers. Loads that are to be switched off when no AC input is available can be connected to a second output (not displayed). These loads are taken into account by the PowerControland PowerAssist functions to limit the AC input to a safe value.
The complete solution for solar power
The Victron EasySolar-II GX integrates the following elements:
- a MultiPlus II inverter/charger
- a SmartSolar MPPT-TR solar charge controller
- a GX device with 2x 16 characters display
These elements are pre-wired and integrated into a single unit. This greatly simplifies most installations and saves time and money.
Display and WLAN
The display shows parameters for the battery, inverter and solar charging regulator. The parameters can be accessed using a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and change settings.
Solar Charge Controllers
The direct current output of the SmartSolar MPPT is connected in parallel to the direct current connection of the MultiPlus II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
- a VE.CAN interface. This can be used to connect Victron VE.CAN devices (e.g. VE.CAN MPPT). The connection can also be reconfigured via the remote console for use with a compatible CAN bus Li-Ion battery
- a USB port
- an Ethernet port
- a VE.Direct connection
The GX device controls the MultiPlus-II and the SmartSolar MPPT, each with a VE.Bus and a VE.Direct connection.
This text is machine translated.
Features
- 2 charging outputs
- VRM app for WLAN
- Parallel connection
- Three-phase operation
- Reliability and long-lasting quality
- Integrated charge controller
- Adaptive 4-stage charging characteristics
- High degree of efficiency
- PowerAssist
- High switch-on power
- Programmable relay
- Remote-controlled on/off switching possible
- Circuit breaker
- Temperature control
- Overload protection
- Alarm function
- LC display
- Reverse polarity protection
- Remote monitoring and control
- Overcharge protection
- Battery saver mode
- Two DC outputs
- Temperature compensation
- Storage mode
- System integration
- Two COM ports for general use
- Robust aluminum housing
Scope of delivery
- EasySolar ll 250/70 GX
- Battery temperature sensor
- User manual.
