Victron Energy Inverter MultiPlus C 12/1600/70-16 800 W - 230 V UPS function
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

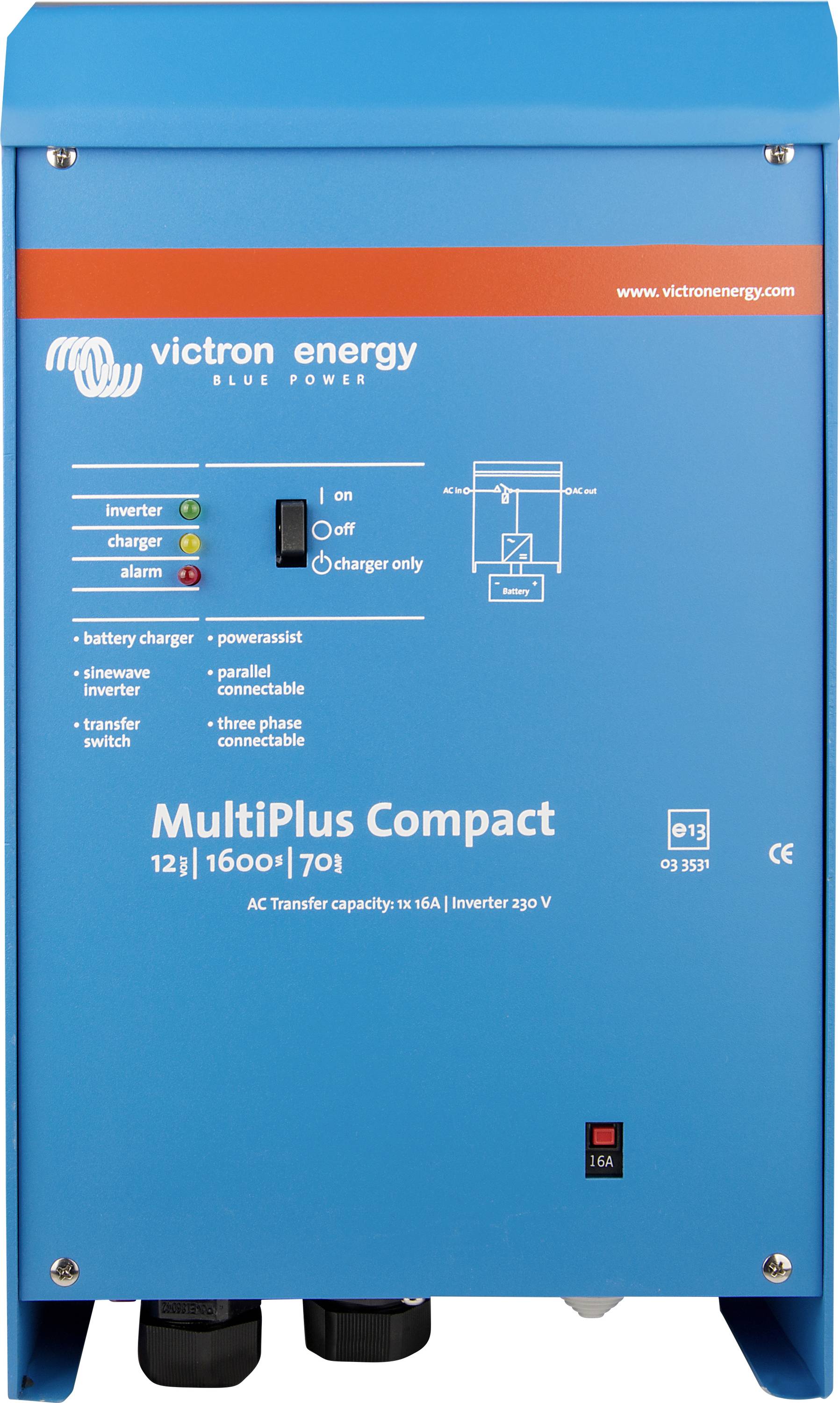

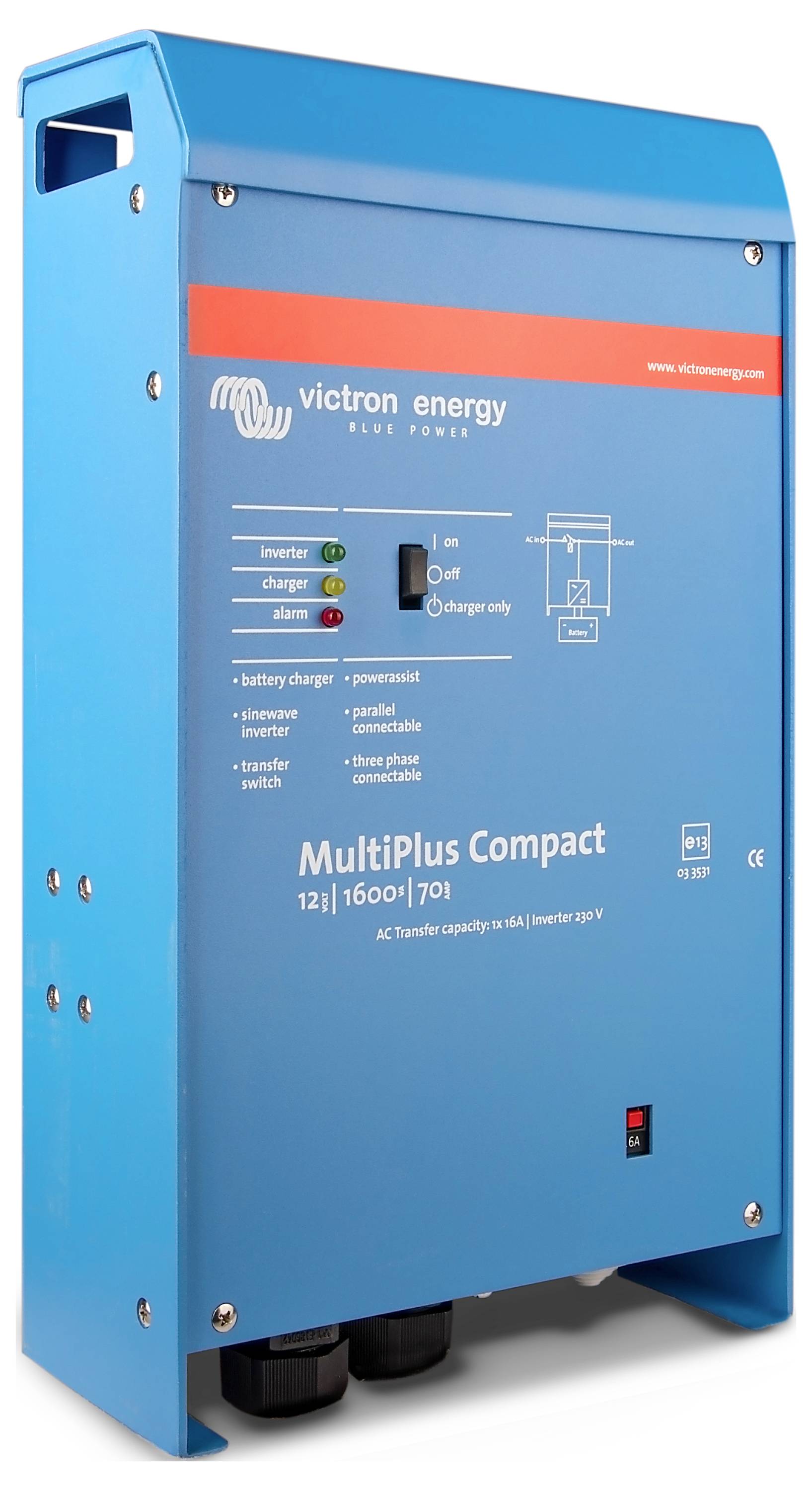

Inverter / Charger Victron MultiPlus C 12/1600/70-16 230V
- Seamless power supply – AC power even during power failure
- Second output for non-battery-discharged consumers (e.g. water heaters)
- Unlimited power through parallel connection – up to 25 kW/30 kVA when needed
- PowerControl & PowerAssist – optimizes generator and shore use
- Solar Power Compatibility – For grid and off grid systems
Technical specifications
- Protection class: IP21
- Protection: Short circuit at output, overload, battery voltage too high/too low, too high temperature, too high ripple voltage at input
- Operating temperature: -40°C to + +65°C.
- Input voltage
9.5V - 17V DC
- Product type
Inverter
- Output voltage
230 V
800 W
- Remote control
Yes
- Weight
5.5 kg
- Cooling method
Fan
- Width
214 mm
- Height
375 mm
- Depth
110 mm
- Type
MultiPlus C 12/1600/70-16
- Features
UPS function
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3454143 Victron Energy Inverter MultiPlus C 12/1600/70-16 800 W - 230 V UPS function
User & Safety Instructions
User & Safety Instructions 3454143 Victron Energy Inverter MultiPlus C 12/1600/70-16 800 W - 230 V UPS function
Conformity certificate
Conformity certificate 3454143 Victron Energy Inverter MultiPlus C 12/1600/70-16 800 W - 230 V UPS function
Description
Victron MultiPlus C 12/1200/50-16 – powerful inverter/charger for reliable power supply
The Victron MultiPlus C 12/1200/50-16 offers a reliable combination of inverter and charger for seamless operation in case of power failures and fluctuating land or generator current. With interruption-free switching in less than 20 milliseconds and a second output for important consumers, it is the ideal solution for vehicles, boats and off-grid systems.
Main features:
• Seamless power supply – AC power even during power failure
• Second output for non-battery-discharged consumers (e.g. water heaters)
• Unlimited power through parallel connection – up to 25 kW/30 kVA if required
• PowerControl & PowerAssist - Optimizes generator and land use
• Solar Power Compatibility – For grid and off-grid systems
Easy to configure and control via DIP switches, VE.Bus Quick Configure software or remote control with Bluetooth Smart.
This text is machine translated.
