Victron Energy Inverter MultiPlus-II 24/3000/70-32 230V GX 3000 W 24 V - 230 V Built-in charge controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

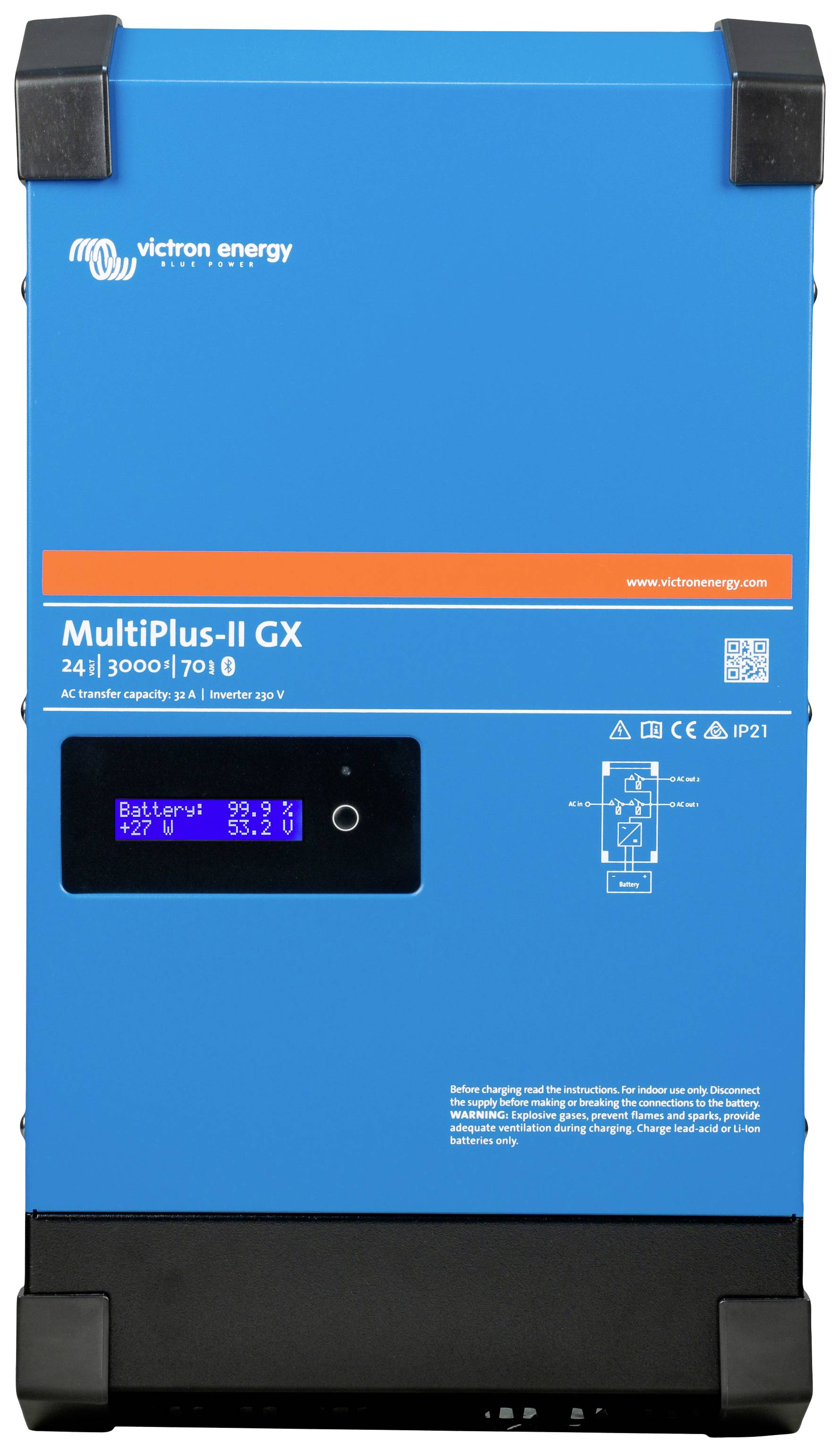

Inverter / charger Victron MultiPlus-II 24/3000/70-32 230V GX
- 230VAC/50Hz sinus wave
- Embedded GX device
- A MultiPlus-II with LCD and GX functionality
Technical specifications
- Input voltage
19 - 33 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
3000 W
- Input voltage
24 V
- Inputs
Screw terminals
- Output
Screw terminal
- Nominal load efficiency
94 %
- Output frequency
50 Hz
- Weight
19 kg
- Cooling method
Fan
- Width
268 mm
- Height
499 mm
- Depth
141 mm
- Type
MultiPlus-II 24/3000/70-32 230V GX
- Features
Built-in charge controller
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059041 Victron Energy Inverter MultiPlus-II 24/3000/70-32 230V GX 3000 W 24 V - 230 V Built-in charge controller
User & Safety Instructions
User & Safety Instructions 3059041 Victron Energy Inverter MultiPlus-II 24/3000/70-32 230V GX 3000 W 24 V - 230 V Built-in charge controller
Description
As an inverter/charger with integrated device network, the MultiPlus-II GX communicates with a solar charger, batteries and other devices in order to control a mains-coupled, remote or remote current installation. The MultiPlus-II GX can be operated in parallel for increased performance or to increase battery charge, and can also be configured for a three-phase power supply. A variety of advanced features, such as uninterrupted power supply, load limits, and battery power to complement limited AC power availability, can be controlled directly from your smartphone. Remote monitoring is also possible.
This text is machine translated.
This text is machine translated.
Features
- Display and WLAN
- GX device, i.e.:
- A BMS Can interface
- One USB port
- An Ethernet connection
- A VE direct connection
- Parallel- and three phase operation
Scope of delivery
- Inverter/charger
- User manual.
