Victron Energy Inverter RS Smart 48/6000 230V 6000 W 48 V - 230 V Sine wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Inverter / charger Victron RS Smart 48/6000 230V
- 5300 W
- 48 VDC
- 230 V AC / 50 Hz
- Charging current 100 A
Technical specifications
- Input voltage
38 - 62 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
6000 W
- Input voltage
48 V
- Inputs
Screw connection
- Output frequency
50 Hz
- Input current (max.)
50 A
- Remote control
Optional
- Weight
11 kg
- Cooling method
Fan
- Width
440 mm
- Height
425 mm
- Length
23 mm
- Depth
125 mm
- Peak output power
5300 W
- Standby consumption
20 W
- Type
RS Smart 48/6000 230V
- Features
Sine wave
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059048 Victron Energy Inverter RS Smart 48/6000 230V 6000 W 48 V - 230 V Sine wave
User & Safety Instructions
User & Safety Instructions 3059048 Victron Energy Inverter RS Smart 48/6000 230V 6000 W 48 V - 230 V Sine wave
Description

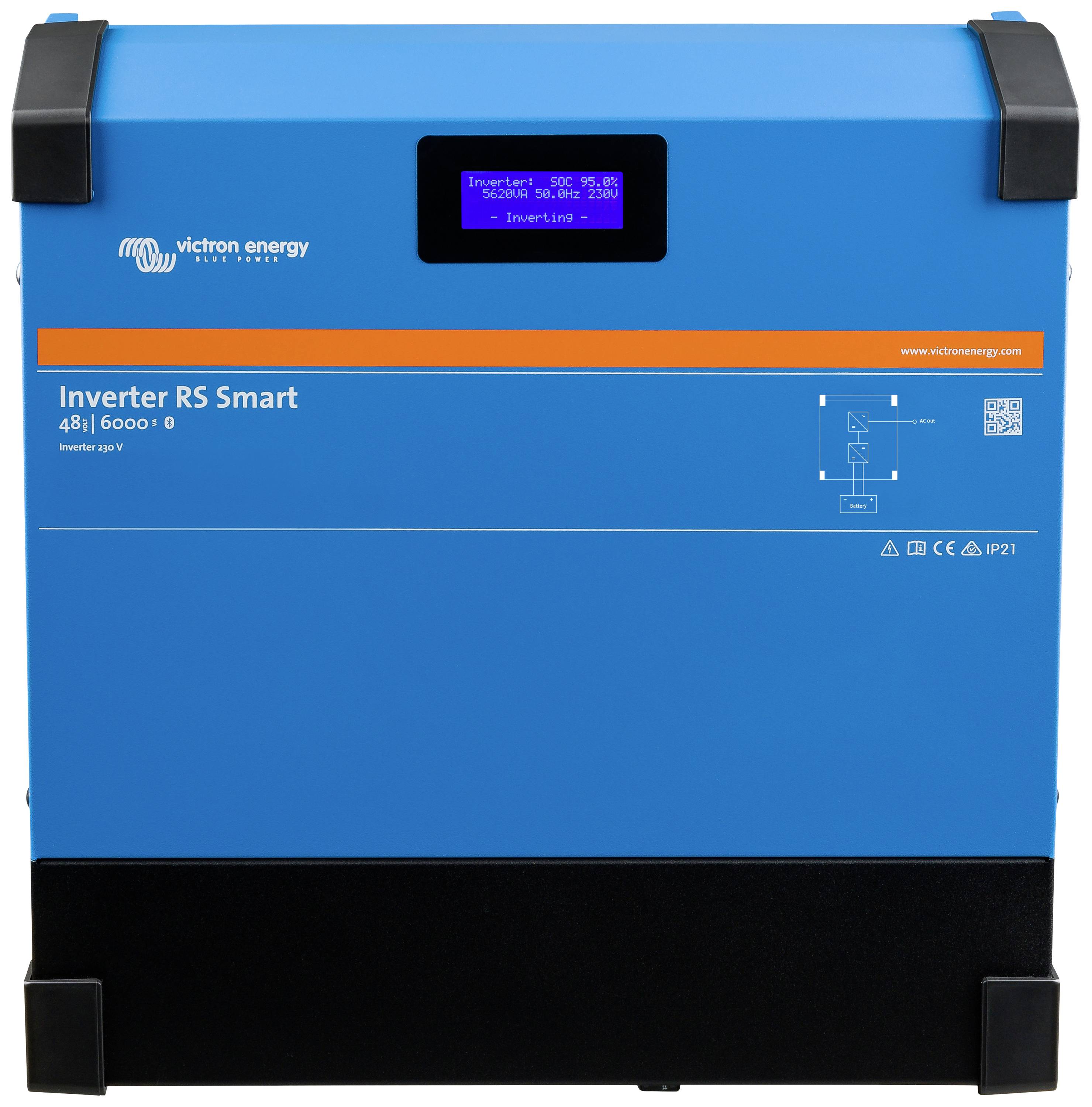

The RS Smart inverter is a powerful inverter with 48 VDC, 6 kVA and 230 VAC. Thanks to its modern design and high frequency technology, the inverter weighs only 11 kg and has excellent efficiency, low standby power and very quiet operation.
The inverter is equipped with a display for showing battery and inverter details. These parameters can also be read via Bluetooth from the VictronConnect APP. In addition, the inverter has a VE.Can connection for connection to an GX device for system monitoring.
This text is machine translated.
The inverter is equipped with a display for showing battery and inverter details. These parameters can also be read via Bluetooth from the VictronConnect APP. In addition, the inverter has a VE.Can connection for connection to an GX device for system monitoring.
This text is machine translated.
Features
- Sine wave voltage
- Own consumption 20 W.
- Without ACin
- Bat connection M8, 13 mm² Aout connection
- Air cooling
- LCD
- Programmable (VE.Direct / VE.Can / Bluetooth / Relays)
- Electronic safety function
- With fan
- Option (VRM, GX Device, Remote Switch)
- IP21
- Light, efficient and quiet
- Display and Bluetooth
- VE.Can and VE.Direct connection
Scope of delivery
- Inverter/charger
