Victron Energy Inverter Wechselrichter / Hybrid Ladegerät Victron Multi RS Solar 48/6000/100-450/100 5300 W 120 V - 230
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

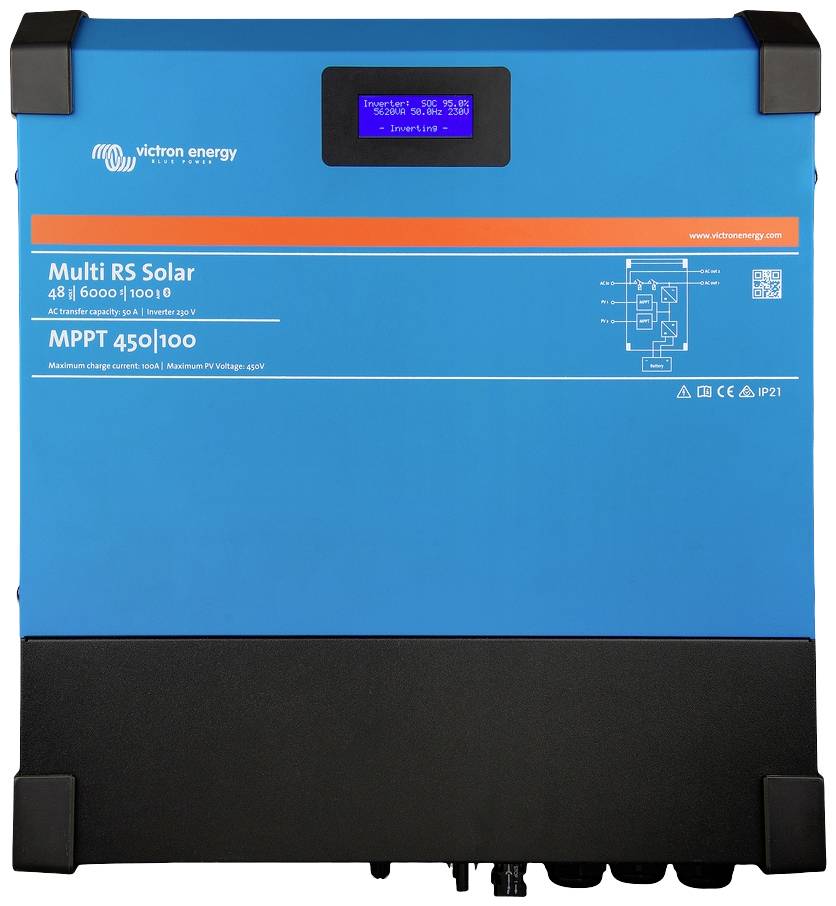

Inverter / Hybrid charger Victron Multi RS Solar 48/6000/100-450/100
- Hybrid mode – stores excess solar energy in a battery to keep it at night or in times of higher energy
- Use demand. Provides additional power from the battery when the demand exceeds the network capacity.
- Reserve mode – Switches to reserve mode during a power failure.
- Network-independent mode – works without mains connection.
- Generator Mode - Controls the generator to minimize run time. Provides additional current from the
- Battery if demand exceeds alternator capacity.
Technical specifications
- Input voltage
80 - 450 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
5300 W
- Input voltage
120 V
- Inputs
Screw terminals
- Output
Screw terminal
- Nominal load efficiency
96.5 %
- Outlets
2
- Output frequency
50 Hz
- Permanent current
25 A
- Input current (max.)
13 A
- Remote control
Yes (software)
- Weight
12.3 kg
- Width
425 mm
- Height
460 mm
- Length
125 mm
- Depth
125 mm
- Peak output power
9000 W
- Type
Wechselrichter / Hybrid Ladegerät Victron Multi RS Solar 48/6000/100-450/100
- Features
Built-in charge controller
UPS function
Dual MPP trackers
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2878188 Victron Energy Inverter Wechselrichter / Hybrid Ladegerät Victron Multi RS Solar 48/6000/100-450/100 5300 W 120 V - 230
Datasheet 2878188 Victron Energy Inverter Wechselrichter / Hybrid Ladegerät Victron Multi RS Solar 48/6000/100-450/100 5300 W 120 V - 230
User & Safety Instructions
User & Safety Instructions 2878188 Victron Energy Inverter Wechselrichter / Hybrid Ladegerät Victron Multi RS Solar 48/6000/100-450/100 5300 W 120 V - 230
User & Safety Instructions 2878188 Victron Energy Inverter Wechselrichter / Hybrid Ladegerät Victron Multi RS Solar 48/6000/100-450/100 5300 W 120 V - 230
Conformity certificate
Conformity certificate 2878188 Victron Energy Inverter Wechselrichter / Hybrid Ladegerät Victron Multi RS Solar 48/6000/100-450/100 5300 W 120 V - 230
Description
The Multi RS Solar 48/6000 is a 48 V 6 kVA inverter/charger with two independent 3 kWp PV 450 V MPPT tracker inputs for a total of 6 kWp PV.
Thanks to its high-frequency technology and a new design, this powerful inverter weighs only 11 kg. Moreover, it has an excellent degree of efficiency, a low standby power and a very quiet operation.
The display reads the battery, inverter and solar parameters. The same parameters can be accessed via the VictronConnect app using a smartphone or other Bluetooth-enabled device.
In mid-2023, the Multi RS was developed from a single MPPT tracker to a dual MPPT tracker model.
This text is machine translated.
Thanks to its high-frequency technology and a new design, this powerful inverter weighs only 11 kg. Moreover, it has an excellent degree of efficiency, a low standby power and a very quiet operation.
The display reads the battery, inverter and solar parameters. The same parameters can be accessed via the VictronConnect app using a smartphone or other Bluetooth-enabled device.
In mid-2023, the Multi RS was developed from a single MPPT tracker to a dual MPPT tracker model.
This text is machine translated.
Features
- 230 V AC / 50 Hz
- Charging current 100Adc (AC + PV)
- 450 VOC
- 2x PVin 3kW / standard 4
- Own consumption 20 W.
- Parallel connection 1x 1PH
- Sine wave voltage
- Electronic safety function
- 1 x ACIN / 103 x ACOut screw terminal 2 mm²
- Bat-connection M8
- Air cooling
- LCD
- Programmable (VE.Direct / VE.Can / Bluetooth / AUX)
- Option (data logger, Ethernet)
- IP21
Scope of delivery
- Inverter/charger
Hints
