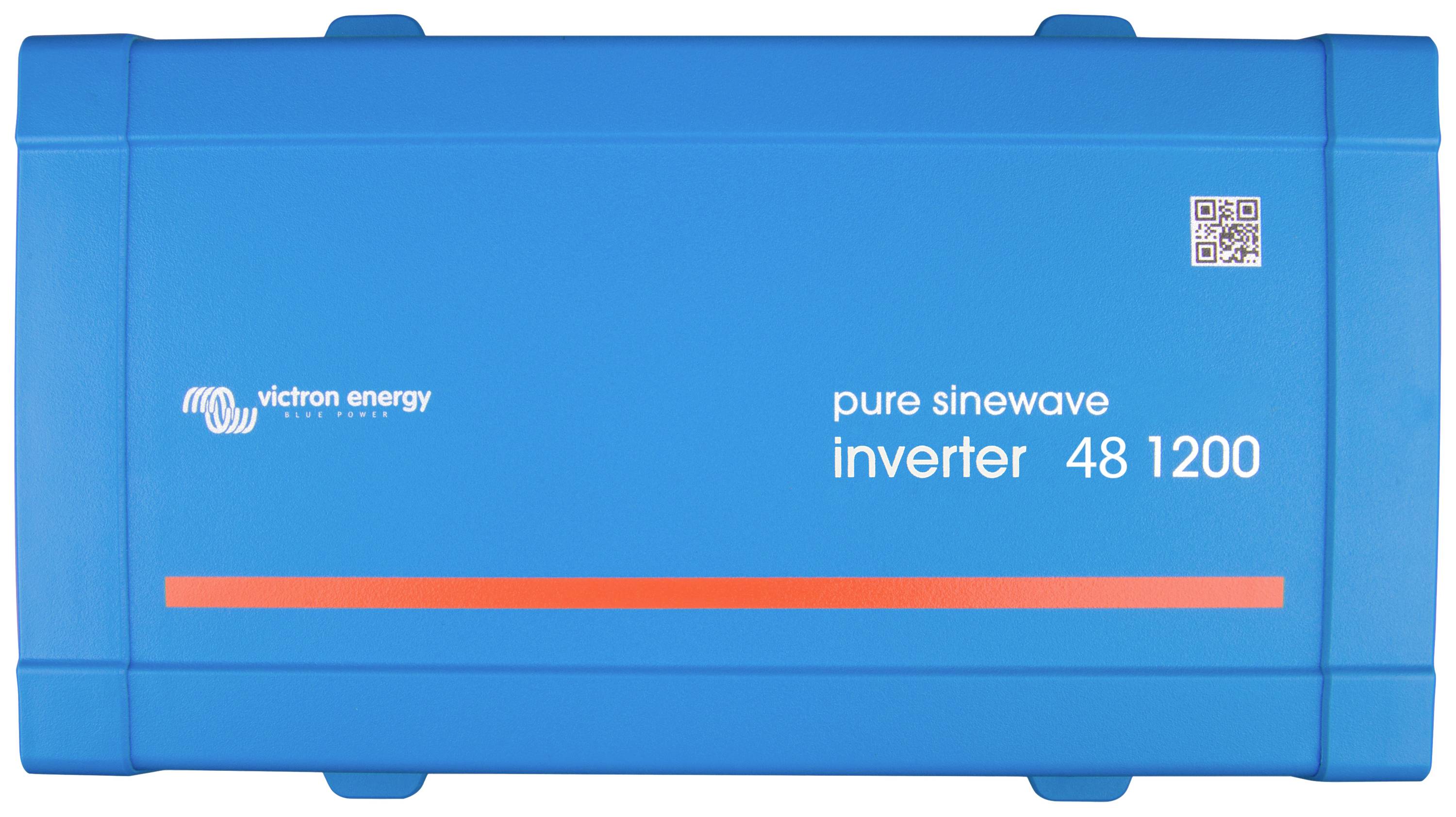

Victron Energy Inverter Wechselrichter Victron Phoenix 1200 W 48 V - 230 V Sine wave, Remote operation
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Inverter Victron Phoenix 48/1200 VE.direct IEC
- 1200 W
- 48 VDC
- 230 V AC / 50 Hz
Technical specifications
- Input voltage
36.8 - 62 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
1200 W
- Input voltage
48 V
- Inputs
Screw terminals
- Output
IEC socket
- Nominal load efficiency
92 %
- Output frequency
50 Hz
- Remote control
Optional
- Weight
7.4 kg
- Width
327 mm
- Height
117 mm
- Length
232 mm
- Peak output power
2200 W
- Standby consumption
3 W
- Type
Wechselrichter Victron Phoenix
- Features
Sine wave
Remote operation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2645180 Victron Energy Inverter Wechselrichter Victron Phoenix 1200 W 48 V - 230 V Sine wave, Remote operation
Datasheet 2645180 Victron Energy Inverter Wechselrichter Victron Phoenix 1200 W 48 V - 230 V Sine wave, Remote operation
Datasheet 2645180 Victron Energy Inverter Wechselrichter Victron Phoenix 1200 W 48 V - 230 V Sine wave, Remote operation
Datasheet 2645180 Victron Energy Inverter Wechselrichter Victron Phoenix 1200 W 48 V - 230 V Sine wave, Remote operation
User & Safety Instructions
User & Safety Instructions 2645180 Victron Energy Inverter Wechselrichter Victron Phoenix 1200 W 48 V - 230 V Sine wave, Remote operation
Conformity certificate
Conformity certificate 2645180 Victron Energy Inverter Wechselrichter Victron Phoenix 1200 W 48 V - 230 V Sine wave, Remote operation
Description
VE.Direct communication connection
The VE.Direct connection can be connected to the following devices:
With a computer (VE.Direct to USB interface cable required)
With Apple and Android smartphones, tablets, Macs or other devices (VE.Direct Bluetooth Smart dongle required).
Fully configurable:
Threshold values for triggering and resetting alarms when the battery is low.
Threshold values for switching off and restart at low battery voltage values.
Dynamic switch-off: Load-dependent cut-off threshold
Output voltage 210 - 245 V
Frequency 50 Hz or 60 Hz
Threshold value for ECO mode ON/OFF and ECO mode sensor
Monitoring:
Input and output voltage, % load and alarms
Proven reliability
The complete bridging process in addition to a ring transformer topology has been proven for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or the ambient temperature).
High switch-on power
This is required for switching on loads such as voltage transformers for LED lamps, halogen lamps or power tools.
ECO mode
In ECO mode, the inverter switches to standby as soon as the load drops below a preset value (minimum load: 15 W). In standby mode the inverter then switches on for a short period of time (adjustable default setting: Every 2.5 seconds). If the load exceeds a preset threshold value, the inverter remains switched on.
Remote-controlled on/off switching
A remote-controlled on/off switch can be connected with a two-pole plug or between the positive terminal of the battery and the left contact of the two-pole plug.
LED diagnosis
Please observe the description in the manual.
Load switching to another AC source: The automatic transfer switch
For our low-power inverters, we recommend our Filax Automatic Transfer Switch. The Filax switches quickly (in less than 20 milliseconds) to ensure uninterrupted operation of computers and other electronic devices.
This text is machine translated.
The VE.Direct connection can be connected to the following devices:
With a computer (VE.Direct to USB interface cable required)
With Apple and Android smartphones, tablets, Macs or other devices (VE.Direct Bluetooth Smart dongle required).
Fully configurable:
Threshold values for triggering and resetting alarms when the battery is low.
Threshold values for switching off and restart at low battery voltage values.
Dynamic switch-off: Load-dependent cut-off threshold
Output voltage 210 - 245 V
Frequency 50 Hz or 60 Hz
Threshold value for ECO mode ON/OFF and ECO mode sensor
Monitoring:
Input and output voltage, % load and alarms
Proven reliability
The complete bridging process in addition to a ring transformer topology has been proven for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or the ambient temperature).
High switch-on power
This is required for switching on loads such as voltage transformers for LED lamps, halogen lamps or power tools.
ECO mode
In ECO mode, the inverter switches to standby as soon as the load drops below a preset value (minimum load: 15 W). In standby mode the inverter then switches on for a short period of time (adjustable default setting: Every 2.5 seconds). If the load exceeds a preset threshold value, the inverter remains switched on.
Remote-controlled on/off switching
A remote-controlled on/off switch can be connected with a two-pole plug or between the positive terminal of the battery and the left contact of the two-pole plug.
LED diagnosis
Please observe the description in the manual.
Load switching to another AC source: The automatic transfer switch
For our low-power inverters, we recommend our Filax Automatic Transfer Switch. The Filax switches quickly (in less than 20 milliseconds) to ensure uninterrupted operation of computers and other electronic devices.
This text is machine translated.
Features
- Self-consumption 4.2 W / 0.8 W.
- IP21
- LED
- sinwave
- schutzisoliert
- AC output IEC
- DC screw terminal 10 mm²
- Option (Bluetooth dongle, BMV)
