Victron Energy Inverter Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC 1200 W 24 V - 230 V Remote operation
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

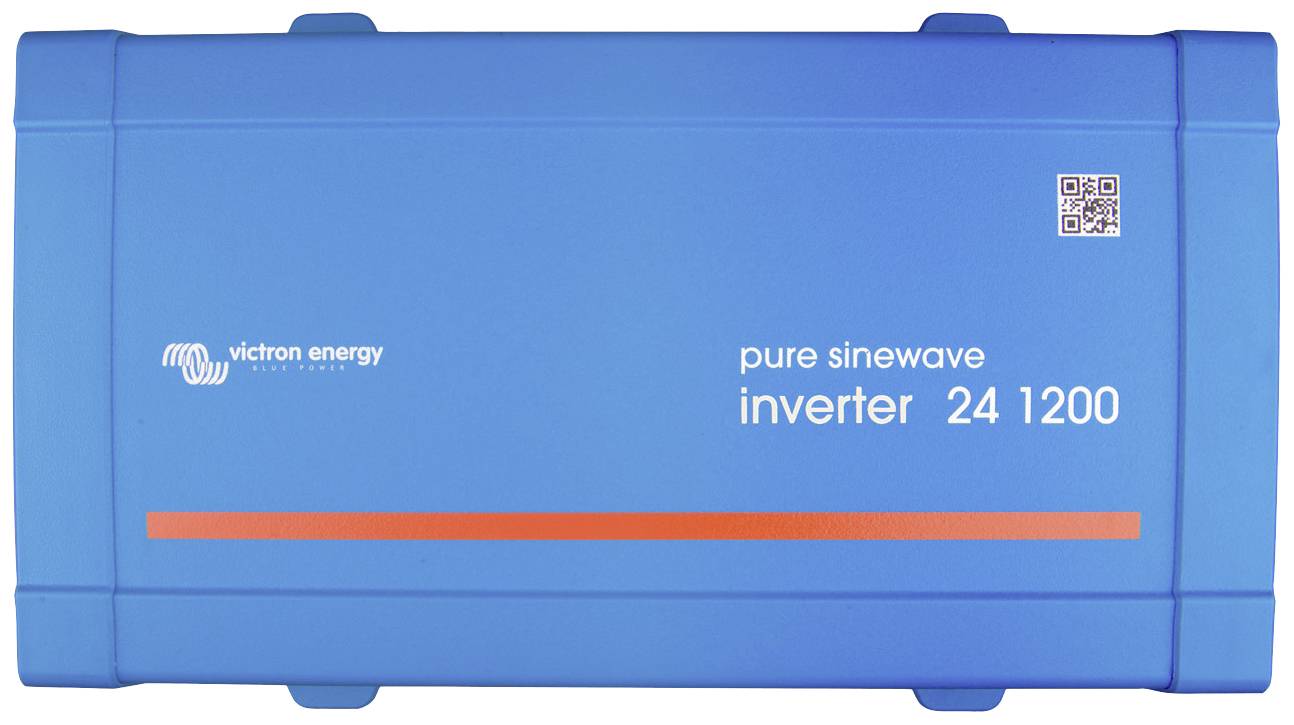

Inverter Victron Phoenix 24/1200 VE.direct IEC
- 1200 W
- 24 VDC
Technical specifications
- Input voltage
18.4 - 34 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
1200 W
- Input voltage
24 V
- Inputs
Cable
- Output
IEC socket
- Nominal load efficiency
91 %
- Outlets
1
- Output frequency
50 Hz
- Remote control
Optional
- Weight
7.4 kg
- Width
327 mm
- Height
232 mm
- Depth
117 mm
- Peak output power
2200 W
- Standby consumption
2 W
- Type
Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC
- Features
Remote operation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2878187 Victron Energy Inverter Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC 1200 W 24 V - 230 V Remote operation
Datasheet 2878187 Victron Energy Inverter Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC 1200 W 24 V - 230 V Remote operation
Datasheet 2878187 Victron Energy Inverter Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC 1200 W 24 V - 230 V Remote operation
User & Safety Instructions
User & Safety Instructions 2878187 Victron Energy Inverter Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC 1200 W 24 V - 230 V Remote operation
User & Safety Instructions 2878187 Victron Energy Inverter Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC 1200 W 24 V - 230 V Remote operation
Conformity certificate
Conformity certificate 2878187 Victron Energy Inverter Wechselrichter Victron Phoenix 24/1200 VE.Direct IEC 1200 W 24 V - 230 V Remote operation
Description
Inverters are used to supply power to domestic appliances, which need 230 V/120 V AC. For this purpose, batteries are used for "recreational applications" or "car" batteries, which are rated at 12 V, 24 V or 48 V DC.
This text is machine translated.
This text is machine translated.
Features
- 230 V AC / 50 Hz
- Own power draw 9 W / 2 W
- IP20
- LED
- Sine wave voltage
- Electronic safety function
- IEC AC plug socket
- DC cable 1.5m
- Option (BMV)
Scope of delivery
- Inverter
