Victron Energy Inverter Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko 1200 W 48 V - 230 V Sine wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

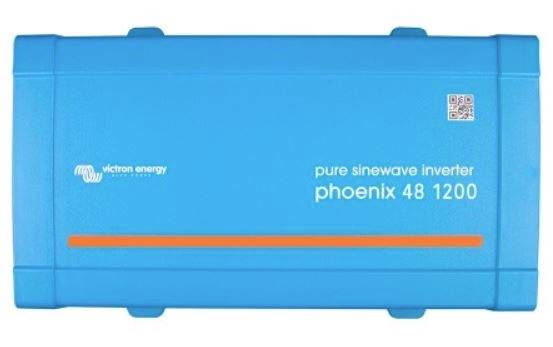

Inverter Victron Phoenix 48/1200 VE.direct Schuko
- 1200 W
- 48 VDC
Technical specifications
- Input voltage
36.8 - 62 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
1200 W
- Input voltage
48 V
- Inputs
DC terminals
- Output
PG socket
- Output frequency
50 Hz
- Remote control
No
- Weight
7.4 kg
- Width
327 mm
- Height
232 mm
- Length
32.7 cm
- Depth
117 mm
- Peak output power
2200 W
- Standby consumption
1.5 W
- Type
Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko
- Features
Sine wave
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2878190 Victron Energy Inverter Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko 1200 W 48 V - 230 V Sine wave
Datasheet 2878190 Victron Energy Inverter Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko 1200 W 48 V - 230 V Sine wave
Datasheet 2878190 Victron Energy Inverter Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko 1200 W 48 V - 230 V Sine wave
Datasheet 2878190 Victron Energy Inverter Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko 1200 W 48 V - 230 V Sine wave
User & Safety Instructions
User & Safety Instructions 2878190 Victron Energy Inverter Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko 1200 W 48 V - 230 V Sine wave
Conformity certificate
Conformity certificate 2878190 Victron Energy Inverter Wechselrichter Victron Phoenix 48/1200 VE.direct Schuko 1200 W 48 V - 230 V Sine wave
Description
Inverters are used to supply power to domestic appliances, which need 230 V/120 V AC. For this purpose, batteries are used for "recreational applications" or "car" batteries, which are rated at 12 V, 24 V or 48 V DC.
This text is machine translated.
This text is machine translated.
Features
- 230 V AC / 50 Hz
- Own power draw 7.0 W / 1.5 W
- IP21
- LED
- Sine wave voltage
- Electronic safety function
- Earthing contact socket-outlet
- DC screw terminal
- Option (Bluetooth dongle, BMV)
Scope of delivery
- Inverter
