Victron Energy Inverter Wechselrichter Victron Phoenix 48/375 VE.Direct IEC 375 W 48 V - 230 V Remote operation
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

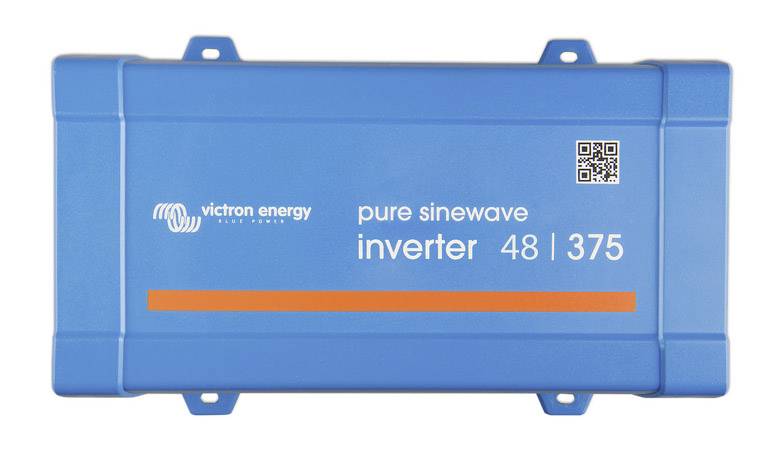

Inverter Victron Phoenix 48/375 VE.direct IEC
- 375 W
- 48 VDC
Technical specifications
- Input voltage
36.8 - 62 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V
375 W
- Input voltage
48 V
- Inputs
Screw terminals
- Output
IEC socket
- Output frequency
50 Hz
- Remote control
Optional
- Weight
3 kg
- Width
260 mm
- Height
165 mm
- Depth
86 mm
- Peak output power
700 W
- Standby consumption
0.8 W
- Type
Wechselrichter Victron Phoenix 48/375 VE.Direct IEC
- Features
Remote operation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2878189 Victron Energy Inverter Wechselrichter Victron Phoenix 48/375 VE.Direct IEC 375 W 48 V - 230 V Remote operation
Datasheet 2878189 Victron Energy Inverter Wechselrichter Victron Phoenix 48/375 VE.Direct IEC 375 W 48 V - 230 V Remote operation
Datasheet 2878189 Victron Energy Inverter Wechselrichter Victron Phoenix 48/375 VE.Direct IEC 375 W 48 V - 230 V Remote operation
Datasheet 2878189 Victron Energy Inverter Wechselrichter Victron Phoenix 48/375 VE.Direct IEC 375 W 48 V - 230 V Remote operation
User & Safety Instructions
User & Safety Instructions 2878189 Victron Energy Inverter Wechselrichter Victron Phoenix 48/375 VE.Direct IEC 375 W 48 V - 230 V Remote operation
Conformity certificate
Conformity certificate 2878189 Victron Energy Inverter Wechselrichter Victron Phoenix 48/375 VE.Direct IEC 375 W 48 V - 230 V Remote operation
Description
Inverters are used to supply power to domestic appliances, which need 230 V/120 V AC. For this purpose, batteries are used for "recreational applications" or "car" batteries, which are rated at 12 V, 24 V or 48 V DC.
This text is machine translated.
This text is machine translated.
Features
- 230 V AC / 50 Hz
- Own power draw 4.2 W / 0.8 W
- IP21
- LED
- Sine wave voltage
- Electronic safety function
- AC IEC socket
- DC screw terminal 10 mm²
- Option (Bluetooth dongle, BMV)
Scope of delivery
- Inverter
