Victron Energy LYN034160210 Battery management system
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

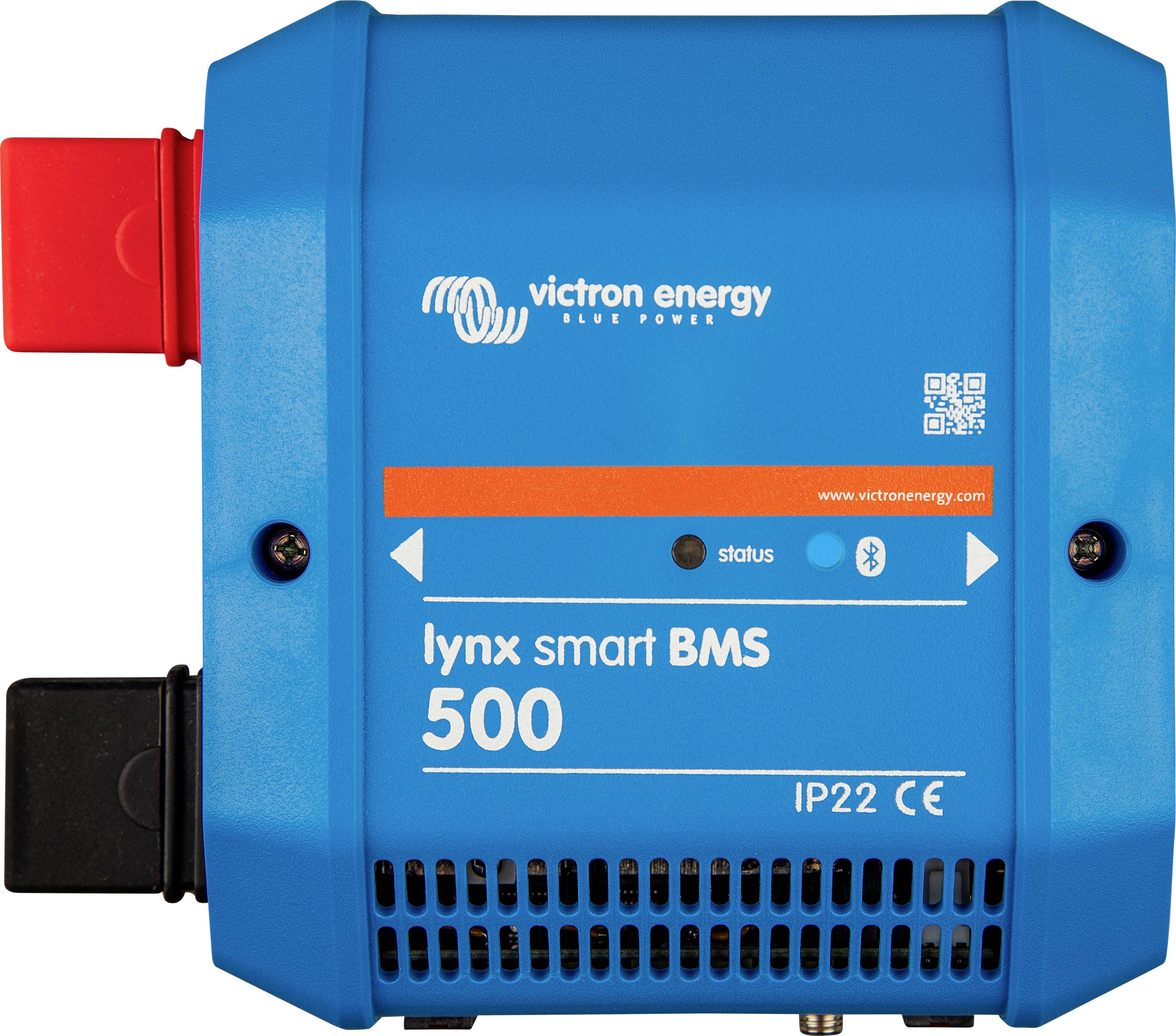

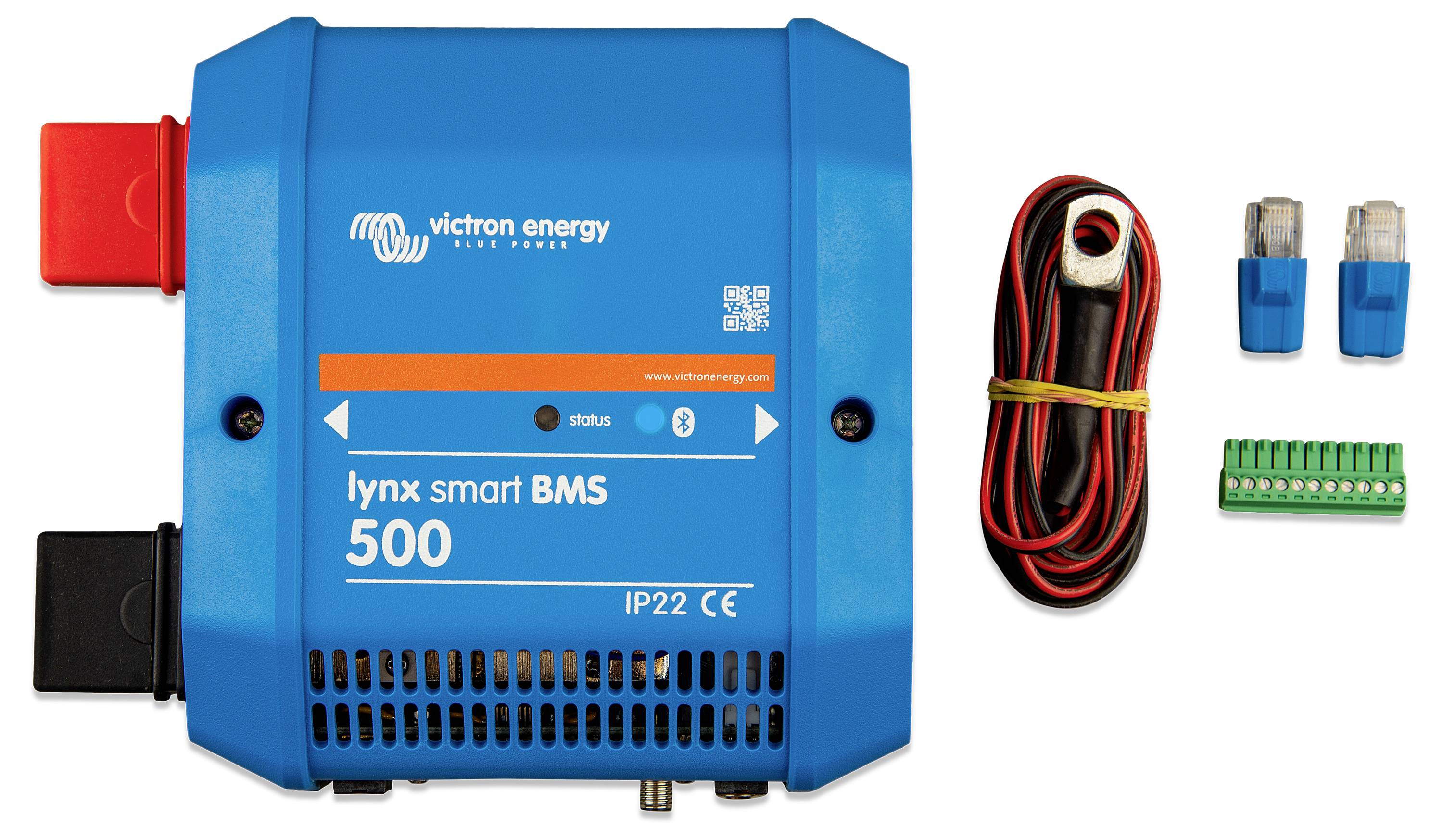

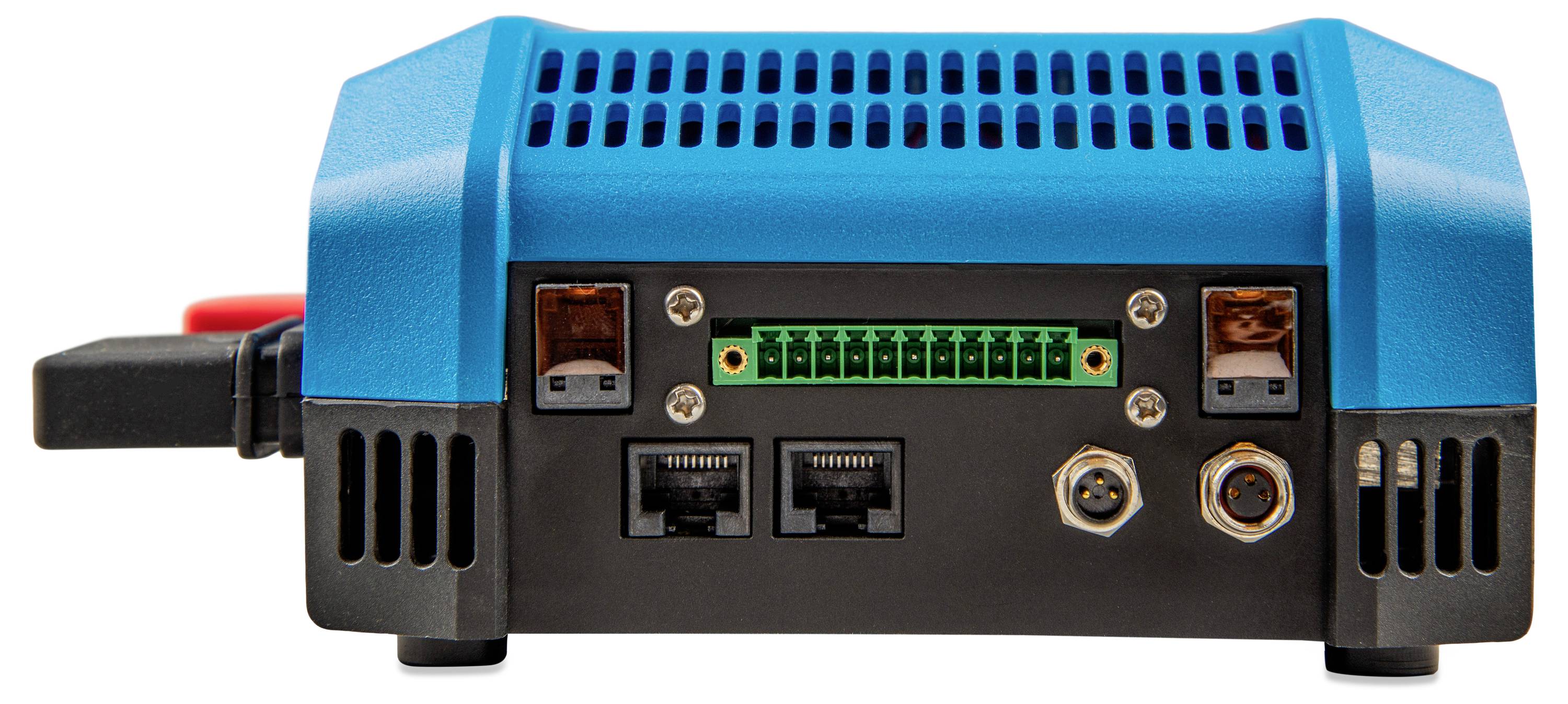

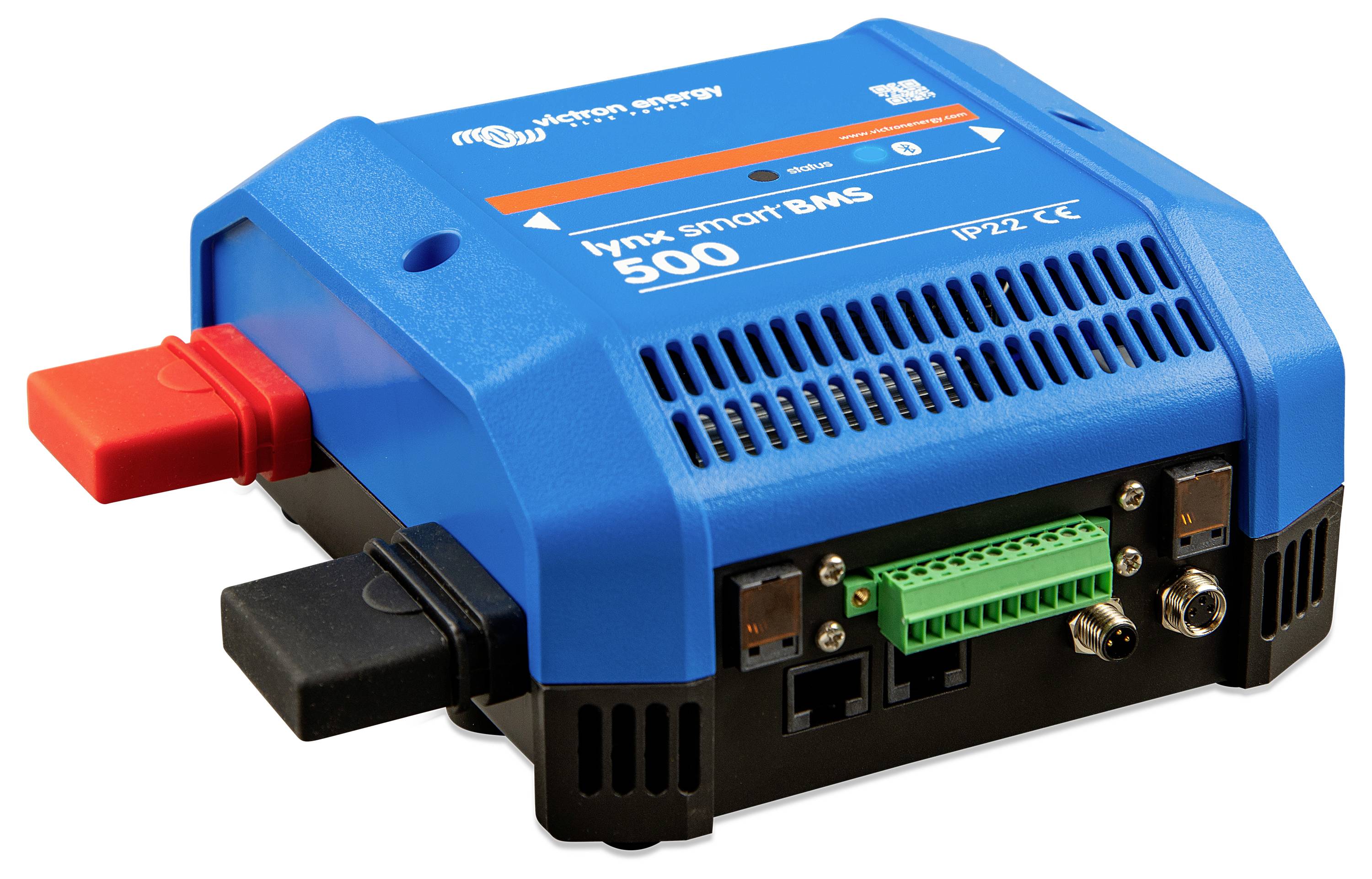

Victron Lynx Smart BMS 500 battery management system (M10)
- Maximum current rating (non-disruptive): 500 A.
- Maximum peak current: 600 A for 5 minutes
- Power consumption during operation: Approx. 2.6 W (217 mA at 12 V)
- Power consumption in standby mode: Approx. 0.6 W (50 mA at 12 V)
- Pre-charging switching prevents high inrush current in case of capacitive loads like inverter
- No external pre-chargers required
- Secondary safety system protects the battery if the primary controls fail
- Maximum rated current of AUX output: 1.1 A non-disruptive, protected by resettable fuse
- Programmable relay for alarm and control functions, including alternator control
- Real-time monitoring of cell voltages and temperatures via the VictoronConnect APP
- Control via Bluetooth or VE.Can with GX devices (e.g. Cerbo GX or Ecrano GX)
- Monitor Lynx Distributor fuses with blown fuses alert
- Parallel redundancy: Allows you to add up to 5 Lynx BMS systems for a redundant battery system
- ATC/ATD contacts to control Victron chargers, inverters and other consumers
- Programmable relay (SPDT) for controlling external systems such as generators or alarm systems
- Operating temperature range: -40°C to +60°C
- Compatible with all M10 Lynx products and allows for the integration of additional battery modules
- Integration with the Victron GX system (Cerbo GX, Ekrano GX) for extended control and monitoring of the battery systems
Technical specifications
- Product type
Battery management system
- Length
180 mm
- Width
190 mm
- Height
80 mm
- Material
Acrylonitrile butadiene styrene
Copper
- Dim
(L x W x H) 180 x 190 x 80 mm
- Factory colour
Blue
- Weight
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3454122 Victron Energy LYN034160210 Battery management system
User & Safety Instructions
User & Safety Instructions 3454122 Victron Energy LYN034160210 Battery management system
Conformity certificate
Conformity certificate 3454122 Victron Energy LYN034160210 Battery management system
Description
The Victron Lynx Smart BMS 500 (M10) is an advanced battery management system (BMS) for lithium iron phosphate batteries (LiFePO4) from the Victron Lithium NG series. It provides a comprehensive safety and monitoring feature for the Victron lithium batteries to ensure efficient and safe use of the batteries. The system is designed for a maximum rated current of 500 A, without interruption, and ensures a safe disconnection of the battery when needed. The Lynx Smart BMS 500 provides easy access to real-time monitoring via the VictronConnect APP and VE.Can communication to monitor and control system voltage, charge state and other important parameters. The system supports integration with larger battery systems and offers the possibility of parallel connection for redundancy and expansion.
This text is machine translated.
This text is machine translated.
Features
- Incl. BMS, battery monitor
- With status-LED and Bluetooth-LED
- Can communicate with the VictronConnect APP
- Can be accessed via VE.Can . With an GX
