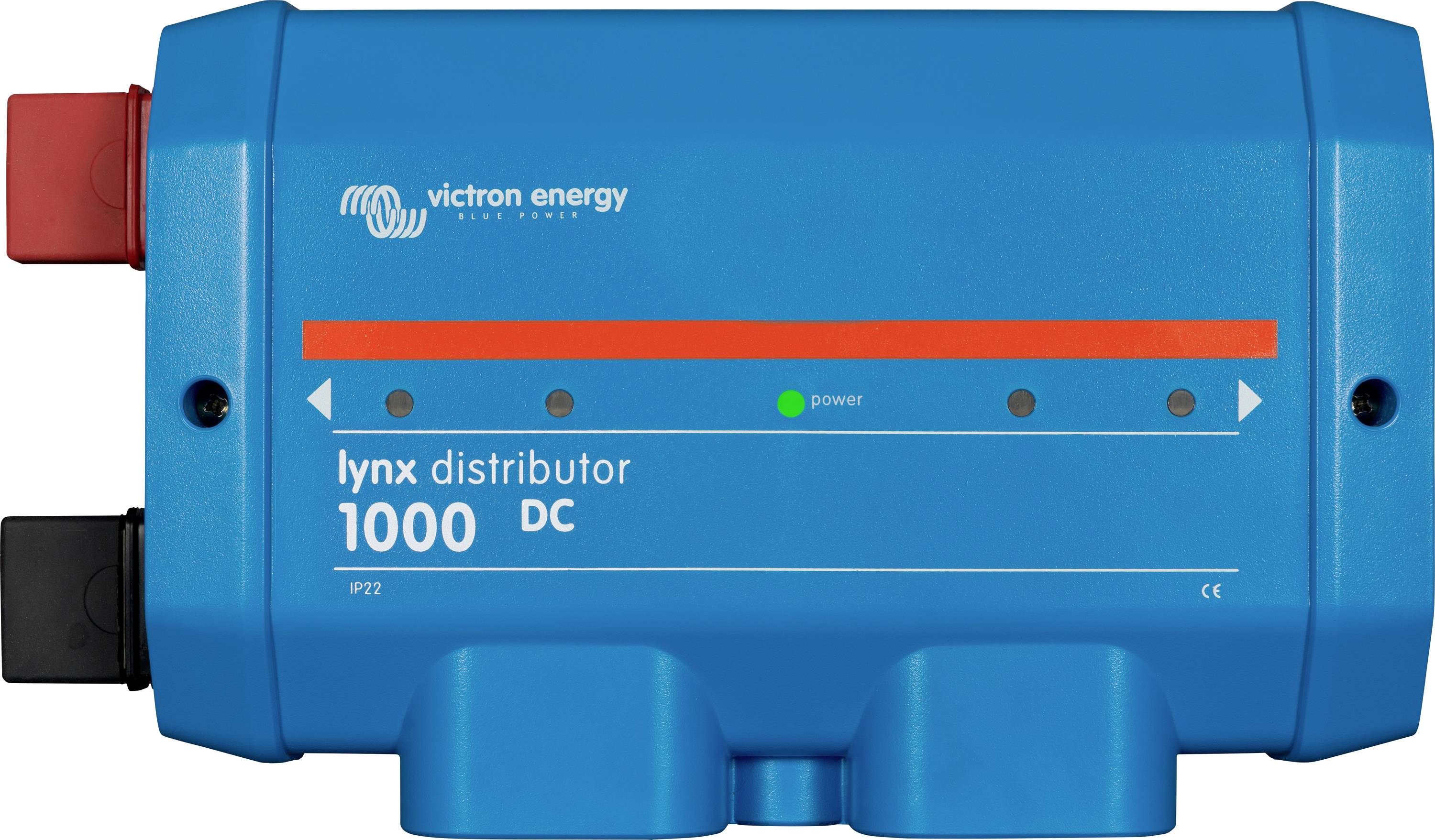

DC busbar Victron Lynx distributor (M10)
- A modular DC busbar with slots for four DC fuses.
Technical specifications
- Product type
Busbar
- Dim
(W x H x D) 80 x 170 x 290 mm
- Weight
2.2 kg
- Factory colour
Blue
- Content
1 pc(s)
- Width
80 mm
- Height
170 mm
- Depth
290 mm
- Cable length
0.4 m
- Cable standard
H03VV-F 3G 0,75 mm²
- Version
Cable
- Type A
RJ11 plug
- Type B
RJ11 plug
IP20
- Cable use
Current
- Cable features
Round
- Connector
Pin contact
- Connector version
push-fit
- Used at
Internal
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2894486 Victron Energy LYN060102010 Lynx Distributor (M10) Busbar
Datasheet 2894486 Victron Energy LYN060102010 Lynx Distributor (M10) Busbar
User & Safety Instructions
User & Safety Instructions 2894486 Victron Energy LYN060102010 Lynx Distributor (M10) Busbar
Description
The Lynx system is a modular DC busbar system for connecting batteries and DC devices and for the
Security and battery monitoring. It consists of the following modules:
Lynx Power in
Lynx Shunt
Lynx Distributor
You can use the Lynx Distributor or Lynx Power In with or without Lynx Shunt.
Contains a positive and negative busbar and provides a connection for 4 individual DC device circuits, loads or DC groups. It has space for individual DC fuses per DC group.
There is an optional feature of an LED for each fuse that indicates whether the fuse has blown.
If you want to use the backup indicator LEDs on the Lynx distributor, you also need to connect to a Lynx shunt.
The Lynx shunt contains the wide input power supply (8 to 70 VDC) required to output the required 5 V power supply (4.5 V-5.5 V) to the Lynx distributor board.
RJ11 connection cables are used to connect the Lynx shunt to the splitter. This RJ11 cable is delivered with the distributor in the box. There are two connectors on the Lynx shunt, and it is possible to use both.
If everything is OK, only the central LED is green; if a fuse is blown (or missing), the central and fuse circuit LEDs are red. If you do not use all the connection points in your DC distribution,
May need to insert dummy fuses to clear the red LEDs.
This text is machine translated.
Security and battery monitoring. It consists of the following modules:
Lynx Power in
Lynx Shunt
Lynx Distributor
You can use the Lynx Distributor or Lynx Power In with or without Lynx Shunt.
Contains a positive and negative busbar and provides a connection for 4 individual DC device circuits, loads or DC groups. It has space for individual DC fuses per DC group.
There is an optional feature of an LED for each fuse that indicates whether the fuse has blown.
If you want to use the backup indicator LEDs on the Lynx distributor, you also need to connect to a Lynx shunt.
The Lynx shunt contains the wide input power supply (8 to 70 VDC) required to output the required 5 V power supply (4.5 V-5.5 V) to the Lynx distributor board.
RJ11 connection cables are used to connect the Lynx shunt to the splitter. This RJ11 cable is delivered with the distributor in the box. There are two connectors on the Lynx shunt, and it is possible to use both.
If everything is OK, only the central LED is green; if a fuse is blown (or missing), the central and fuse circuit LEDs are red. If you do not use all the connection points in your DC distribution,
May need to insert dummy fuses to clear the red LEDs.
This text is machine translated.
Scope of delivery
- Lynx Distributor
- User manual.
