Victron Energy LYN060404010 Lynx Class-T Power In (M10) Busbar system
EAN:
Part number:
Item no:
Highlights & Details

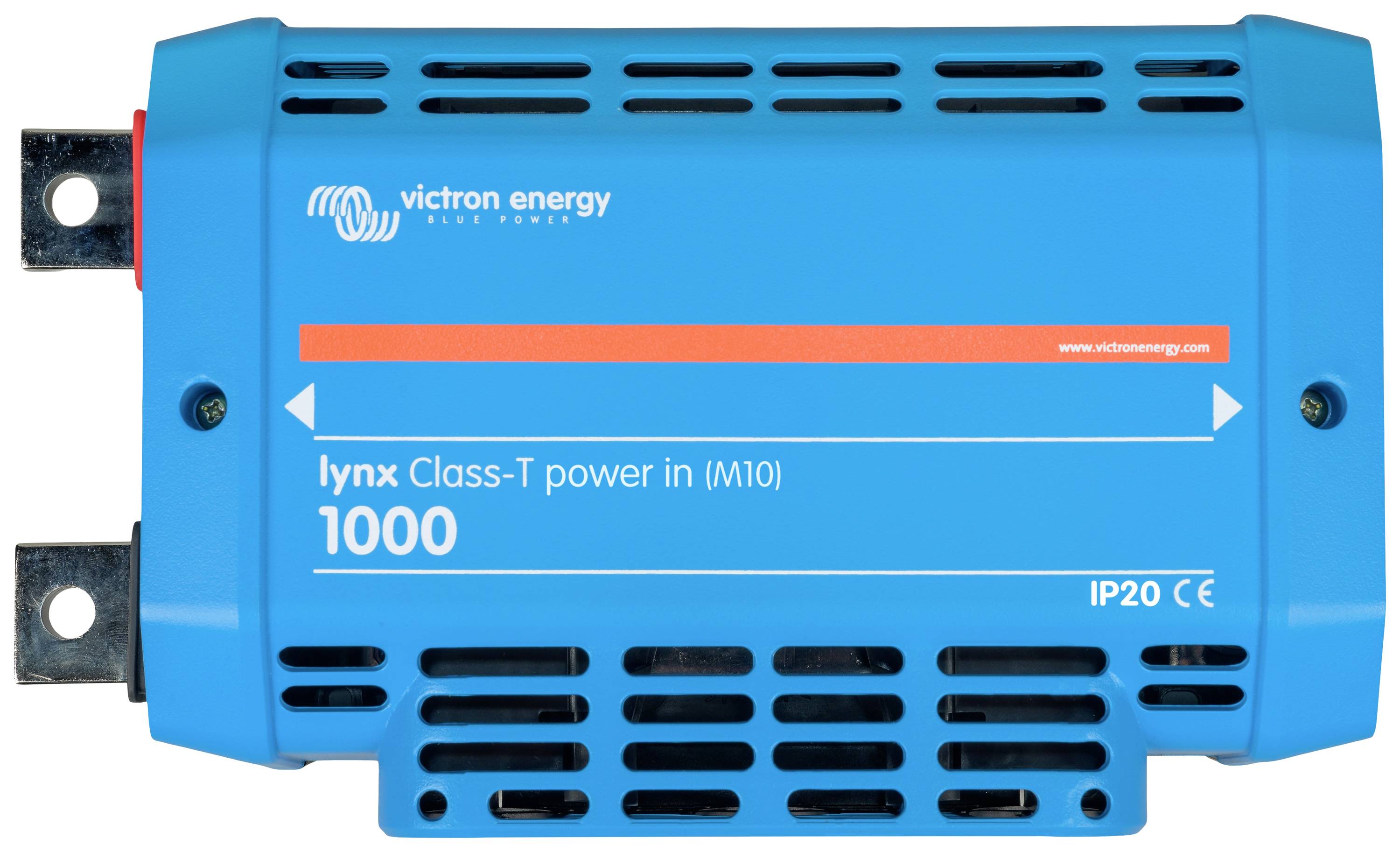

Victron Lynx Class-T Power In bus system (M10)
- Voltage range 9 - 60 VDC
- Nominal current 1000 ADC uninterrupted
- The Lynx Class-T Power In connects and secures up to two strands of lithium batteries.
Technical specifications
- Product type
Busbar system
- Dim
(W x H x D) 279 x 97 x 169 mm
- Weight
2500 g
- Factory colour
Blue
- Content
1 pc(s)
- Width
279 mm
- Height
97 mm
- Depth
169 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2894508 Victron Energy LYN060404010 Lynx Class-T Power In (M10) Busbar system
User & Safety Instructions 2894508 Victron Energy LYN060404010 Lynx Class-T Power In (M10) Busbar system
Description
The Lynx Class-T Power In connects and secures up to two strands of lithium batteries. It has a positive and negative busbar, connections for two Class-T fuses and a connection for grounding the DC system. The Class T fuses, available in 225 A, 250 A, 350 A and 400 A versions, are available separately.
For installations with three or more strands of lithium batteries, you can use multiple Lynx Class-T modules. As a core component of the Lynx distribution system, the Lynx Class-T integrates seamlessly with all other M10 Lynx products.
This text is machine translated.
For installations with three or more strands of lithium batteries, you can use multiple Lynx Class-T modules. As a core component of the Lynx distribution system, the Lynx Class-T integrates seamlessly with all other M10 Lynx products.
This text is machine translated.
Features
- Protection class: IP20
Scope of delivery
- Lynx class T-Power
- User manual.
