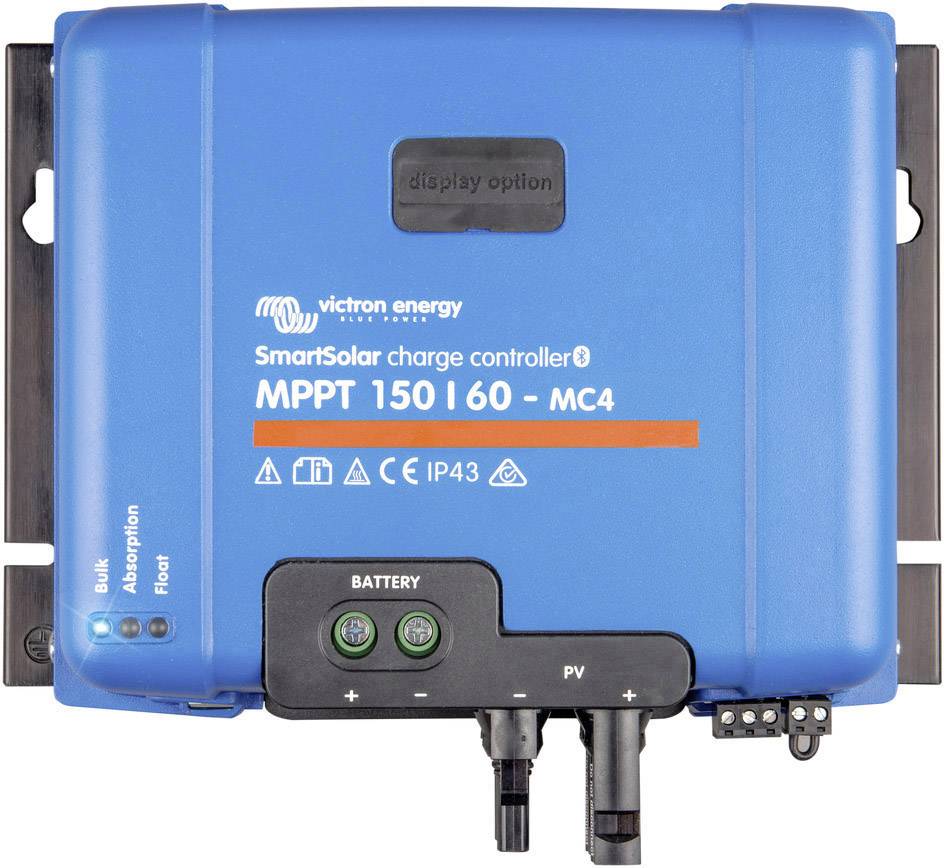

Victron Energy MPPT 150/60-MC4 Charge controller MPPT 12 V, 24 V, 48 V 60 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller MPPT solar 150/60 Victron Smart-MC4
- Built-in Bluetooth Smart: no dongle required
- Ultra-fast Maximum Power Point Tracking (MPPT)
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
48 V
- Charging current (max.)
60 A
- Control type
MPPT
- Dim
(L x W x H) 250 x 215 x 250 mm
- Weight
3 kg
- Width
215 mm
- Height
250 mm
- Length
250 mm
- Depth
95 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924437 Victron Energy MPPT 150/60-MC4 Charge controller MPPT 12 V, 24 V, 48 V 60 A
User & Safety Instructions
User & Safety Instructions 1924437 Victron Energy MPPT 150/60-MC4 Charge controller MPPT 12 V, 24 V, 48 V 60 A
Description
Ultra-fast Maximum Power Point Tracking (MPPT)
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Advanced Maximum Power Point Detection in case of partial shading
In the event of a partial shading on the current voltage curve two or more points maximum performance (MPP) must be available. Conventional MPPTs tend to a local MPP. This, however, is probably not the best MPP. The innovative algorithm of the smart solar device is always maximize the energy yield, to the optimum MPP.
High efficiency
No cooling fan. Maximum efficiency at over 98%.
Flexible charging algorithms
Fully programmable charging algorithm as well as eight pre-programd algorithms that can be connected via a rotary knob to select.
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against short-circuit and PV PV polarity reversal. PV-Reverse current protection.
Internal temperature sensor
Balances constant trickle charging voltages and temperature.
Built-in Bluetooth Smart: no dongle required
The wireless solution for set-up, monitor and update of the controller with the help of Appleund Android smartphones, tablets or other devices.
VE. Direct
For a wired data connection with a Color Control GX, other GX-products, a PC or other devices.
Remote-controlled on/off switching
For example, for connecting to a VE. BUS BMS
Programmable Relay
You can program (including with a smartphone or other events to trigger an alarm).
Optional: plug-in LCD display
Simply remove the rubber seal, which protects the connector on the front side of the controller and plug the display.
This text is machine translated.
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Advanced Maximum Power Point Detection in case of partial shading
In the event of a partial shading on the current voltage curve two or more points maximum performance (MPP) must be available. Conventional MPPTs tend to a local MPP. This, however, is probably not the best MPP. The innovative algorithm of the smart solar device is always maximize the energy yield, to the optimum MPP.
High efficiency
No cooling fan. Maximum efficiency at over 98%.
Flexible charging algorithms
Fully programmable charging algorithm as well as eight pre-programd algorithms that can be connected via a rotary knob to select.
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against short-circuit and PV PV polarity reversal. PV-Reverse current protection.
Internal temperature sensor
Balances constant trickle charging voltages and temperature.
Built-in Bluetooth Smart: no dongle required
The wireless solution for set-up, monitor and update of the controller with the help of Appleund Android smartphones, tablets or other devices.
VE. Direct
For a wired data connection with a Color Control GX, other GX-products, a PC or other devices.
Remote-controlled on/off switching
For example, for connecting to a VE. BUS BMS
Programmable Relay
You can program (including with a smartphone or other events to trigger an alarm).
Optional: plug-in LCD display
Simply remove the rubber seal, which protects the connector on the front side of the controller and plug the display.
This text is machine translated.
Features
- Built-in Bluetooth Smart: no dongle required, VE. Direct, programmable relay, optional: plug-in LCD display
