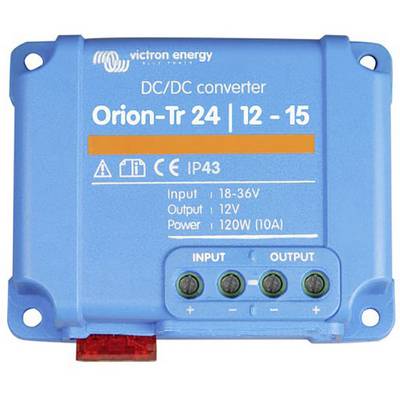

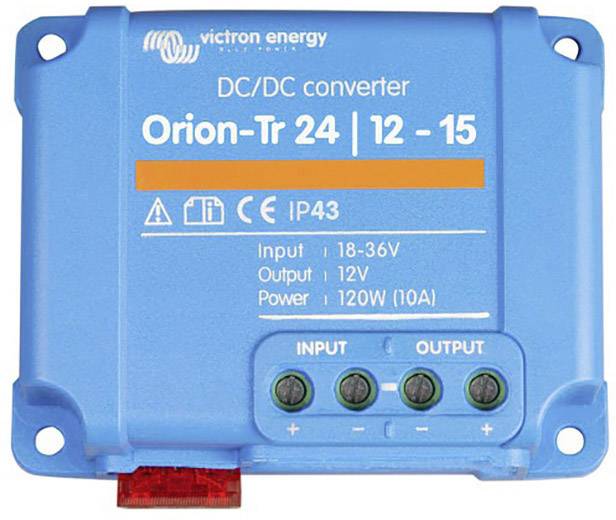

Victron Energy Orion-Tr 24/12-15 DC/DC converter 24 V DC - 12.5 V DC/20 A 120 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC converter orion-tr uninsulated
- High level of performance
- Reliable and durable
- Easy to set up
Technical specifications
- Continuous current: 15 A
- Current without loads< 35 mA
- Max. Cable cross-section 6 mm², AWG 10
- Temperature range: -20 to +55 °C
- Protection class IP43 (screw terminals downwards)
- Additional plug-in fuse
- Input voltage
18, 35 V
- Product type
DC/DC converter
- Used at
Fixed
- No. of outputs
1 x
120 W
- Input voltage
24 V DC
- Output voltage
12.5 V DC
- Connections
Screw terminals
- Max. output current
20 A
- Output current (max.) - rounded
20 A
- Dim
(L x W x H) 94 x 73 x 45 mm
- Weight
250 g
- Content
1 pc(s)
- Width
73 mm
- Height
45 mm
- Length
94 mm
- Type
Orion-Tr 24/12-15
- Efficiency
97 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1666863 Victron Energy Orion-Tr 24/12-15 DC/DC converter 24 V DC - 12.5 V DC/20 A 120 W
User & Safety Instructions
User & Safety Instructions 1666863 Victron Energy Orion-Tr 24/12-15 DC/DC converter 24 V DC - 12.5 V DC/20 A 120 W
Conformity certificate
Conformity certificate 1666863 Victron Energy Orion-Tr 24/12-15 DC/DC converter 24 V DC - 12.5 V DC/20 A 120 W
Description
Performance and reliability of the Orion-Tr. High level of performance for over 95% charging efficiency and synchronous. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- High level of performance
- Robust and compact
- Good temperature characteristics
- Reliable and durable
- Easy to set up
- No maintenance required
- Housing with mounting holes
- Meets numerous standards
Scope of delivery
- Converter Orion-Tr
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
