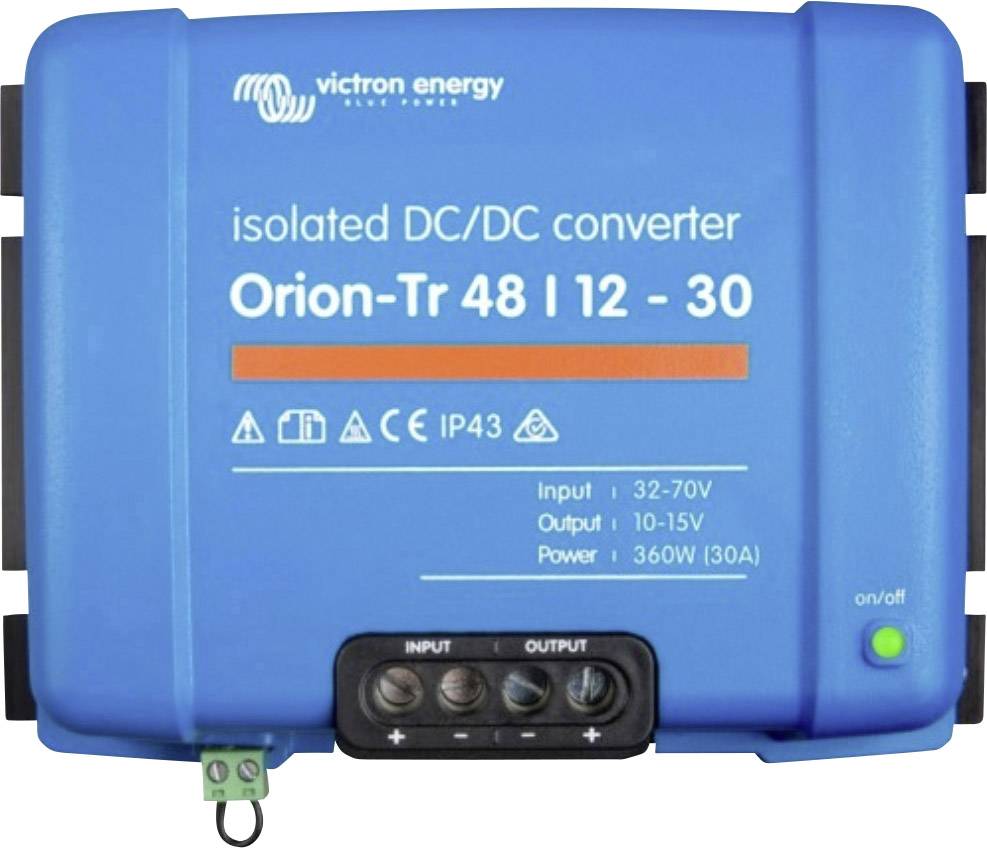

Victron Energy Orion-Tr 48/12-30A DC/DC converter 48 V DC - 12 V DC/40 A 430 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC converter orion-tr insulated
- Remote-controlled on/off switching
- High level of performance
- Reliable and durable
- Easy to set up
Technical specifications
- Short-circuit output current 60 A
- Continuous current: 30 A
- Current without loads< 80 mA
- Max. Cable cross-section 13 mm², AWG 6
- Temperature range: -20 to +55 °C
- Protection class IP43 (screw terminals downwards)
- Input voltage
40, 70 V
- Product type
DC/DC converter
- Used at
Fixed
- No. of outputs
1 x
430 W
- Input voltage
48 V DC
- Output voltage
12 V DC
- Connections
Screw terminals
- Max. output current
40 A
- Output current (max.) - rounded
40 A
- Dim
(L x W x H) 186 x 130 x 80 mm
- Weight
1600 g
- Content
1 pc(s)
- Width
130 mm
- Height
80 mm
- Length
186 mm
- Type
Orion-Tr 48/12-30A
- Efficiency
87 %
- Factory colour
Blue
- Efficiency (max.)
87 %
- Input voltage (max.)
70 V
- Min. input voltage
40 V
- Operating temperature (min.)
-20 °C
- Output current (min.)
30 A
- Output voltages
12.2 V
- Output voltage (max.)
15 V
- Output voltage (min.)
10 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1666874 Victron Energy Orion-Tr 48/12-30A DC/DC converter 48 V DC - 12 V DC/40 A 430 W
User & Safety Instructions
User & Safety Instructions 1666874 Victron Energy Orion-Tr 48/12-30A DC/DC converter 48 V DC - 12 V DC/40 A 430 W
Description
Performance and reliability of the Orion-Tr. High level of performance for over 95% charging efficiency and synchronous. Simple installation and no maintenance required.
The remote-controlled on/off switching makes a high current switch at the input wiring superfluous. The remote-controlled on/Aus-Anschluss can be used with an Energy Saving Switch or by the run/stop switch of the motor control.
It can be an unlimited number of devices in parallel.
This text is machine translated.
The remote-controlled on/off switching makes a high current switch at the input wiring superfluous. The remote-controlled on/Aus-Anschluss can be used with an Energy Saving Switch or by the run/stop switch of the motor control.
It can be an unlimited number of devices in parallel.
This text is machine translated.
Features
- Remote-controlled on/off switching
- Adjustable output voltage
- Circuit breaker
- Can be parallel switching
- Can be used as charging device
- Entrance safety
- High level of performance
- Robust and compact
- Good temperature characteristics
- Reliable and durable
- Easy to set up
- No maintenance required
- Housing with mounting holes
- Galvanic separation 200 V/DC between input, output and housing
- Meets numerous standards
Scope of delivery
- Converter Orion-Tr
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
