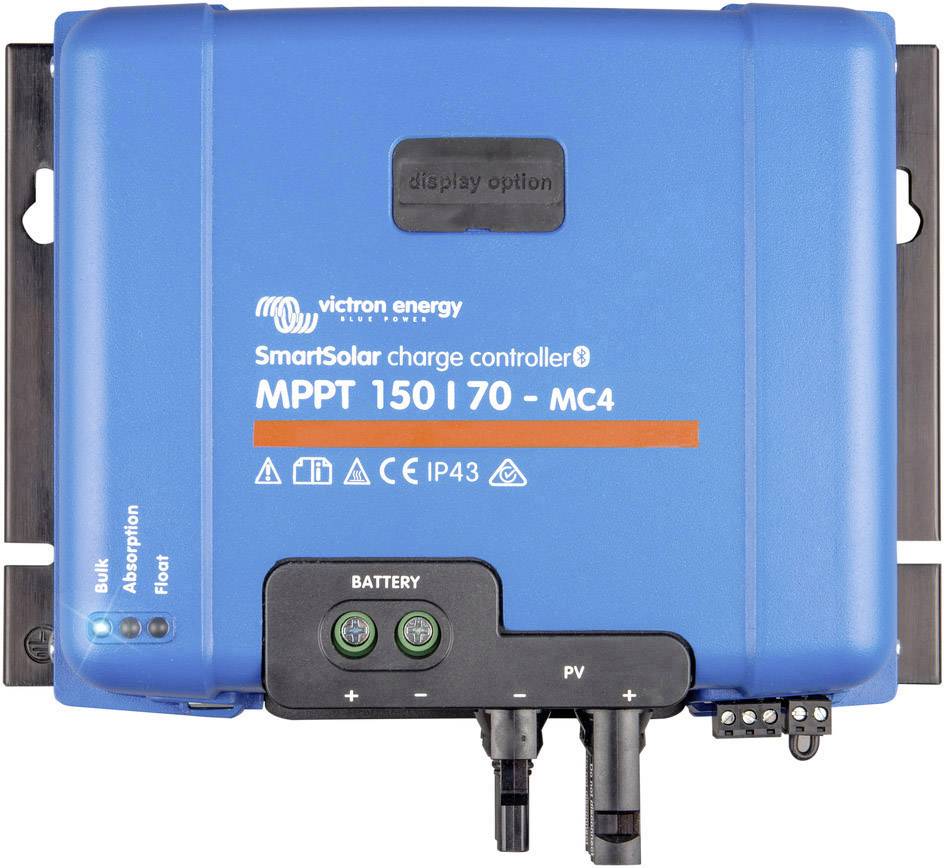

Victron Energy SCC010070300 Charge controller MPPT 12 V, 24 V, 48 V 70 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller MPPT solar 150/70 Victron blue-MC4
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading
- High efficiency
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
48 V
- Module power (max.)
4000 Wp
- Temperature range
-30 °C to +60 °C
- Charging current (max.)
70 A
- Control type
MPPT
- Dim
(W x H x D) 250 x 215 x 95 mm
- Weight
3 kg
- Module load (max.)
50 A
- Width
250 mm
- Height
215 mm
- Depth
95 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924435 Victron Energy SCC010070300 Charge controller MPPT 12 V, 24 V, 48 V 70 A
User & Safety Instructions
User & Safety Instructions 1924435 Victron Energy SCC010070300 Charge controller MPPT 12 V, 24 V, 48 V 70 A
Description
Ultra-fast Maximum Power Point Tracking (MPPT)
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%. Advanced Maximum Power Point Detection in case of partial shading. In the event of a partial shading on the current voltage curve two or more points
Maximum performance (MPP) must be available. Conventional MPPTs tend to a local MPP. This, however, is probably not the best MPP. The innovative algorithm of the blue solar device is always maximize the energy yield, to the optimum MPP.
High efficiency
No cooling fan. Maximum efficiency at over 98%.
Flexible charging algorithms
Fully programmable charging algorithm as well as eight pre-programd algorithms that can be connected via a rotary knob to select.
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against short-circuit and PV PV polarity reversal. PV-Reverse current protection.
Internal temperature sensor
Balances constant trickle charging voltages and temperature.
This text is machine translated.
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%. Advanced Maximum Power Point Detection in case of partial shading. In the event of a partial shading on the current voltage curve two or more points
Maximum performance (MPP) must be available. Conventional MPPTs tend to a local MPP. This, however, is probably not the best MPP. The innovative algorithm of the blue solar device is always maximize the energy yield, to the optimum MPP.
High efficiency
No cooling fan. Maximum efficiency at over 98%.
Flexible charging algorithms
Fully programmable charging algorithm as well as eight pre-programd algorithms that can be connected via a rotary knob to select.
Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against short-circuit and PV PV polarity reversal. PV-Reverse current protection.
Internal temperature sensor
Balances constant trickle charging voltages and temperature.
This text is machine translated.
